FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
374360
For “Commander Wide Track” and “Commander Trex UTV” Track Kits
MOUNTING INSTRUCTIONS
11
Front of
the ATV
Front of
the ATV

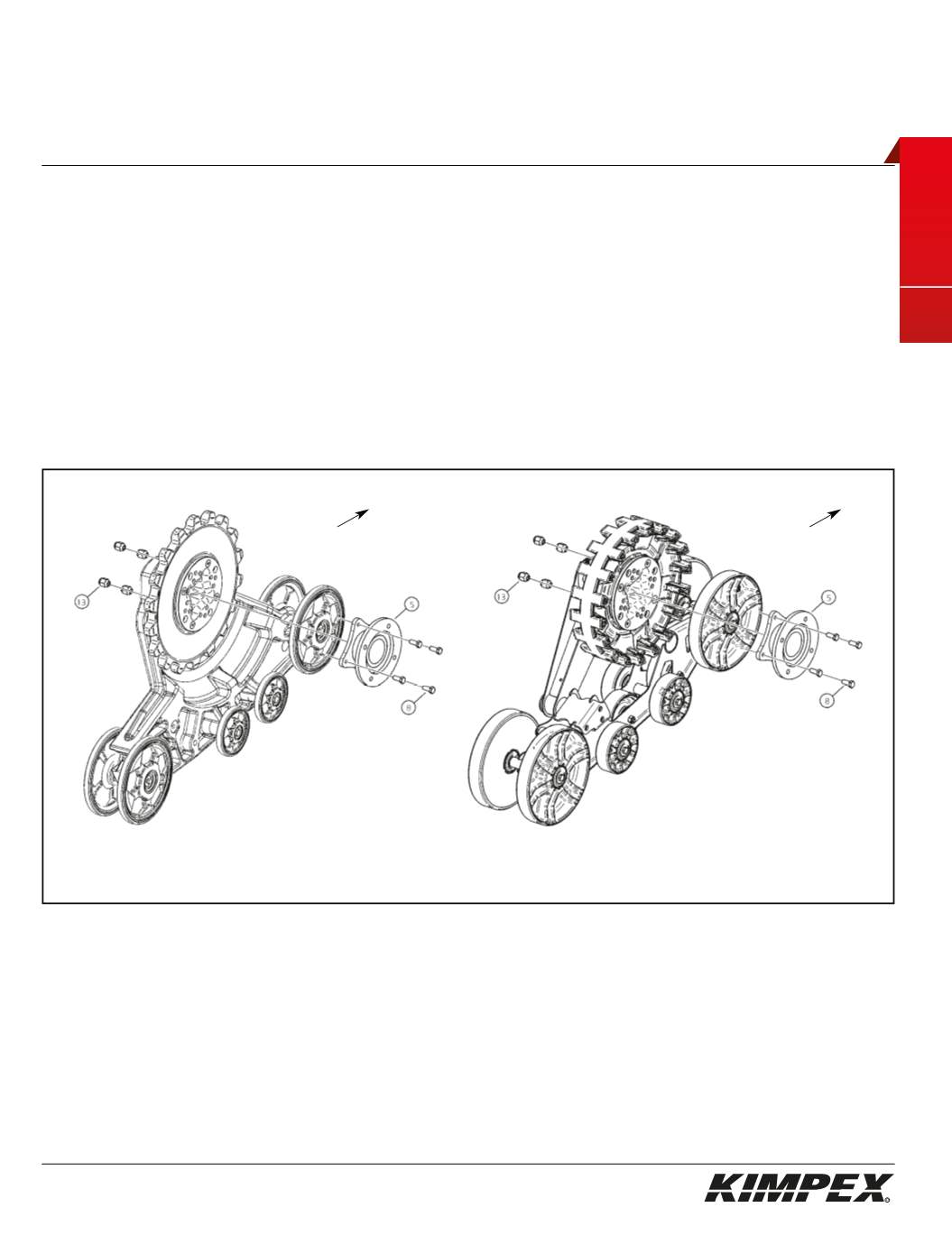

sketch L
LEFT REAR VIEW
COMMANDER TREX UTV
COMMANDER WIDE TRACK
MAIN AXLE ADAPTER INSTALLATION (see sketch L)
1)
Install the
(4) M10 X 25mm
hex bolts (#
8
) into the threaded holes of the main axle adapter (#
5
) as illustrated.
2)
Position and fasten the main axle adapter (#
5
) onto the hub of the vehicle using the original wheel nuts. Apply the tightening torque
specified in your ATV owner’s manual.
3)
Position and fasten the Track Kit to the main axle adapter (#
5
) using the
(4) M10-1.25
wheel nuts (#
13
).
Torque to 25 ft-lbs.
NOTE :
Refer to the Track Kit manual for the correct adjustment.
4)
Repeat
steps 1
to
3
for the opposite side.
NOTE :
Recheck torque of the wheel nuts (#13) after one hour of use.
