FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
374360
For “Commander Wide Track” and “Commander Trex UTV” Track Kits
MOUNTING INSTRUCTIONS
10
REAR ANTI-ROTATION INSTALLATION
(see sketch K)
1)
Screw the
5/8” nc
nut (#
12
) onto the threaded part of the anti-rotation tube (#
4
).
2)
Install the
17mm I.D. X 50mm O.D. X 3mm
flat washer (#
20
) and the bushing spacer tube (#
2
) onto the threaded part of the anti-rotation tube
(#
4
).
3)
Install the rubber bushing (#
1
) over the bushing spacer tube (#
2
).
4)
Slide the anti-rotation assembly into the hole on the bottom of the rear A-arm bracket (#
6
).
5)
Install the rubber bushing (#
1
), the
3/4” I.D. X 2” O.D. X 1/8”
flat washer (#
19
), and the other rubber bushing (#
1
) over the bushing spacer tube
(#
2
).
6)
Install the
17mm I.D. X 50mm O.D. X 3mm
flat washer (#
20
) onto the threaded part of the anti-rotation tube (#
4
).
7)
Screw the
5/8” nc
self-locking nut (#
15
) onto the threaded part of the anti-rotation tube (#
4
). Do not overtighten.
NOTE :
Refer to the Track Kit manual for the correct adjustment.
8)
Reinstall the rear CV shield removed during
step 2 of the “REAR A-ARM BRACKET INSTALLATION” section
using the original
hardware.
9)
Repeat
steps 1
to
8
for the opposite side.

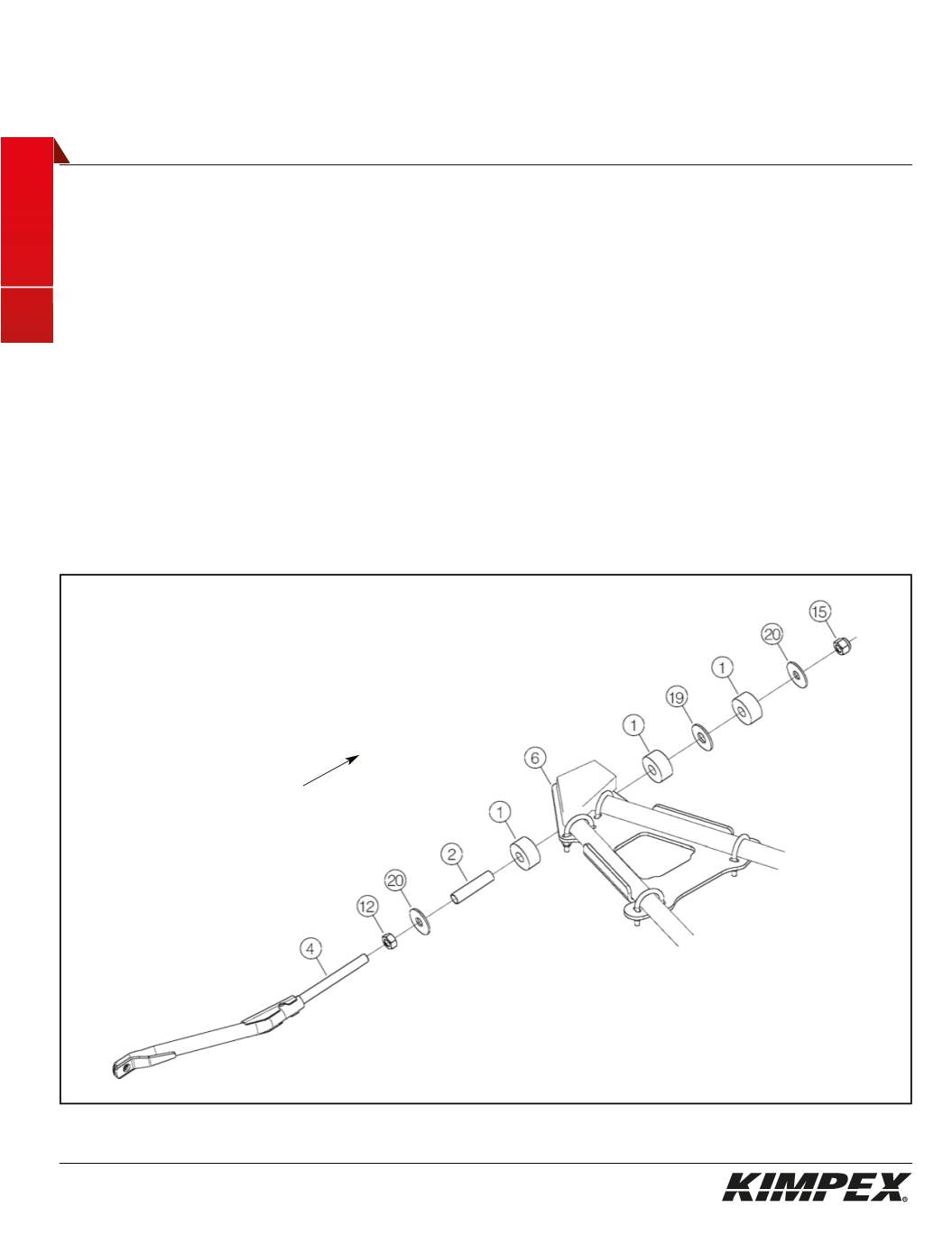

sketch K
LEFT
REAR VIEW
Front of the ATV
