FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
374360
For “Commander Wide Track” and “Commander Trex UTV” Track Kits
MOUNTING INSTRUCTIONS
2
FRONT LEFT AND RIGHT A-ARM BRACKET
Ref. Description
Item No.
Qty
12
3/8” nc X 2” carriage bolt
S2412-0E032-0A2
8
13
1/2” nc X 3” carriage bolt
S2412-0G048-0A2 2
14
1/2” nf nut
S4111-20800-022 2
15
M10-1.25 wheel nut
S4178-M010M-028 8
16
3/8” nc self-locking nut
S4186-10600-022 8
17
1/2” nc self-locking nut
S4186-10800-022 2
18
3/8” dia flat washer
(yellow zinc plated)
S4612-00600-0S1
2
19
1/2” nf ball joint
S9113-C0500-002 2
20
Neoprene flat washer
7810304-2000
2
21
3/8” nc self-locking thin nut
S4186-10600-022 2
Ref. Description
Item No.
Qty
1
Large ball joint spacer
2510039-1-20-2000 2
2
Short ball joint spacer
2510039-1-20-4000 2
3
Tightening spacer
Q2212-10082
2
4
Support washer
2510235-10-1000 2
5
Front anti-rotation assembly
7810304-10A
2
6
Front A-arm clamping plate
2810248-1-2000
2
7
Main axle adapter
2810248-1-3000
2
8
Spacer
2810248-1-4000
2
9
Front left A-arm bracket
2810248-2-1000
1
Front right A-arm bracket
2810248-1-1000
1
10
M10-1.25 X 25mm hex bolt
S1211-10025-0D1 8
11
3/8” nc X 6” hex bolt
S1711-00648-052 2

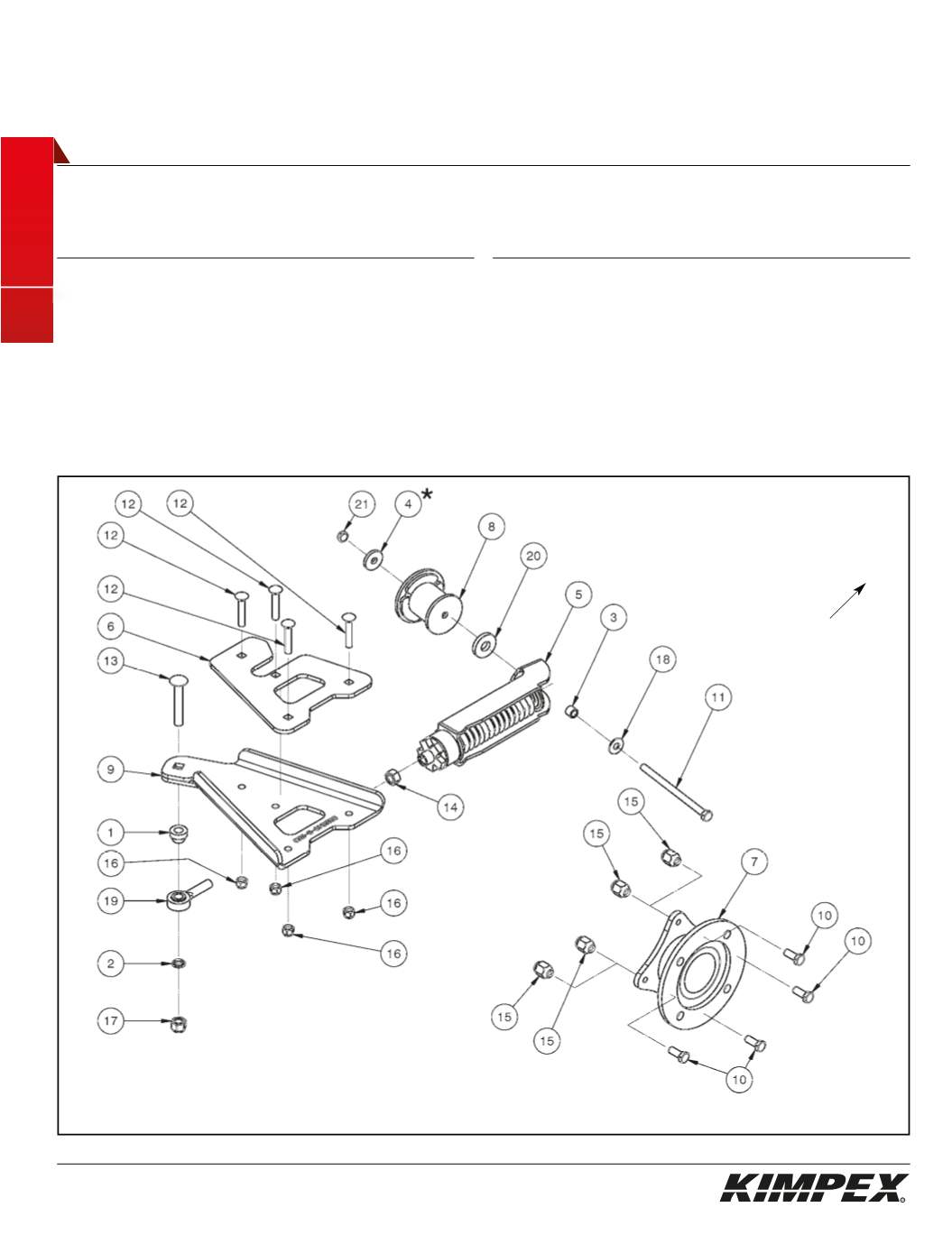

sketch A
LEFT SIDE VIEW
Front of
the ATV
*
“Commander Wide Track” Models Only.
