ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 374350
For "Commander Wide Track" and " Commander trek HD" Track kit
Kawasaki Teryx 750
FRONT ANTI-ROTATION INSTALLATION
(see sketch F)
NOTE :
Pay special attention to the orientation given to spacers (#1 and #2) during installation.
1)
Assemble the ball joint (#
19
) and the
1/2” nf
nut (#
14
) to the front anti-rotation assembly (#
5
).
2)
Install the large ball joint spacer (#
1
) with the narrow part facing down onto the
1/2” nc X 3”
carriage bolt (#
13
) installed in
step 3 at the
“FRONT A-ARM BRACKET INSTALLATION” section
.
3)
Install the ball joint (#
19
) of the anti-rotation assembly onto the bolt (#
13
), below the large ball joint spacer (#
1
). Install the short ball joint
spacer (#
2
) with the narrow part facing up, below the anti-rotation assembly (#
5
).
4)
Tighten the assembly with the
1/2” nc
self-locking nut (#
17
). Torque to 65 ft-lbs.
WARNING :
If the bolts are not sufficiently tightened, there is a risk of them becoming loose, of parts detaching and risk
of loss of control over the vehicle, as well as risk of personal injury.
5)
Rotate the anti-rotation assembly (#
5
) towards the center of the vehicle to prevent it from interfering with the installation of the Track Kit.
6)
Repeat
steps 1
to
5
for the opposite side.
t
TO FINISH THE INSTALLATION OF THE FRONT TRACK KIT OF “COMMANDER WIDE TRACK” MODELS, SEE PAGE 8.
t
TO FINISH THE INSTALLATION OF THE FRONT TRACK KIT OF “COMMANDER TREK HD” MODELS, SEE PAGE 9.

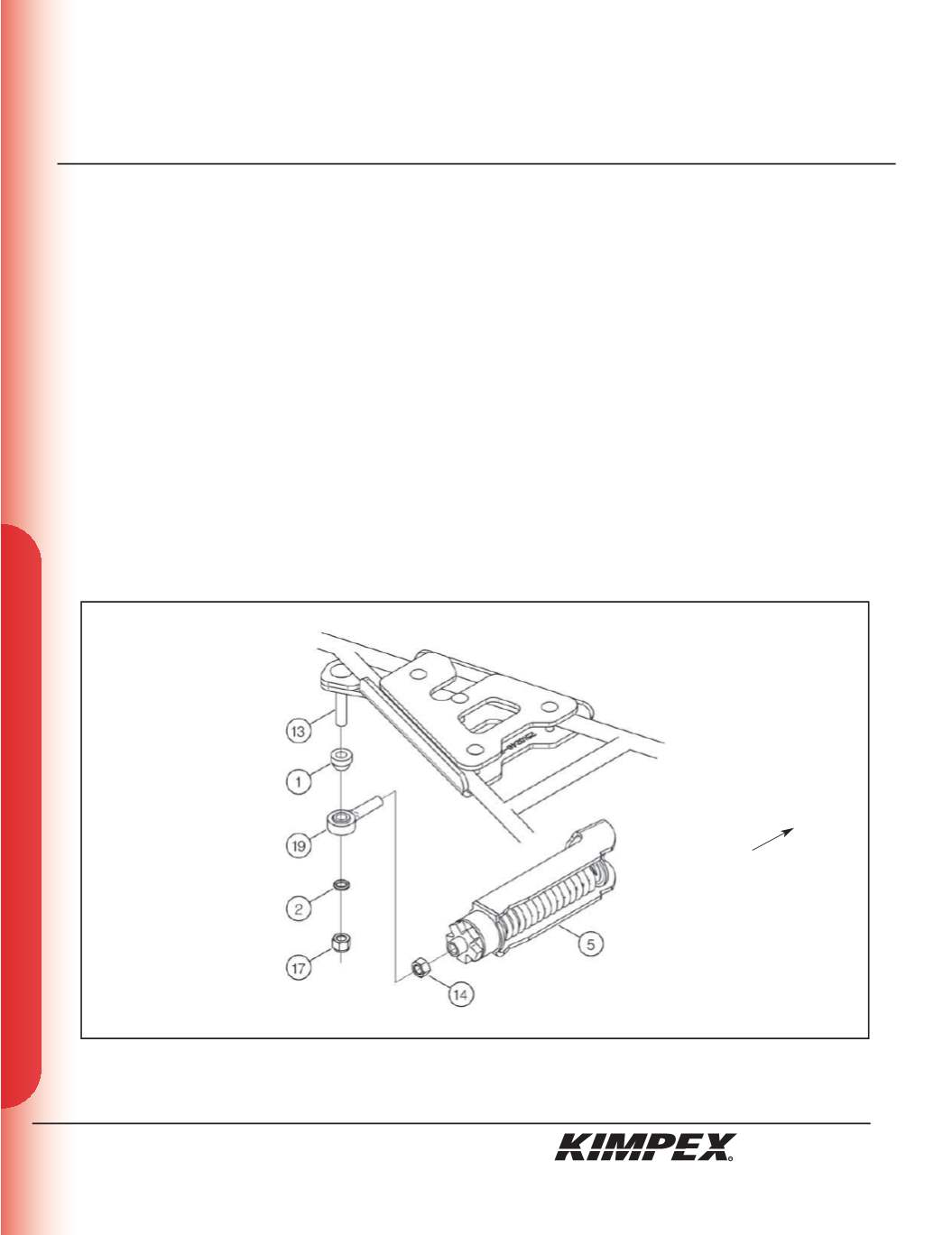

sketch F
Front of
the ATV
LEFT
FRONT VIEW
