MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 374350
For "Commander Wide Track" and " Commander trek HD" Track kit
Kawasaki Teryx 750
3
“COMMANDER WIDE TRACK”
REAR ANTI-ROTATION INSTALLATION
(see sketch N)
1)
Assemble the free extremity of the rear anti-rotation
(#
4
) to the hole made for this purpose in the plastic
frame of the Track Kit using the
3/8” nc X 4”
hex bolt
(#
10
), the
3/8” dia (yellow zinc plated)
flat washer (#
18
), the
tightening spacer (#
7
), the support washers (#
3
), and
the
3/8” nc
self-locking nut (#
14
).
Apply a tightening torque of 23 ft-lbs.
2)
Repeat
step 1
for the opposite side.
NOTE :
Refer to the track kit manual for the
correct adjustment.
“COMMANDER TREK”
REAR ANTI-ROTATION INSTALLATION
(see sketch O)
1)
Assemble the free extremity of the rear anti-rotation
(#
4
) to the hole made for this purpose in the frame of
the Track Kit using the
3/8” nc X 1-1/4”
hex bolt (#
9
), the
3/8” dia
lock washer (#
16
), the
3/8” dia (yellow zinc plated)
flat washer (#
18
), and the tightening spacer (#
7
).
Apply a tightening torque of 23 ft-lbs.
2)
Repeat
step 1
for the opposite side.
NOTE :
Refer to the track kit manual for the
correct adjustment.

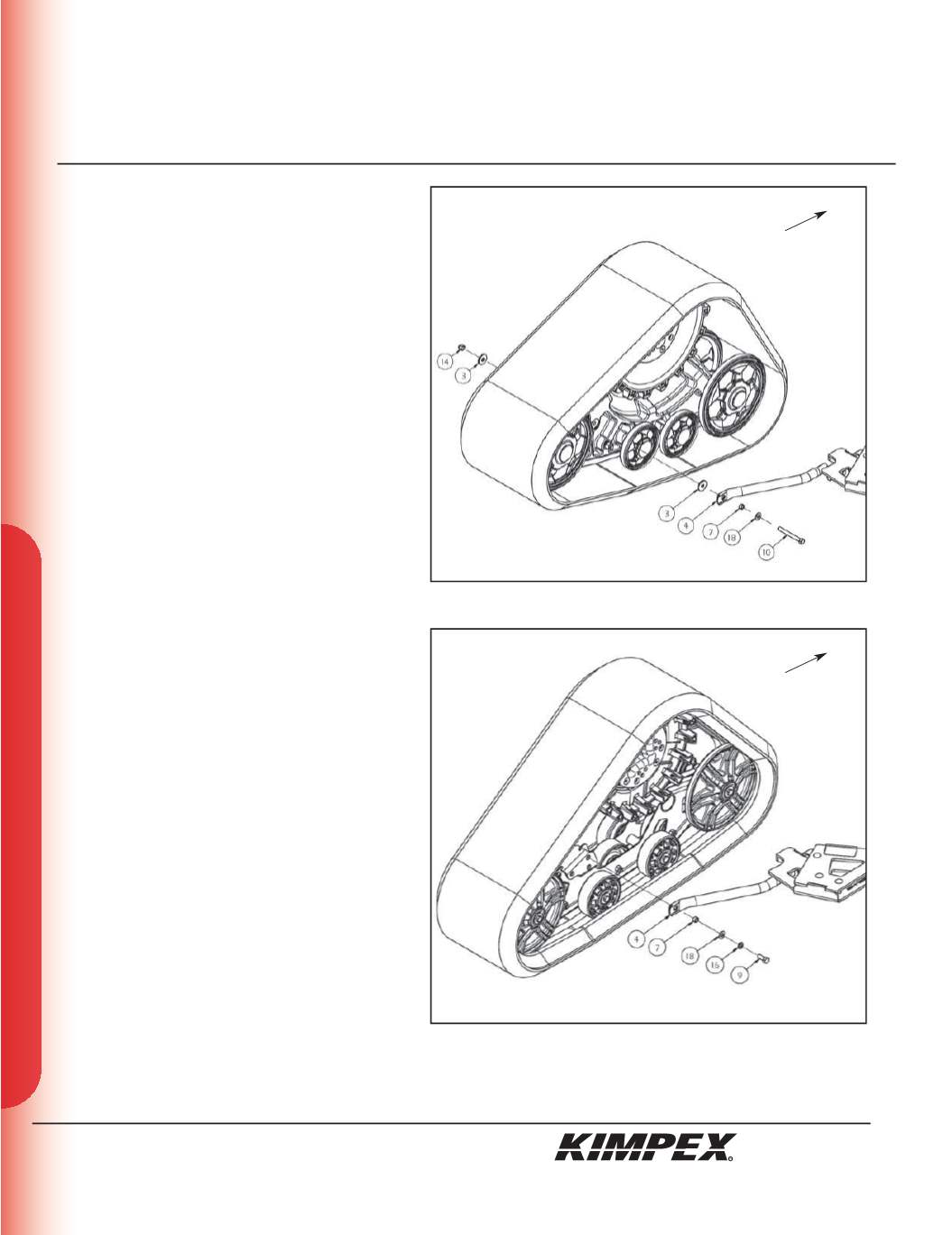

sketch N
LEFT
REAR VIEW
Front of the ATV
sketch O
LEFT
REAR VIEW
Front of the ATV
