KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain, New York / 12919
Lithographié au Canada / Litho’d in Canada
A-2810247
1/9
ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 374430
FOR " COMMANDER WIDE TRACK " AND " COMMANDER TREK HD " TRACK KIT / POLARIS RANGER RZR
FRONT LEFT AND RIGHT A-ARM BRACKET
Ref. Description
Item No.
Qty
12
3/8” nc X 2” carriage bolt
S2412-0E032-002
4
13
3/8” nc X 2-1/2” carriage bolt
S2412-0E040-0A2
2
14
1/2” nc X 3” carriage bolt
S2412-0G048-0A2 2
15
3/8” nc X 2-1/4” Allen socket
machine screw
S3161-B0D36-000 4
16
1/2” nf nut
S4111-20800-022 2
17
5/16” nc self-locking nut
S4186-10500-022 8
18
3/8” nc self-locking nut
S4186-10600-022 8
19
1/2” nc self-locking nut
S4186-10800-022 2
20
5/16” dia flat washer
S4612-00500-002 8
21
3/8” dia flat washer
(yellow zinc plated)
S4612-00600-0S1
4
22
1/2” nf ball joint
S9113-C0500-002 2
Ref. Description
Item No.
Qty
1
Large ball joint spacer
2510039-1-20-2000 2
2
Short ball joint spacer
2510039-1-20-4000 2
3
Tightening spacer
2510039-1-30-4000 2
4
Support washer
2510235-10-1000 4
5
Main axle adapter
2810153-5000
2
6
3/8” nf “T” nut
2810153-9000
8
7
Front anti-rotation assembly
2810203-50
2
8
Front left A-arm bracket
2810247-2-1000
1
Front right A-arm bracket
2810247-1-1000
1
9
Front left A-arm clamping plate 2810247-2-2000
1
Front right A-arm clamping plate 2810247-1-2000
1
10
3/8” nc X 4” hex bolt
S1711-00632-052 2
11
5/16” nc X 2-3/16” U-bolt
S2215-D2235-002 4

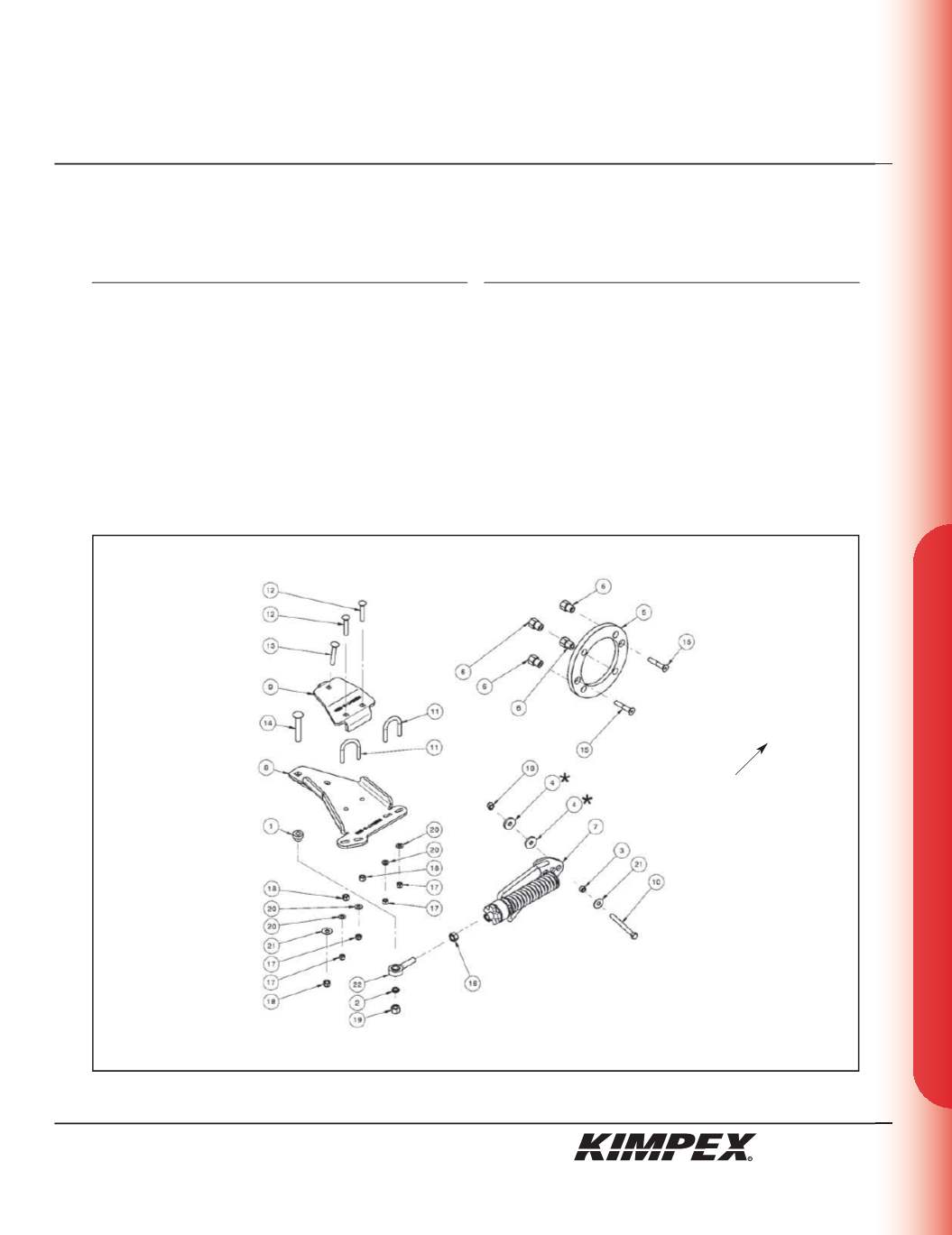

sketch A
LEFT SIDE VIEW
Front of
the ATV
*
“Commander Wide Track” Models Only.
