ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 374430
FOR " COMMANDER WIDE TRACK " AND " COMMANDER TREK HD " TRACK KIT / POLARIS RANGER RZR
REAR A-ARM BRACKET INSTALLATION
(see sketch H)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode and the transmission in
neutral, and block the wheels.
1)
Raise the rear of the vehicle off the ground and remove the
wheels.
WARNING :
When the vehicle is raised, make sure that
it is properly secured/supported to prevent it from
accidentally falling during the installation of the A-arm
brackets. If not properly secured/supported, serious
physical injury could occur.
2)
Remove the rear left CV shield. Do not discard. They will be
reinstalled later.
3)
Place the rear left A-arm bracket (#
10
) below the rear lower
A-arm so that the two parts fit snugly.
4)
Install the
(2)
rear interior A-arm clamping plates (2 holes) (#
8
)
above the lower front A-arm and fasten it to the A-arm bracket
(#
10
) using the
(4) 3/8” nc X 2-1/4”
carriage bolts (#
14
) and the
(4)
3/8” nc
self-locking nuts (#
17
).
Install the rear exterior A-arm clamping plate (3 holes) (#
9
) above
the lower front A-arm and fasten the exterior part of it to the
A-arm bracket (#
10
) using the
(2) 3/8” nc X 2-1/4”
carriage bolts (#
14
)
and the
(2) 3/8” nc
self-locking nuts (#
17
).
Fasten the interior part to the A-arm bracket (#
10
) using the
3/8” nc X 2-3/4”
hex bolt (#
24
), the
(2) 3/8” dia
flat washers (#
23
),
and the
3/8” nc
self-locking nut (#
17
).
Torque to 20 ft-lbs.
IMPORTANT :
Tighten in a manner not to permanently
deform the assembly.
5)
Repeat
steps 2
to
4
for the opposite side.

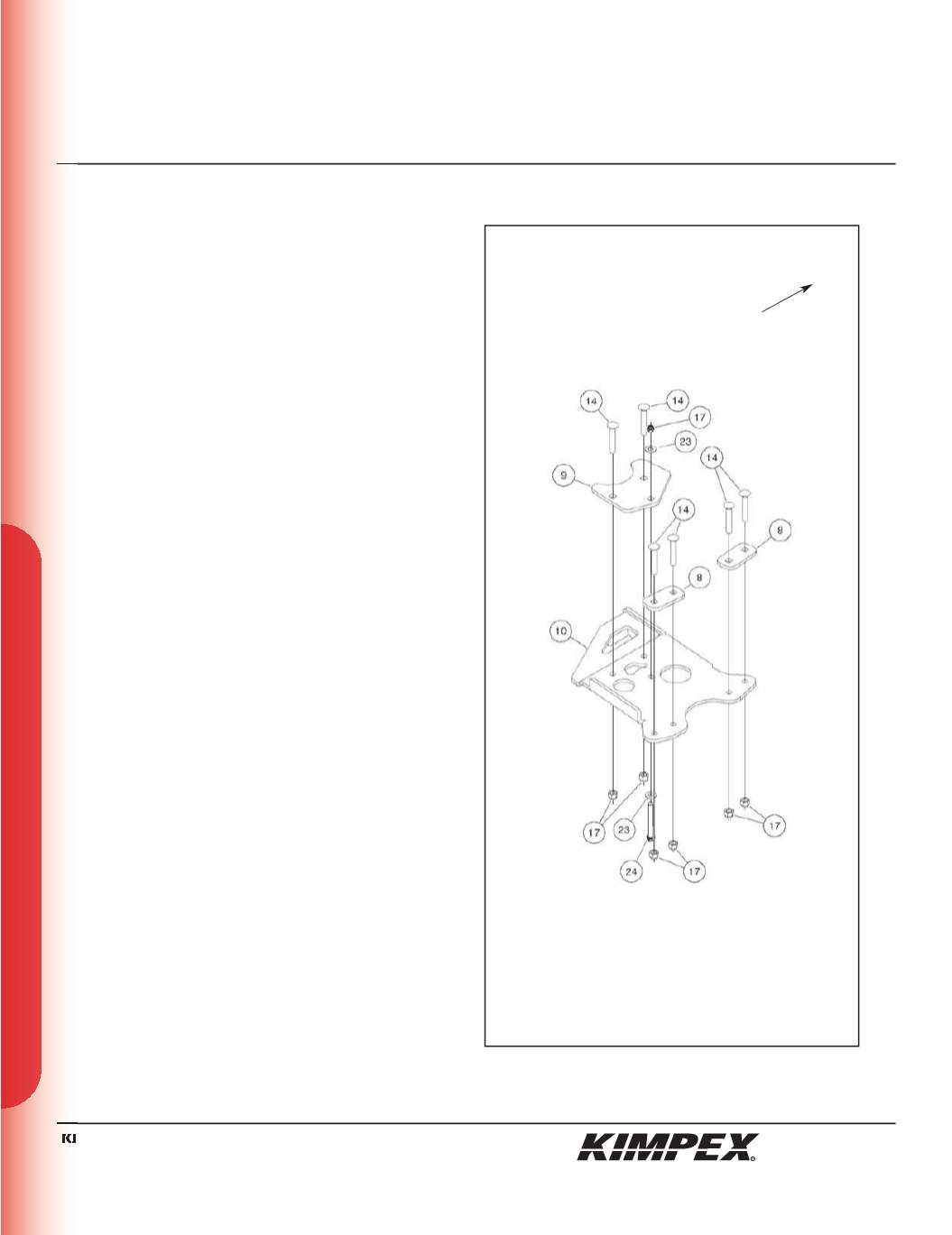

sketch H
LEFT
REAR VIEW
Front of the ATV
