10/10
ATV
INSTALLATION MANUAL
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
o
374450
FOR COMMANDER TRACK KIT SYSTEM AND POLARIS RANGER XP 900 (2013 AND FURTHER) VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810478
•
A-2810478-EN
10
Installation of the main axle adapter
CAUTION
: The installation of the anti-rotation arm must be done before the installation of the track system on the
vehicle.
1) Remove and discard one bolt retaining the sprocket to main axle track system, keep the flat washers. a. See
figure 11.
WARNING: Pay attention to the orientation given to main axle adapter
06
during installation. The lip of it has to
marry arround the main axis.
2) Position the main axle adapter
06
and set using two (2) Allen socket machine screw
16
, the flat washers a removed in
step 1
and the two (2) nylon nuts
17
. Torque at 20 ft-lbs.
3) Use the four (4) T nuts
02
to install the track system onto the hub of the vehicle. Torque at 25 ft-lbs.
NOTE : Recheck torque of the wheel nuts
02
after one hour of use.
4) Repeat
steps 1
to
3
for the opposite side.

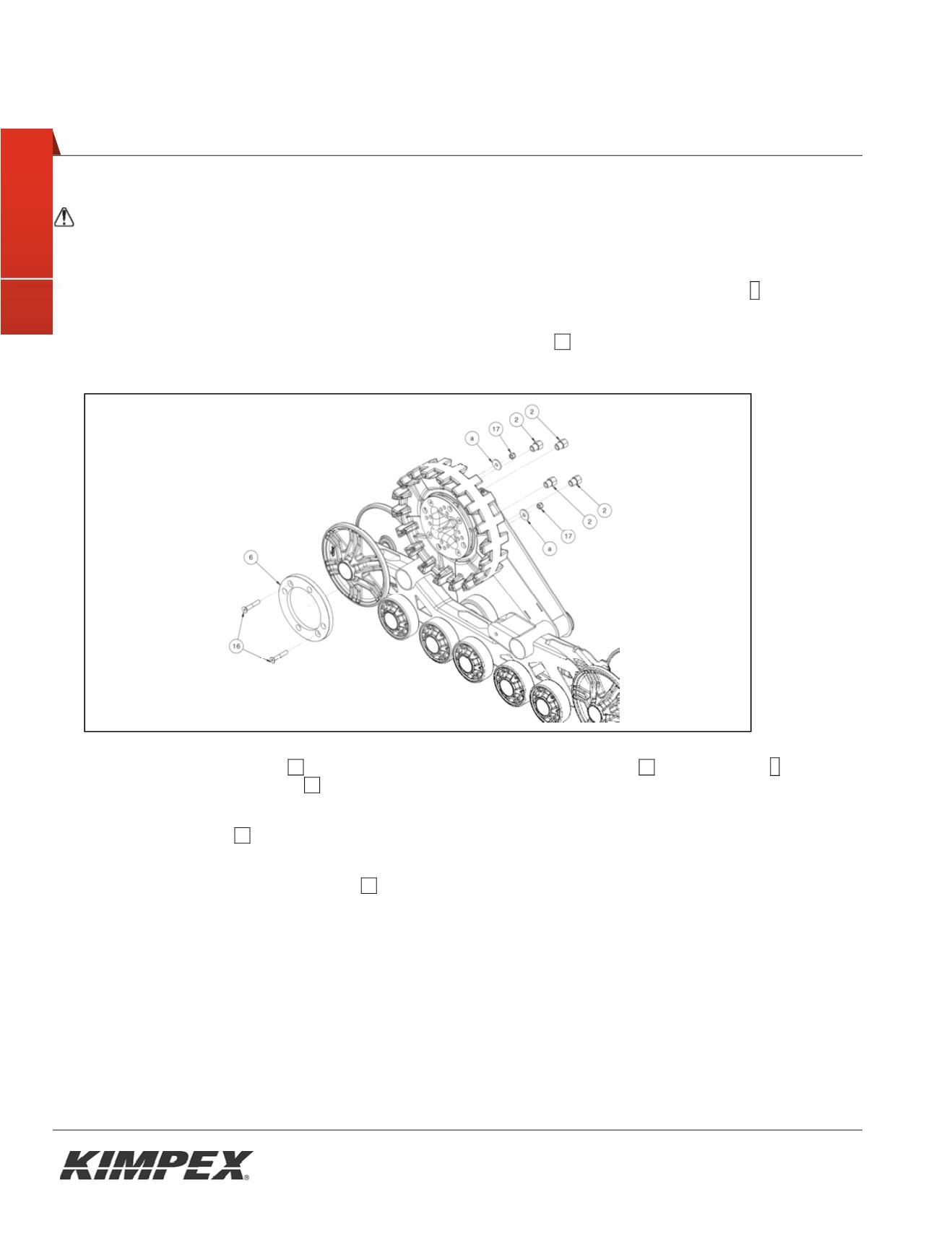

Fig. 10
