INSTALLATION MANUAL
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
o
374450
FOR COMMANDER TRACK KIT SYSTEM AND POLARIS RANGER XP 900 (2013 AND FURTHER) VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810478
•
A-2810478-EN
•
Lithographié au Canada / Litho’d in Canada
7
b) Assemble the front side of the rear anti-rotation arm bracket
05
into the hole provided for this purpose in
the frame of the track kit using the bolt
12
and one nut
17
(finger tighten only). See
figure 5B.
c) Position the rear round clamping plate
01
where the plastic cap was removed in
step a
and fasten the rear
side of the rear anti-rotation arm bracket
05
into the frame using the tightening spacer
10
, the hex bolt
14
and the nylon nut
17
. See
figure 5B
.
d) Torque at 20 ft-lbs the two (2) hex bolts
e) Repeat
steps a
to
d
for the opposite side
3) Insert the anti-rotation arm into the hole of the rear anti-rotation arm bracket
05
already installed. See
figure 6
4) Seats remianing parts in the same order shown, see
figure 4
et
figure 6
.

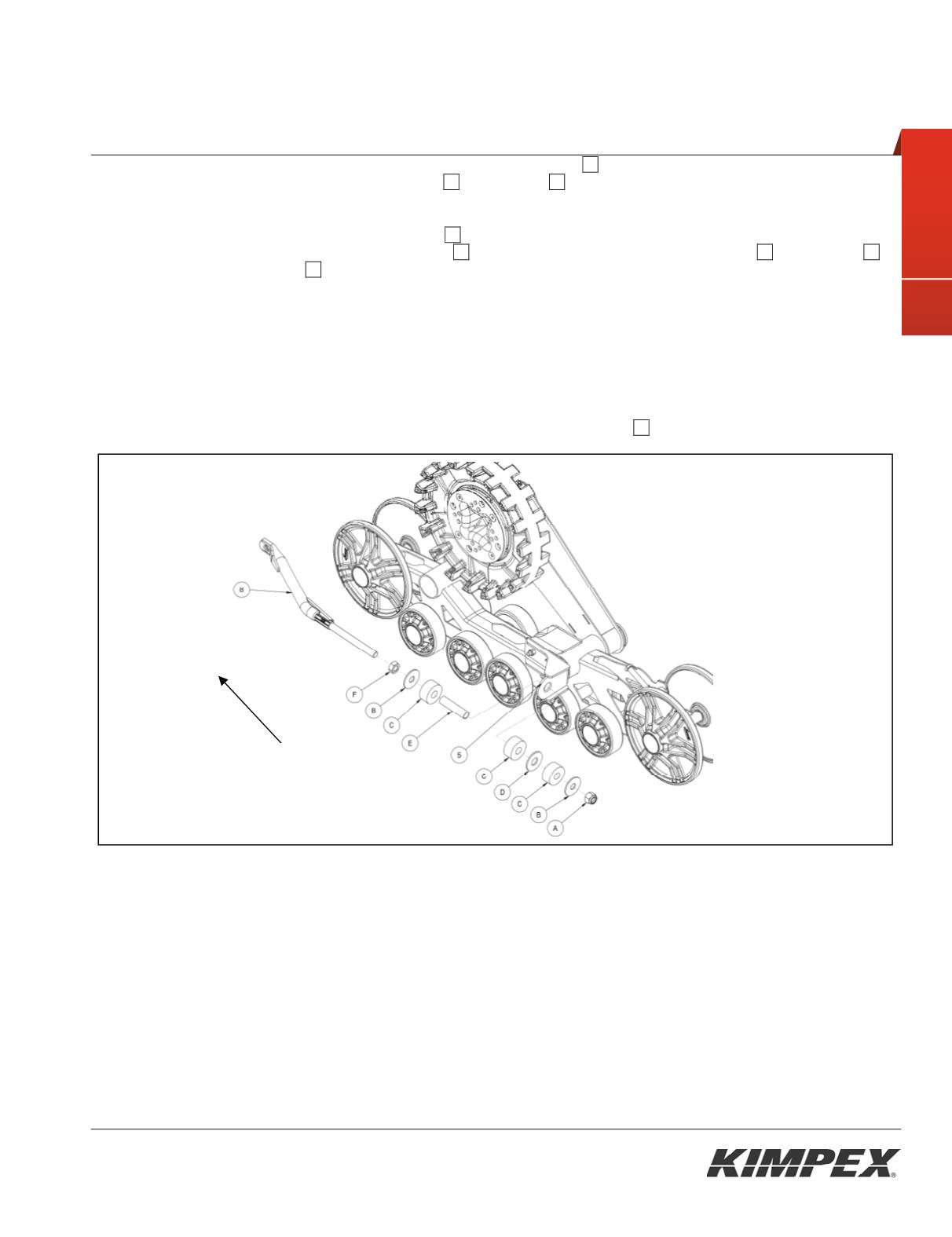

Fig. 6
Front of the UTV
