3/10
ATV
INSTALLATION MANUAL
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
o
374450
FOR COMMANDER TRACK KIT SYSTEM AND POLARIS RANGER XP 900 (2013 AND FURTHER) VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810478
•
A-2810478-EN
•
Lithographié au Canada / Litho’d in Canada
3
REAR SUSPENSION BRACKETS
Réf. Description
N
o
d’article
Qté Réf. Description
N
o
d’article
Qté
1
Rear clamping round plate
2810371-3-3000
1
10
1" Tightening spacer
Q2212-10096
1
2
M12 -1.5 "T" nut
2810478-1000
4
11
M10-1.5 x 50mm Cl8.8 Hex bolt
S1111-10050-0D1
1
3
Rear right suspension bracket
2810478-3-1000
1
12
M10-1.5 x 100mm Cl8.8 Hex bolt
S1111-100A0-0D1
1
Rear left suspension bracket
2810478-4-1000
1
13
M10-1.5 x 180mm Cl10.9 Hex bolt
S1111-100A8-0F1
1
4
Rear clamping plate
2810478-3-2000
1
14
3/8"-16 x 9" Cl 5 Hex bolt
S1711-00672-052
1
5
TREX UTV adapter
2810478-5-1000
1
15
M8-1.25 x 30mm
Carriage Bolt
S2411-M8030-011
2
6
Polaris main axle adapter
7810153-5000
1
16
3/8"-16 x 2-1/4"
Allen socket machine screw
S3161-B0D36-000
2
7
UTV's rear anti-rotation arm
hardware kit
7810182-1
1
17
3/8"-16 Nylon nut
S4186-10600-022
5
8
Rear anti-rotation arm
7810304-30-1000
1
18
M8-1.25 Nylon nut
S4186-M080M-021
2
9
9/16" Tightening spacer
Q2212-10093
1
19
M10-1.5 Nylon nut
S4186-M100N-021
2

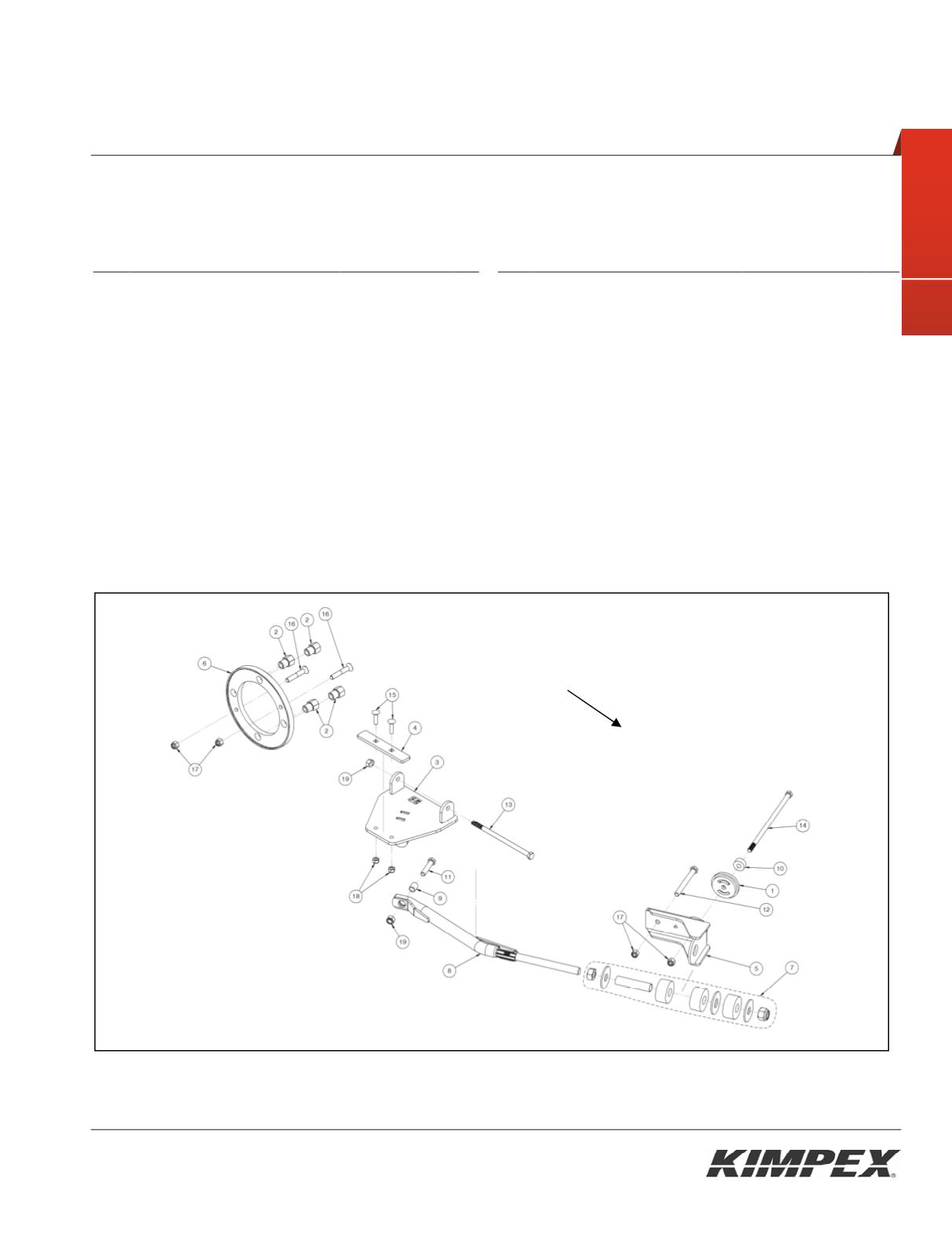

Fig. 2
Rear of the UTV
