ATV
INSTALLATION MANUAL
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
o
374450
FOR COMMANDER TRACK KIT SYSTEM AND POLARIS RANGER XP 900 (2013 AND FURTHER) VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810478
•
A-2810478-EN
2
FRONT A-ARM BRACKETS
Réf. Description
Item N
o
Qty Réf. Description
Item N
o
Qty
1
Large ball joint spacer
2510039-1-20-2000
1
11
M12-1.75 x 70MM PZ Cl 8.8
Carriage bolt
S2411-M1270-031
1
2
Short ball joint spacer
2510039-1-20-4000
1
12
1/2"-13 x 2-3/4" PZ Cl 5
Carriage Bolt
S2412-0G044-0A2
1
3
M12-1.5 "T" Nut
2810478-1000
4
13
3/8"-16 x 2-1/4"
Allen socket machine screw
S3161-B0D36-000
2
4
Front right A-arm bracket
2810478-1-1000
1
14
1/2"-20 Hex nut
S411-20800-022
1
Front left A-arm bracket
2810478-2-1000
1
15
3/8"-16 Nylon nut
S4186-10600-022
3
5
Front clamping plate
2810478-1-2000
1
16
1/2"-13 Nylon nut
S4186-10800-022
1
6
Polaris main axle adapter
7810153-5000
1
17
M12-1.75 Nylon nut
S4186-M120P-021
1
7
Front anti-rotation assembly
7810304-10A
1
18
3/8" Flat washer
S4612-00600-0S1
1
8
Neoprene flat washer
7810304-2000
1
19
M12 Flat washer
S4612-M1200-0A1
1
9
Tightening spacer
Q2212-10082
1
20
3/8" Fender washer
S4614-00600-082
2
10
3/8"-16 x 4" PZ Cl 5 Hex Bolt
S1711-00632-052
1
21
1/2" Ball joint
S9113-C0500-002
1

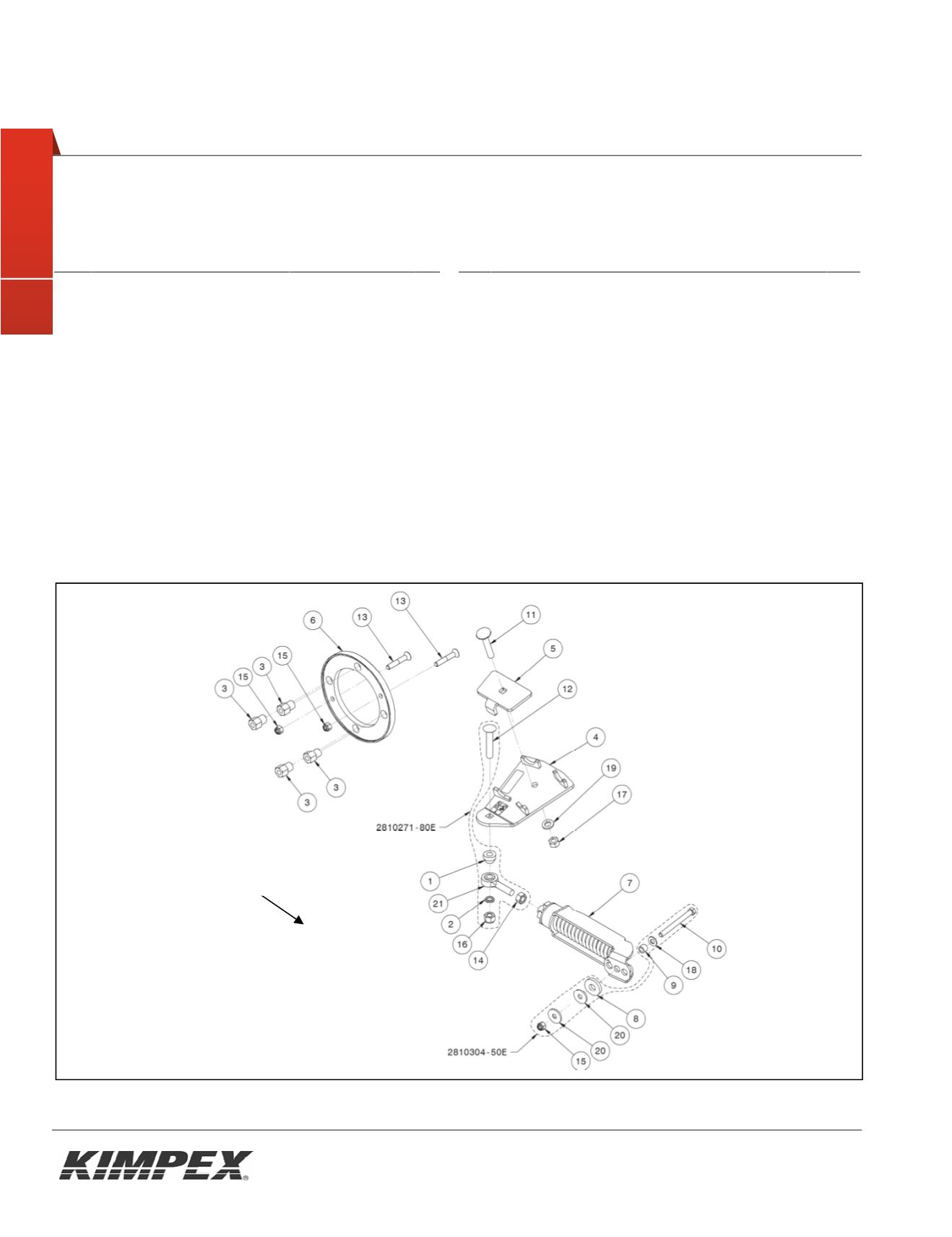

Fig. 1
Front of the UTV
