Rear suspension brackets installation
WARNING
1.
The vehicle must be
immobilized
and the
engine turned off
and cooled.
2.
Always wear
safety glasses
during installation, adjustment or repair.
3.
Please read and ensure you
have understood the warnings
and guidelines.
4.
Make sure the vehicle is
safely secured in place
by a system dedicated to this use (jack stands and hoist) and that it is supported or
fixed on locations that are not likely to break, bend or slip. A hydraulic jack is not safe; nor is a log. The vehicle must be not able to move.
The installation requires that the vehicle is in two-wheel drive mode with the gearbox in neutral. After lifting the vehicle
and removing the wheels:
1) Remove the original nut
BB
and the original bolt
AA
. Keep
them for a later reinstallation..

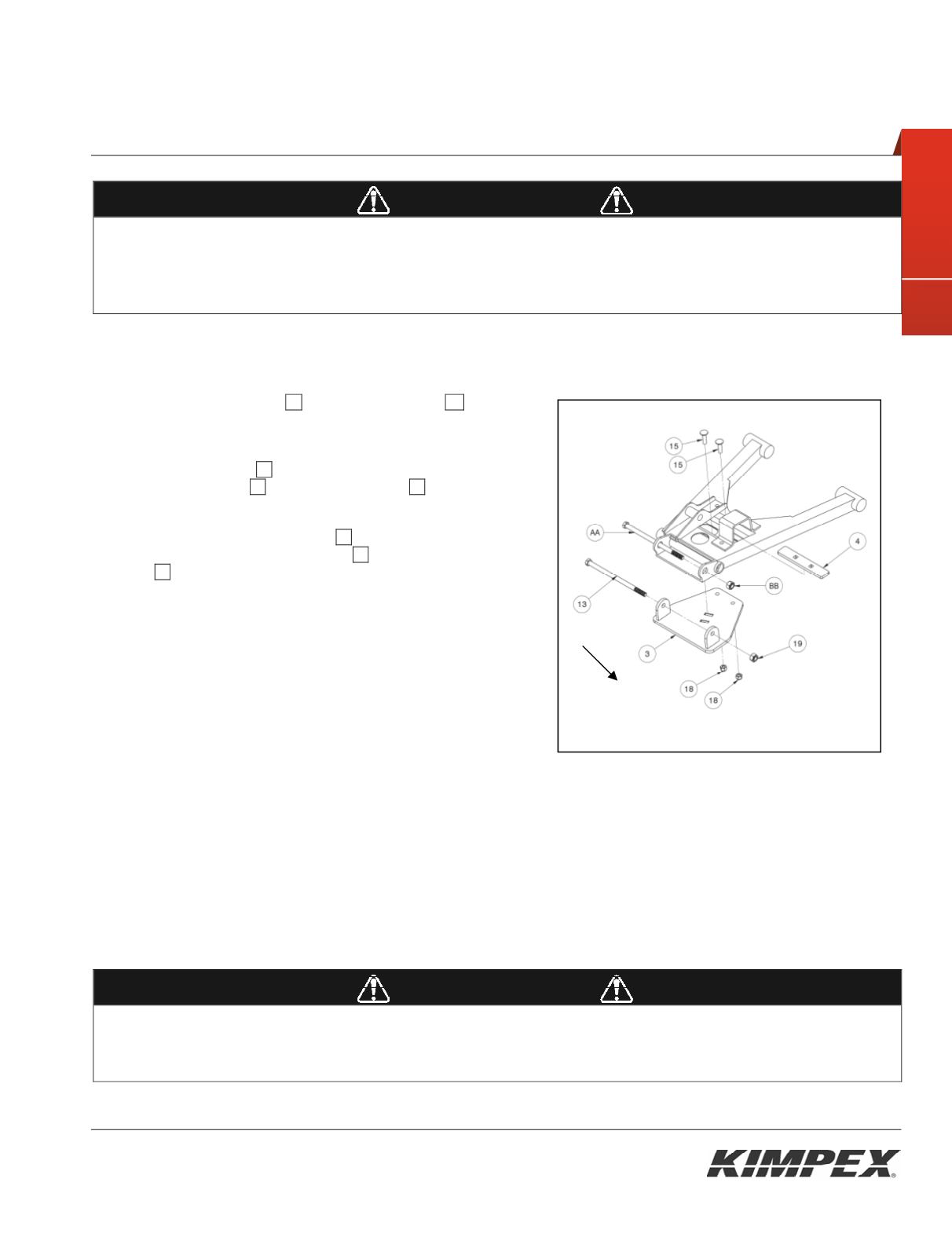

Figure 9.
2) Put the rear bracket
03
in place and secure it using the screw
M10-1.5 x 180mm
13
and the nut M10-1.5
19
.
Figure 9.
3) Position the rear clamping plate
04
and secure it using the two
(2) carriage bolts M8-1.25 x 30mm
15
and the two (2) nuts M8-
1.25
18
.
Figure 9
4) Tighten all nuts in place.
WARNING
1.
Do
not overtorque
the bolts
. Some parts may be subject to deformations. If the bolts are too tight, safety aspects could be compromised.
2.
Be careful: an incorrectly positioned A-arm bracket could give some play, which could make driving riskier as well as lead to breakage to
the vehicle, a loss of control and serious injuries.
Front of
The UTV
Fig. 9
