INSTALLATION
Installation of the anti-rotation arm on the front frame
CAUTION
: The installation of the anti-rotation arm must be done before the installation of the track system on the
vehicle.
1) Remove the plastic cap
34
,
2) Assemble the free extremity of the front anti-rotation arm
07
to the hole made for this purpose in the frame of the
track kit using the hex bolt
10
, the flat washer
18
, the tightening spacer
09
, the neoprene washer
08
and a nylon nut
15
. See
figure 3.
Torque at 23 ft-lbs
WARNING: Three (3) holes are available on the anti-rotation fixation plate; take the one which will make so that the
track kit is correctly in contact with the ground.
3) Reinstall the plastic cap
34
removed at
step 1.
4) Repeat
steps 1
to
3
for the opposite side.
Plastic Cap

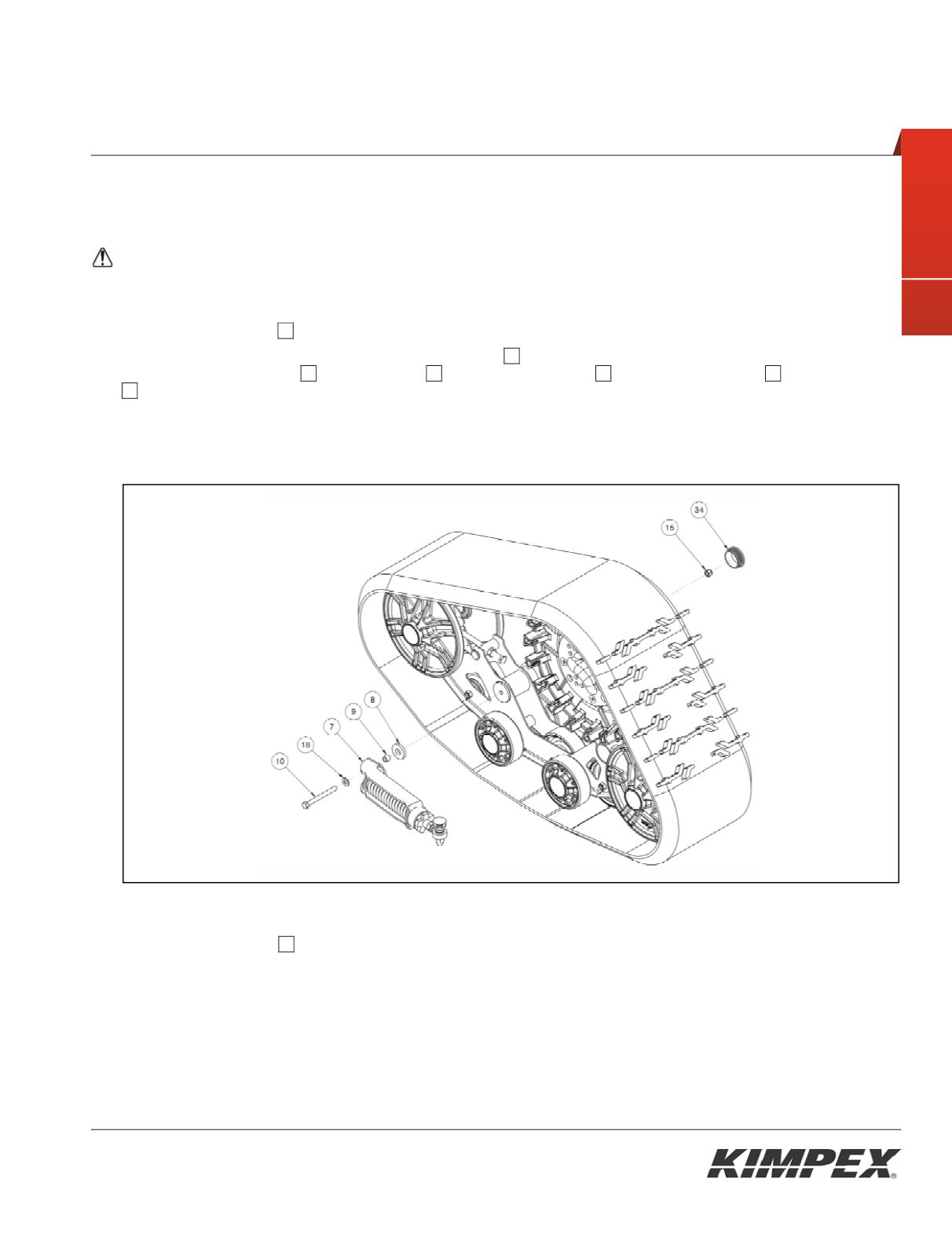

Fig. 3
