ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 375115
FOR " COMMANDER WIDE TRACK " AND " COMMANDER TREK " / BRP OUTLANDER MAX
REAR LEFT AND RIGHT A-ARM BRACKET
Ref. Description
Item No.
Qty
1
Spring support
2510039-1-30-1000 2
2
Tightening spacer
2510039-1-30-4000 2
3
Anti-rotation spring
2510039-1-30-5000 2
4
Spacer tube
2510039-3-20-2000 2
5
Rear anti-rotation tube
2810293-1000
2
6
Spring adapter
2810249-3-3000
2
7
Spacer (U.H.M.W.)
2810249-3-4000
10
8
Spacer (long)
2810249-3-5000
2
9
Spacer (short)
2810249-3-6000
4
10
Outside lock tubing (Trek)
2810249-3-7000
2
11
Inside lock tubing (Trek)
2810249-3-8000
2
12
Rear left A-arm bracket
2810249-4-1000
1
Rear right A-arm bracket
2810249-3-1000
1
13
Rear left frame bracket
(Wide Track)
2810249-4-2000
1
Rear right frame bracket
(Wide Track)
2810249-3-2000
1
14
5/16” nc X 2” hex bolt
S1711-00516-052 6
15
3/8” nc X 1” hex bolt
S1711-00608-052 2
16
3/8” nc X 6-1/2” hex bolt
S1711-00652-052 2
Ref. Description
Item No.
Qty
17
3/8” nc X 7-1/2” hex bolt
S1711-00660-052 2
18
1/2” nc X 6-1/2” hex bolt
S1711-00852-052 4
19
1/2” nf X 1-1/2” hex bolt
S1811-00812-052C 2
20
5/8” nc nut
S4111-11000-022 2
21
5/16” nc self-locking nut
S4186-10500-022 8
22
3/8” nc self-locking nut
S4186-10600-022 4
23
5/16” dia flat washer
S4612-00500-002 16
24
3/8” dia flat washer
S4612-00600-002 2
25
17mm I.D. X 50mm O.D. X 3mm
flat washer
S4612-M1600-01W 2
26
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082 4
27
5/16” nc X 1-1/2” hex bolt
S1711-00512-052 2
28
M8-1.25 X 40mm hex bolt
S1111-08040-0D1 2
29
9/16” O.D. X .322” I.D. X 1/2”
spacer
Q2212-10018
2
30
5/16” I.D. X 1-1/8” O.D.
Fender washer
S4614-00500-072 2
31
M8-1.25 self-locking nut
S4186-M080M-022 2
sketch B
*
“Commander Wide Track” Models Only.
**
“Commander Trek” Models Only.
***
Snowplow Adapter Only.

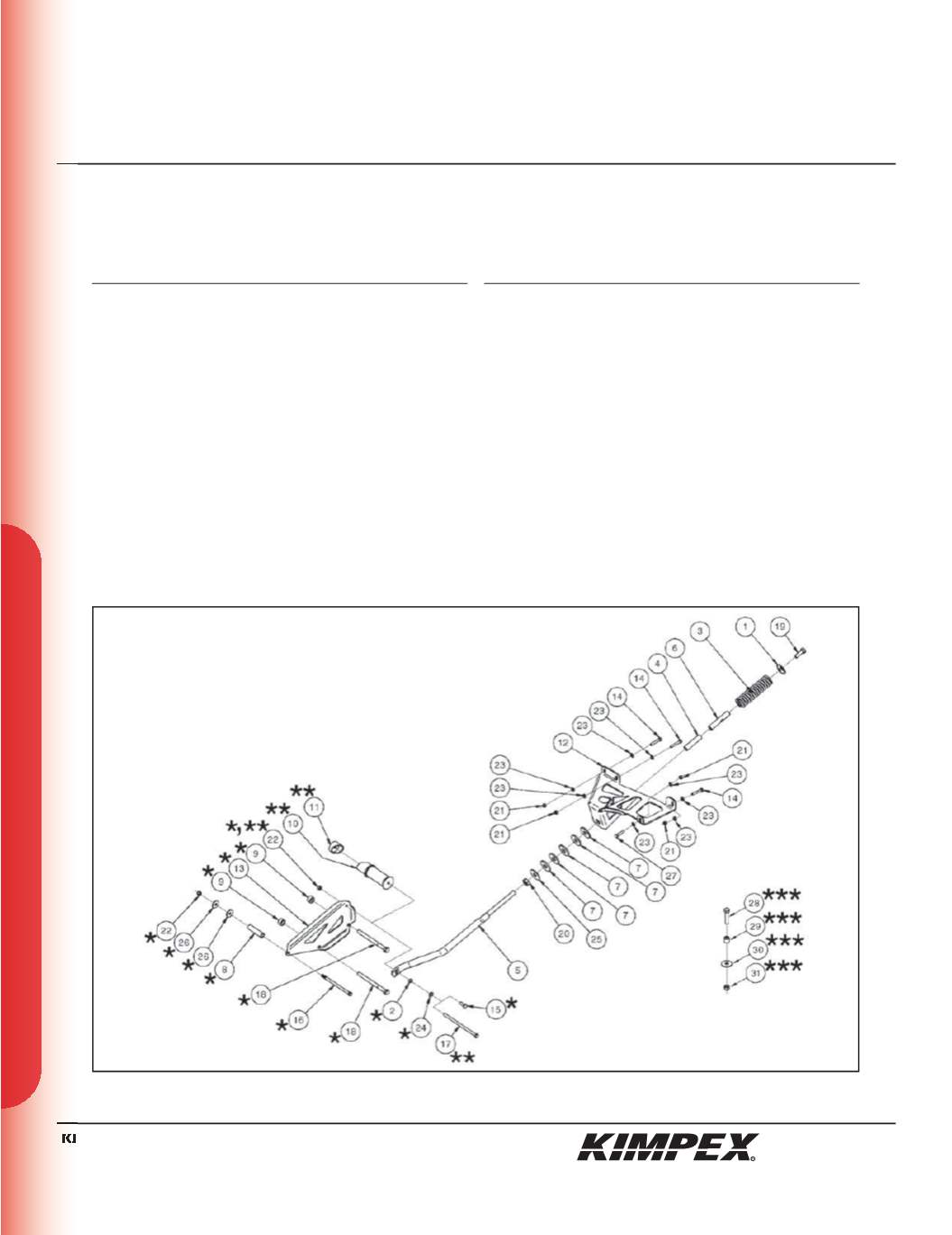

LEFT SIDE VIEW
