6/6
MANUEL D’INSTALLATION
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
°
375905
FOR COMMANDER TRACK SYSTEM AND KODIAK 450 VEHICLE
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810489
•
A-2810489-EN
6
4) Tighten all bolts in place.
WARNING
1.
Do not overtorque the bolts. Some parts may be subject to deformation. If the bolts are too tight, some safety aspects could be
compromised.
2.
Be careful: an incorrectly positioned suspension bracket could give some play, which could make driving riskier as well as lead to
breakage to the vehicle, a loss of control and serious injuries.

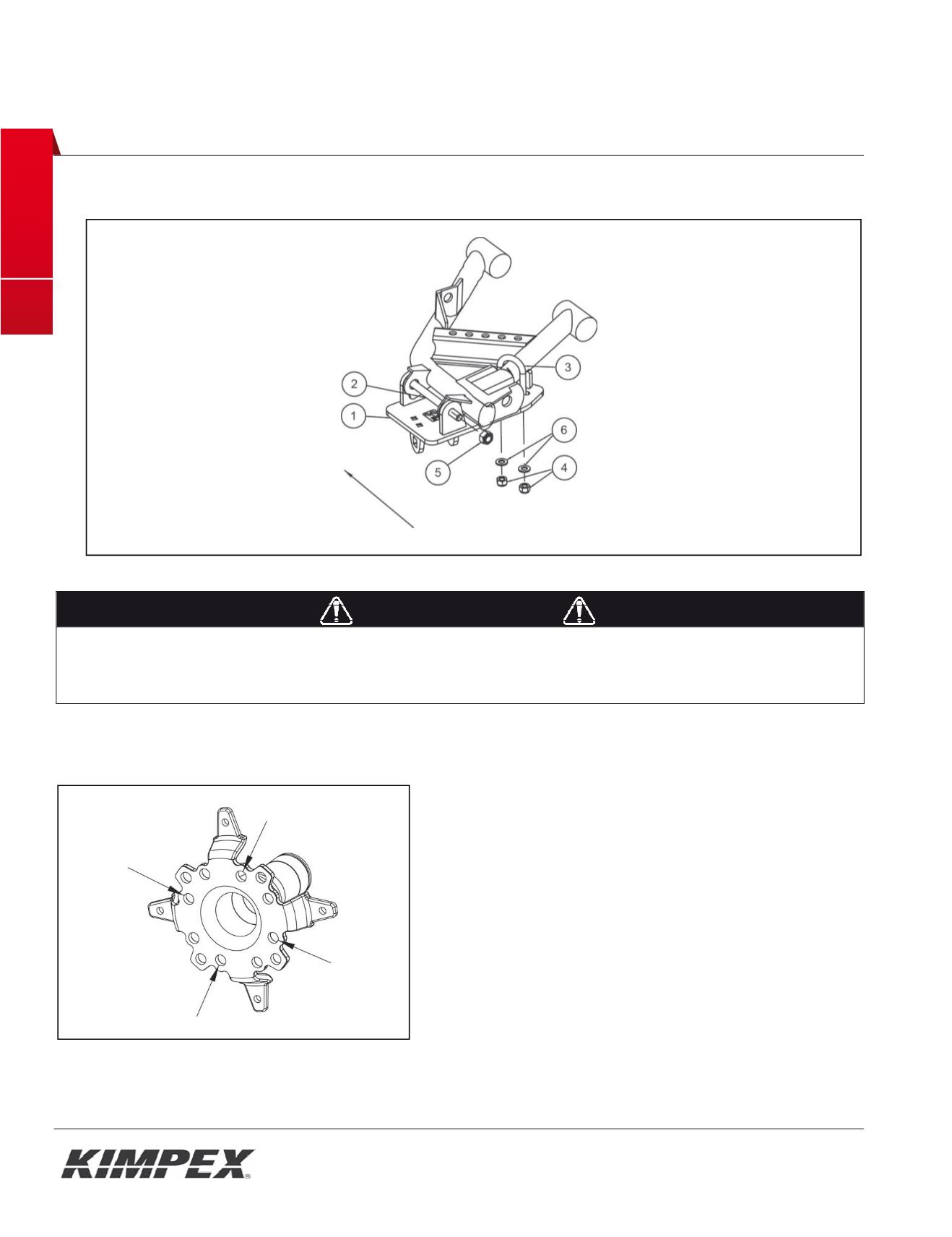

Mounting Holes on the Hub of the Track System
To install your track system, use the holes indicated in the following figure.
Fig. 7
Fig. 6
FRONT OF THE ATV
INSTAL AT ON MANUAL
FR T A RE R M TIN BR C ET KIT
IMPEX N
°
3 1
FOR COM ANDER TRACK SYSTEM AND SP RTSMAN XP VEHICLE
KIMPEX INC.
/ 535 , rue St-Roch / Drum ondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 10 Walnut Stre t / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810484
•
A-2810484-EN
4
Rear suspension brackets installation
WARNING
1.
The vehicle must be
immobilized
and the
engine turned off
and cooled.
2.
Always wear
safety glasses
during installation, adjustment or repair.
3.
Please read and ensure you
have understood the warnings
and guidelines.
4.
Make sure the vehicle is
safely secured in place
by a system dedicated to this use (jack stands and hoist) and that it is supported or
fixed on locations that are not likely to break, bend or slip. A hydraulic jack is not safe; nor is a log. The vehicle must be not able to move.
The installation requires that the vehicle is in two-wheel drive mode with the gearbox in neutral. After lifting the vehicle
and removing the wheels:
1) Insert the rear suspension bracket
01
into the suspension table of the vehicle, by sliding it in the direction indicated
by the
figure 4A
by
arrows 1 and 2.
2) After making sure that the front support bracket is well positioned under the suspension table tube, fix the rear
suspension bracket
01
using the U-bolt
02
, the flat washer
04
(place the washer in the oblong hole side) and the two
(2) nylon nuts
03
. See
figure 4B
.
3) Tighten all bolts in place.
WARNING
1.
Do not overtorque the bolts
. Some parts may be subject to deformations. If the bolts are too tight, safety aspects could be compromised.
2.
Be careful: an incorrectly positioned Suspension bracket could give some play, which could make driving riskier as well as lead to
breakage to the vehicle, a loss of control and serious injuries.
A
Fig. 4
B
