MANUEL D’INSTALLATION
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
o
375917
FOR COMMANDER TRACK SYSTEM AND GRIZZLY 550/700 VEHICLE
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
2810487
A-2810487-EN
4
Rear suspension brackets installation
WARNING
1. The vehicle must be
immobilized
; the
engine turned off
and cooled.
2. Always wear
safety glasses
during installation, adjustment or repair.
3. Please read and ensure you
have understood the warnings
and guidelines.
4.
Make sure the vehicle is
safely
secured in place by a system dedicated to this use (jack stands and hoist) and that it is supported or fixed
on locations that are not likely to break, bend or slip. A hydraulic jack is not safe, nor is a log. The vehicle must not be able to move.
The installation requires that the vehicle is in two-wheel drive mode with the gearbox in neutral. After lifting the vehicle
and removing the wheels:
1) On the vehicle, unscrew the original nut BB and remove the original screw AA of suspension table. Keep them for a
later reinstallation. See
Figure 4A.

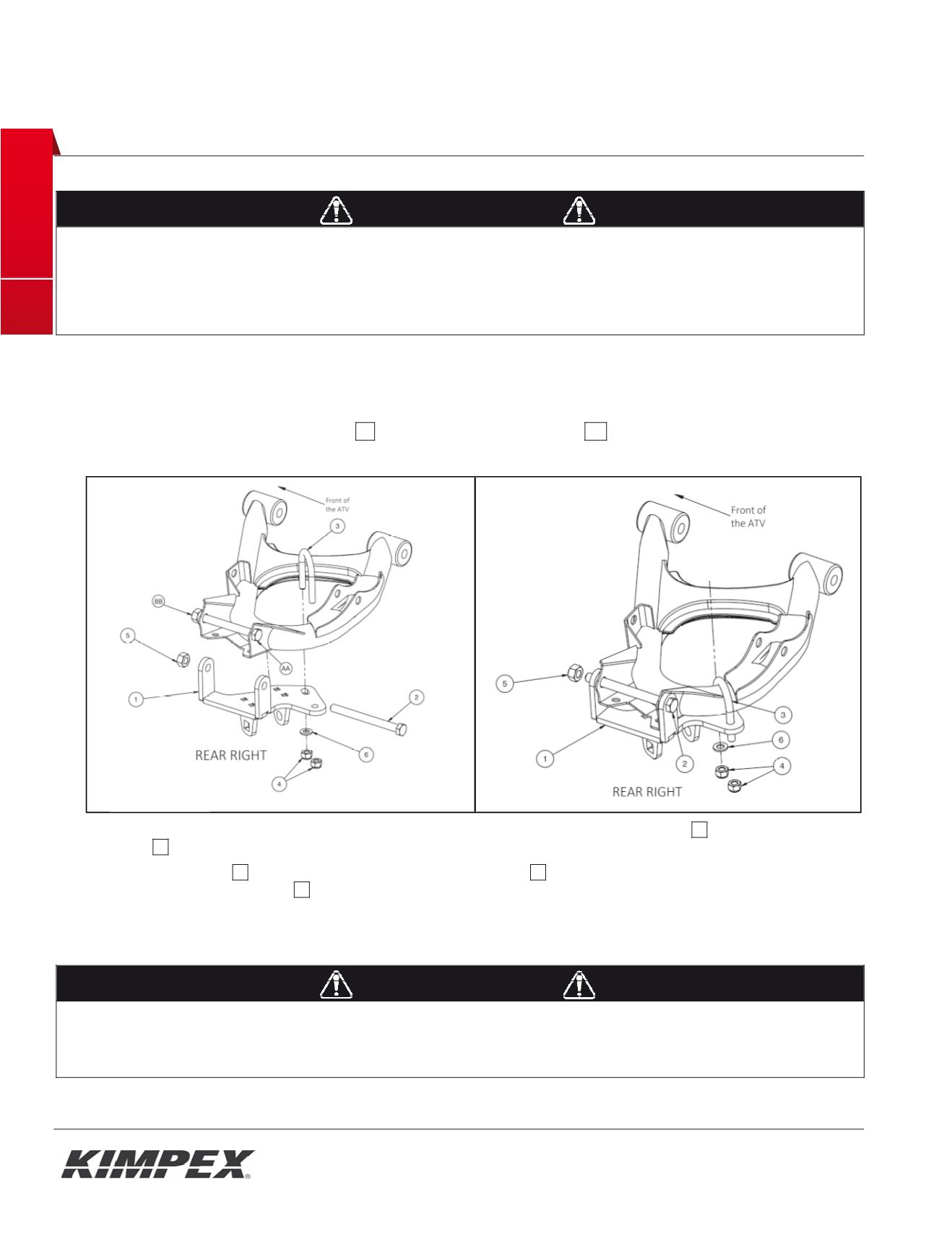

2) Position the rear-right Suspension bracket in place and fix it using M10-1.5 X 110-mm screw
02
and the M10-1.5
nylon nut
05
.
3) Place the M8 U-clamp
03
and fix it in place using an M8 flat washer
06
(place the washer in the oblong hole side) and
the two (2) M8-1.25 nylon nuts
04
.
4) Tighten all bolts in place.
WARNING
1.
Do not overtorque the bolts
. Some parts may be subject to deformations. If the bolts are too tight, safety aspects could be
compromised.
2.
Be careful: an incorrectly positioned Suspension bracket could give some play, which could make driving riskier as well as lead to
breakage to the vehicle, a loss of control and serious injuries.
A
Fig. 4
B
INSTAL AT ON MANUAL
FR T A RE R M TIN BR CKET KIT
KIMPEX N
°
3 01
FOR COMMANDER TRACK SYSTEM AND SPORTSMAN XP VEHICLE
KIMPEX INC.
/ 535 , rue St-Roch / Drum ondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 10 Walnut Stre t / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
2810484
A-2810484-EN
4
Rear suspension brackets instal ation
I
1.
The vehicle must be
immobilized
and the
engi e turned off
and cooled.
2.
Always wear
safety glasses
during installation, adjustment or repair.
3.
Please read and ensure you
have understood the warnings
and guidelines.
4.
Make sure the vehicle is
safely secured in place
by a syste dedicated to this use (jack stands and hoist) and that it is supported or
fixed on locations that are not likely to break, bend or slip. A hydraulic jack is not safe; nor is a log. The vehicle must be not able to move.
The installation requires that the vehicle is in two-wheel drive mode with the gearbox in neutral. After lifting the vehicle
and removing the wheels:
1) Insert the rear suspension bracket
01
into the suspension table of the vehicle, by sliding it in the direction indicated
by the
figure 4A
by
arrows 1 and 2.
2) After making sure that the front support bracket is well positioned under the suspension table tube, fix t e rear
suspension bracket
01
usi g the U-bolt
02
, the flat washer
04
(place the washer in the oblong hole side) and the two
(2) nylon nuts
03
. See
figure 4B
.
3) Tighten all bolts in place.
I
1.
Do not overtorque the bolts
. Some parts may be subject to deformations. If the bolts are too tight, safety aspects could be compromised.
2.
Be careful: an incorrectly positioned Suspension bracket could give some play, which could make driving riskier as well as lead to
breakage to the vehicle, a loss of control and serious injuries.
A
Fig. 4
B
