2/4
INSTALLATION MANUAL
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
°
375901
FOR COMMANDER TRACK SYSTEM AND SPORTSMAN XP VEHICLE
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810484
•
A-2810484-EN
2
FRONT A-ARM BRACKETS
REAR SUSPENSION BRACKETS
Réf. Description
N
o
d’article
Qté Réf. Description
N
o
d’article
Qté
1
Front clamping plate
2810437-1-2000
1
1
Rear-left suspension bracket
2810439-4
1
2
Front-left A-arm bracket
2810484-2
1
Rear-right suspension bracket
2810439-3
1
Front-right A-arm bracket
2810484-1
1
2
M8-1.25 X 34 mm U-bolt
S2213-J4461-002
1
3
M12-1.75 X 70 mm Cl. 8.8
Carriage bolt
S2411-M1270-031
1
3
M8-1.25 Nylon nut
S4186-M080M-021
2
4
M12-1.75 Cl.8.8
Nylon nut
S4186-M120P-021
1
4
M8 Flat washer
S4612-M0840-0K1
1

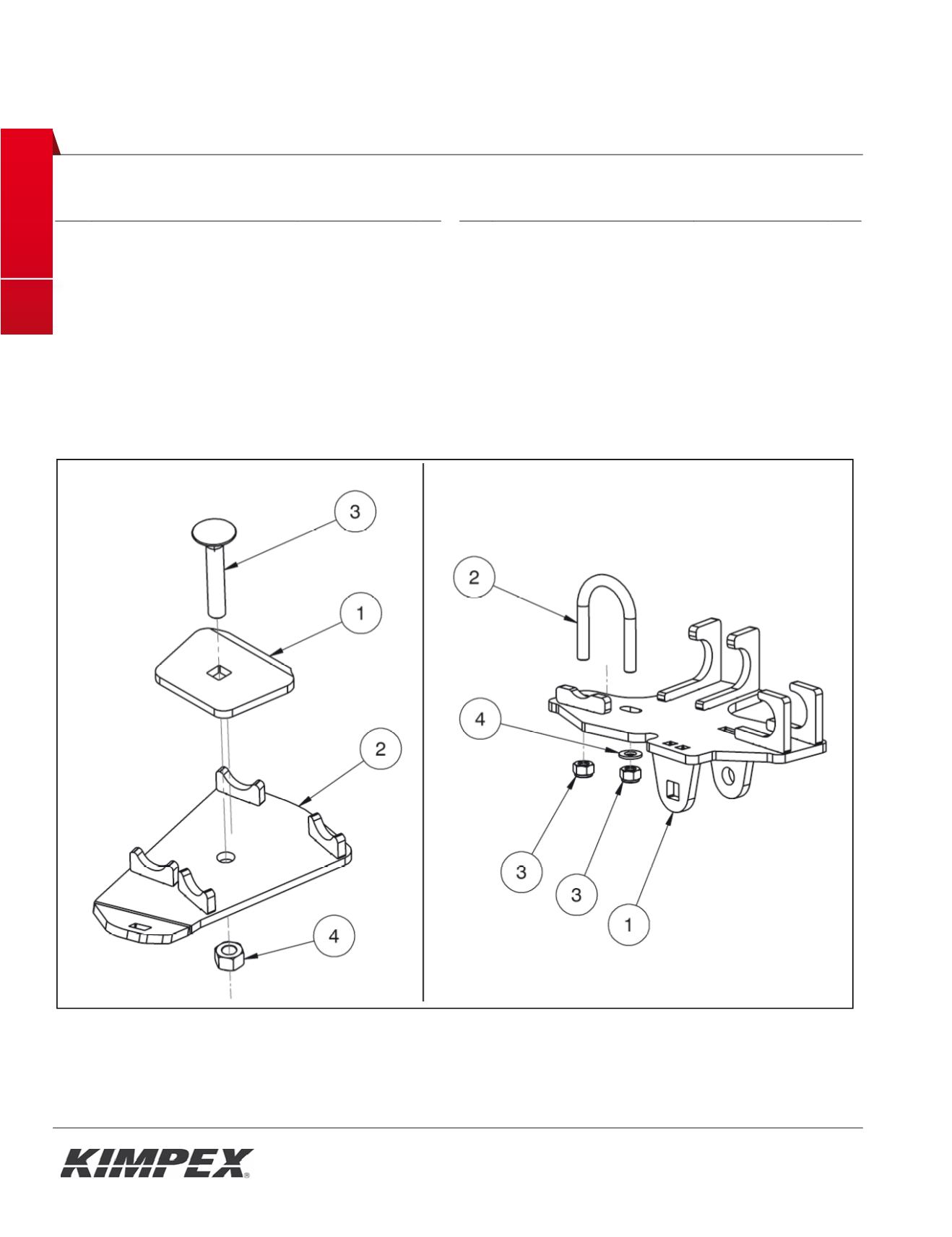

Fig. 1
