FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
375419
For Commander WIDE TRACK, WTX, and TREX 2.0 Track Kits
MOUNTING INSTRUCTIONS
8
Rear of the ATV
2009 SPORTSMAN XP MODELS
REAR A-ARM BRACKET INSTALLATION
(see sketch I)
WARNING:
Prior to installation, turn off the engine, put
in two-wheel driving mode, and block the wheels.
1)
Raise the rear of the ATV off the ground and remove the wheels.
WARNING:
When the ATV is raised, make sure that it is
properly secured/supported to prevent it fromaccidentally
falling during the installation of the sub-tables. If not
properly secured/supported, serious physical injury could
occur.
2)
Remove the rear left CV shield. Do not discard. They will be
reinstalled later.
3)
Place the rear left A-arm bracket (#
9
) below the rear lower a-arm
and fasten the exterior part of the A-arm bracket using the large
rear A-arm clamping plate (square holes) (#
8
),
(2) 3/8” nc X 2-1/4”
carriage bolts (#
12
), and
(2) 3/8” nc
self-locking nuts (#
15
) (screw
the first threads only).
4)
Fasten the interior part of the A-arm bracket (#
9
) to the rear
lower a-arm using the short rear A-arm clamping plate (round
holes) (#
7
),
(2) 3/8” nc X 2-1/4”
carriage bolts (#
12
), and
(2) 3/8” nc
self-locking nuts (#
15
) (screw the first threads only).
5)
Tighten the bolts and torque to 25 ft-lbs.
IMPORTANT:
Tighten in a manner not to permanently
deform the assembly

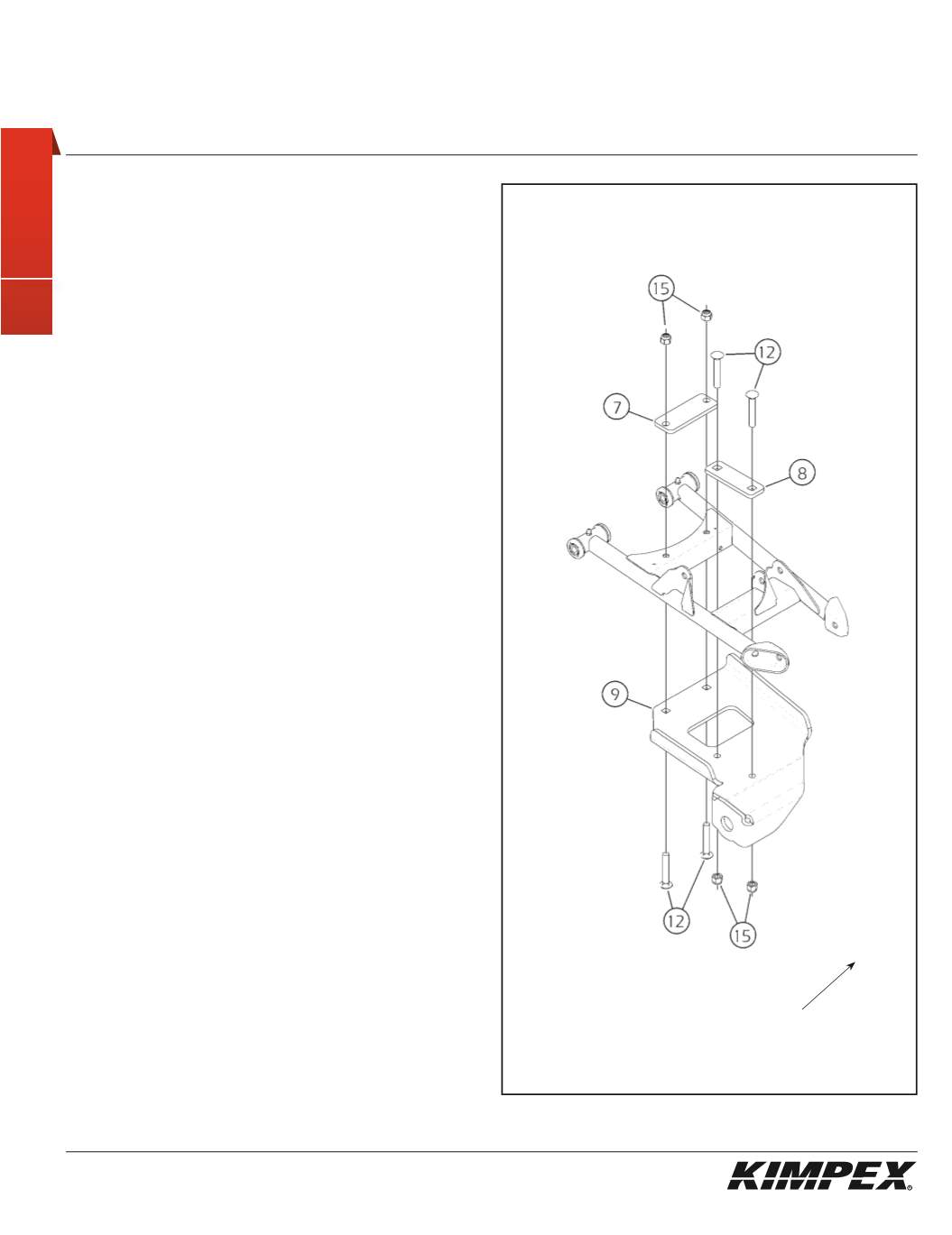

sketch I
LEFT
REAR VIEW
