2/11
ATV
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain, New York / 12919
Lithographié au Canada / Litho’d in Canada
2810365
A-2810365 Rev. A
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
375419
For Commander WIDE TRACK, WTX, and TREX 2.0 Track Kits
MOUNTING INSTRUCTIONS
2
FRONT LEFT AND RIGHT A-ARM BRACKET
Ref. Description
Item No.
Qty
1
Large ball joint spacer
2510039-1-20-2000
2
2
Short ball joint spacer
2510039-1-20-4000
2
3
Tightening spacer
Q2212-10082
2
4
Main axle adapter
2810153-5000
2
5
Front anti-rotation assembly
2810203-50
2
6
Front A-arm clamping plate
2510287-1-2000
2
7
M10-1.25 “T” nut
2810287-1-3000
8
8
Front left A-arm bracket
2810287-2-1000
1
Front right A-arm bracket
2810287-1-1000
1
9
3/8” nc X 3-1/2” hex bolt
S1711-00628-052
2
10
5/16” nc X 2-1/4” carriage bolt
S2412-0D036-002
8
11
1/2” nc X 2-1/2” carriage bolt
S2412-0G040-0A2
2
Ref. Description
Item No.
Qty
12
3/8” nc X 2-1/4” Allen socket
machine screw
S3161-B0D36-000
4
13
1/2” nf nut
S4111-20800-022
2
14
5/16” nc self-locking nut
S4186-10500-022
8
15
3/8” nc self-locking nut
S4186-10600-022
6
16
1/2” nc self-locking nut
S4186-10800-022
2
17
3/8” dia flat washer
S4612-00600-0S1
2
18
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082
4
19
1/2” nf ball joint
S9113-C0500-002
2
20
Neoprene flat washer
7810304-2000
2

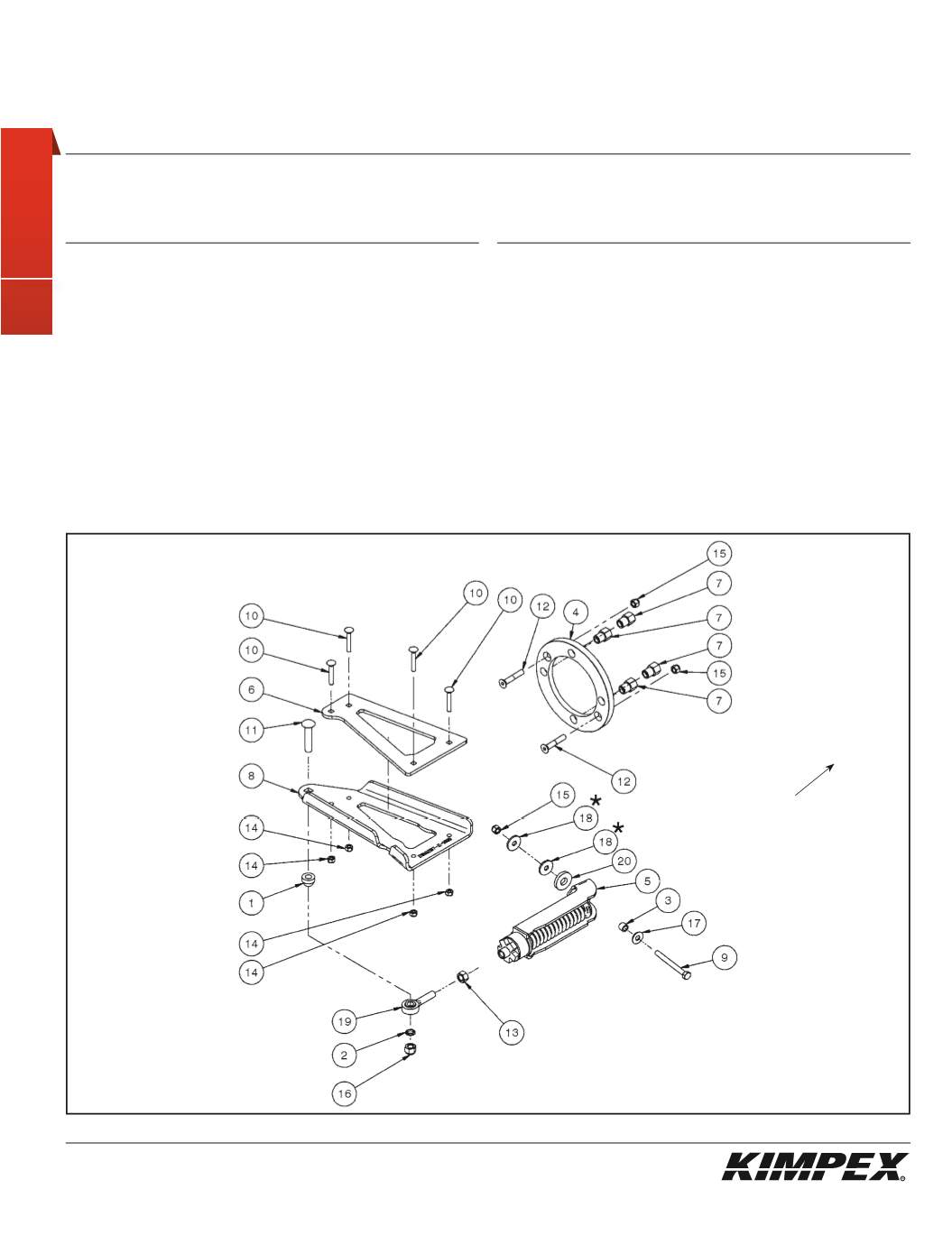

LEFT SIDE VIEW
Front of
the ATV
*
Commander WIDE TRACK and WTX Models Only.
sketch A
