FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
375418
For Commander Wide Track, WTX, and Trex 2.0 Track Kits
MOUNTING INSTRUCTIONS
9
Rear of
the ATV
REAR A-ARM BRACKET INSTALLATION
2008 - 2009 MODELS
(see sketch J)
WARNING:
Prior to installation, turn off the engine, put
in two-wheel driving mode and the transmission in
neutral, and block the wheels.
1)
Raise the rear of the ATV off the ground and remove the wheels.
WARNING:
When the ATV is raised, make sure that it is
properly secured/supported to prevent it fromaccidentally
falling during the installation of the A-arm brackets. If
not properly secured/supported, serious physical injury
could occur.
2)
Remove the rear left CV shield. Do not discard. They will be
reinstalled later.
3)
Install the rear left A-arm bracket (#
1
) under the lower rear
A-arm and fasten it using the
(2) 3/8” nc X 2-1/4”
hex bolts (#
6
), the
(2) 3/8” dia
flat washers (#
13
), and the
(2) 3/8” nc
self-locking nuts
(#
7
). Torque to 20 ft-lbs.
4)
Install the rear A-arm clamping plate (#
19
) above the lower rear
A-arm and fasten it to the A-arm bracket (#
1
) using the
(2)
3/8” nc X 2-1/2”
carriage bolts (#
20
) and the
(2) 3/8” nc
self-locking
nuts (#
7
). Torque to 20 ft-lbs.
IMPORTANT:
Tighten in a manner not to permanently
deform the assembly.
5)
Repeat
steps 1
to
4
for the opposite side.
6)
Go to
“REAR ANTI-ROTATION INSTALLATION”
section
(page 10) for the next steps.

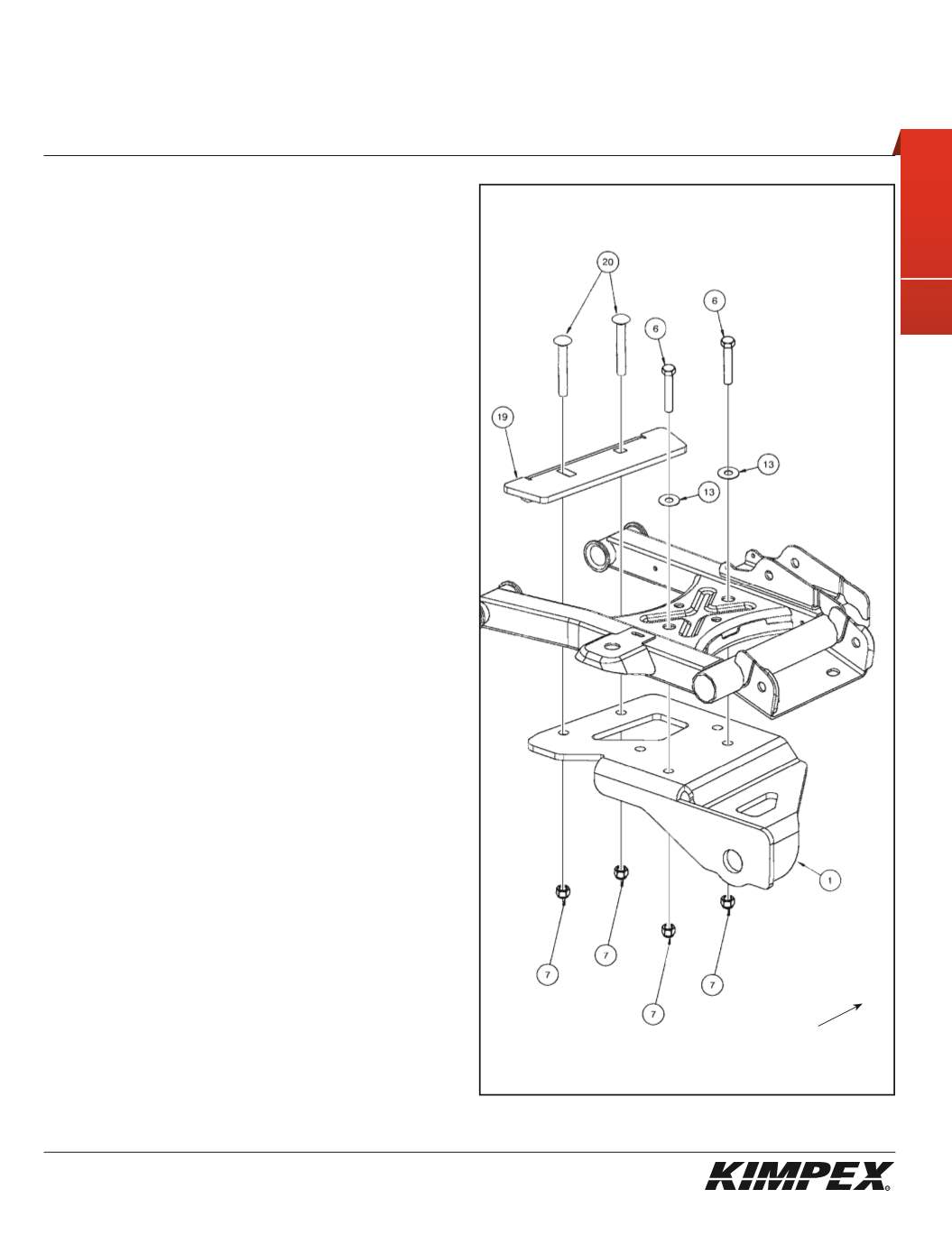

sketch J
LEFT
REAR
VIEW (2008 - 2009 MODELS)
