2/12
ATV
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain, New York / 12919
Lithographié au Canada / Litho’d in Canada
2810342
A-2810342 Rev. B
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
375418
For Commander Wide Track, WTX, and Trex 2.0 Track Kits
MOUNTING INSTRUCTIONS
2
FRONT LEFT AND RIGHT A-ARM BRACKETS
Ref. Description
Item No.
Qty
1
Front left A-arm bracket
2810212-2000
1
Front right A-arm bracket
2810212-1000
1
2
Front A-arm clamping plate
2810212-5000
2
3
3/8” nc “T” nut
2810153-9000
8
4
Main axle adapter
2810153-5000
2
5
Clamping block
2510039-1-20-1000
2
6
3/8” nc X 2” carriage bolt
S2412-0E032-0A2
2
7
3/8” dia flat washer
S4612-00600-002
2
8
3/8” nc self-locking nut
S4186-10600-022
16
9
3/8” nc X 2” hex bolt
S1711-00616-052
8
10
3/8” nc X 2-1/4” Allen socket
machine screw
S3161-B0D36-000
4
11
Short ball joint spacer
2510039-1-20-4000
2
Ref. Description
Item No.
Qty
12
Large ball joint spacer
2510039-1-20-2000
2
13
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082
4
14
3/8” nc X 3-3/4” hex bolt
S1711-00630-052
2
15
1/2” nc self-locking nut
S4186-10800-022
2
16
1/2” nc X 2-1/2” carriage bolt
S2412-0G040-0A2
2
17
Tightening spacer
Q2212-10082
2
18
Front anti-rotation assembly
7810304-10A
2
19
1/2” nf nut
S4111-20800-022
2
20
1/2” nf ball joint
S9113-C0500-002
2
21
Neoprene flat washer
7810304-2000
2
22
3/8” dia flat washer GR8
S4612-00600-0S1
2

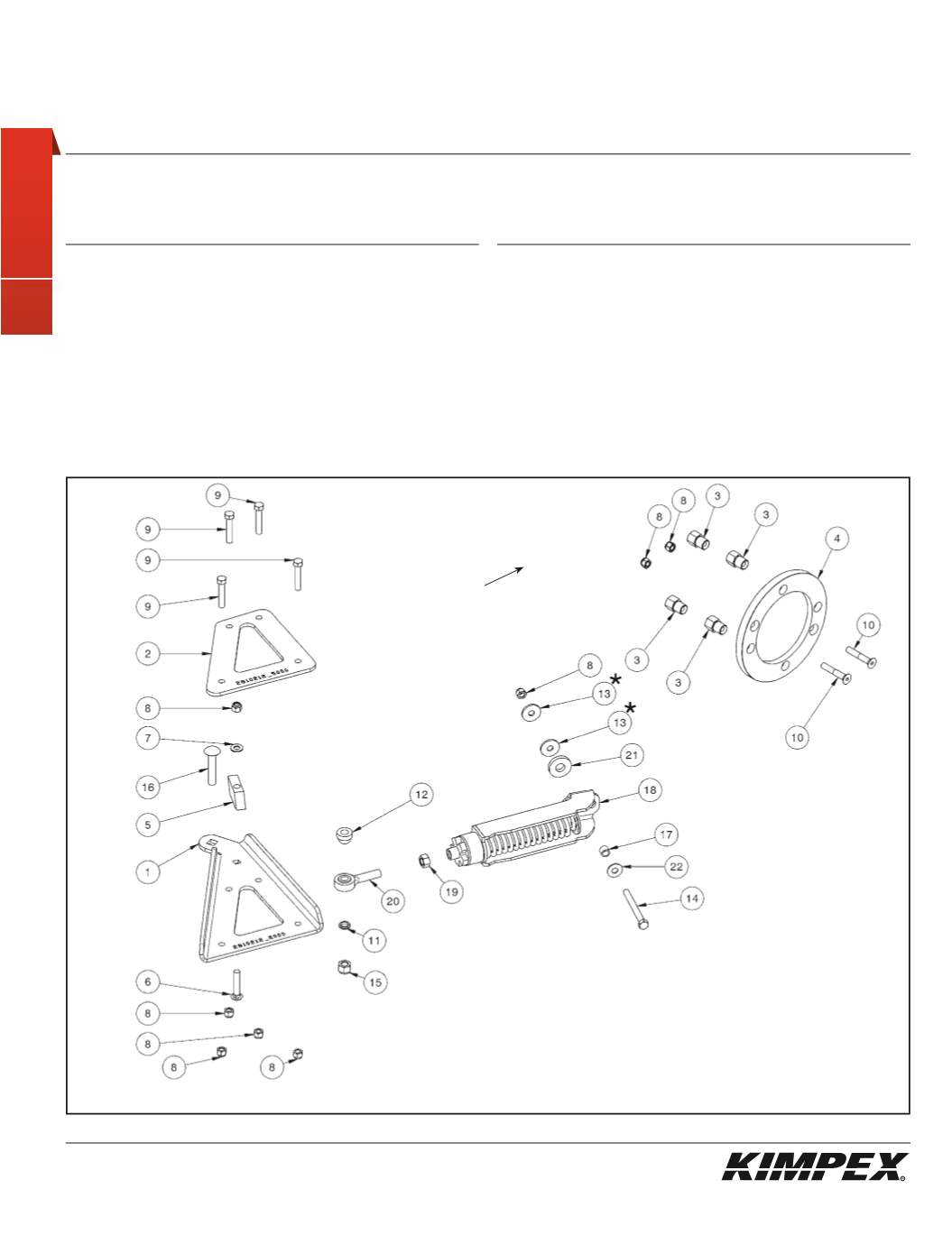

sketch A
LEFT SIDE VIEW
Front of
the ATV
*
Commander Wide Track and WTX Models Only.
