FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
375418
For Commander Wide Track, WTX, and Trex 2.0 Track Kits
MOUNTING INSTRUCTIONS
12
COMMANDER TREX 2.0
REAR ANTI-ROTATION INSTALLATION
(see sketch N)
1)
Assemble the free extremity of the rear anti-rotation
(#
8
) to the hole made for this purpose in the frame of
the Track Kit using the
3/8” nc X 1”
hex bolt (#
21
), the
3/8” dia
lock washer (#
22
), the
3/8” dia
flat washer (#
23
),
and the tightening spacer (#
9
).
Apply a tightening torque of 23 ft-lbs.
2)
Repeat
step 1
for the opposite side.
NOTE:
Refer to the track kit manual to complete
the installation.

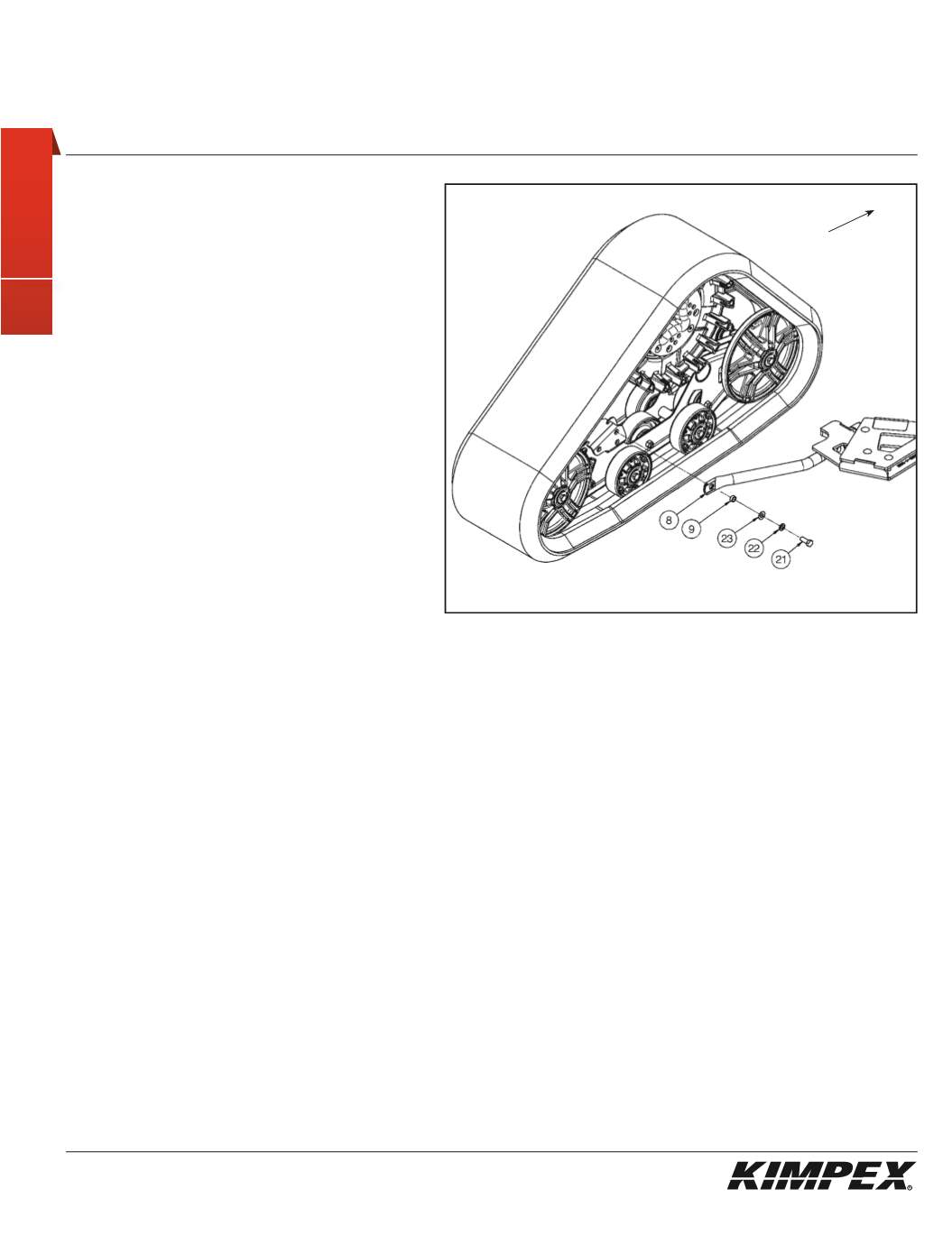

sketch N
LEFT
REAR VIEW
Front of the ATV
