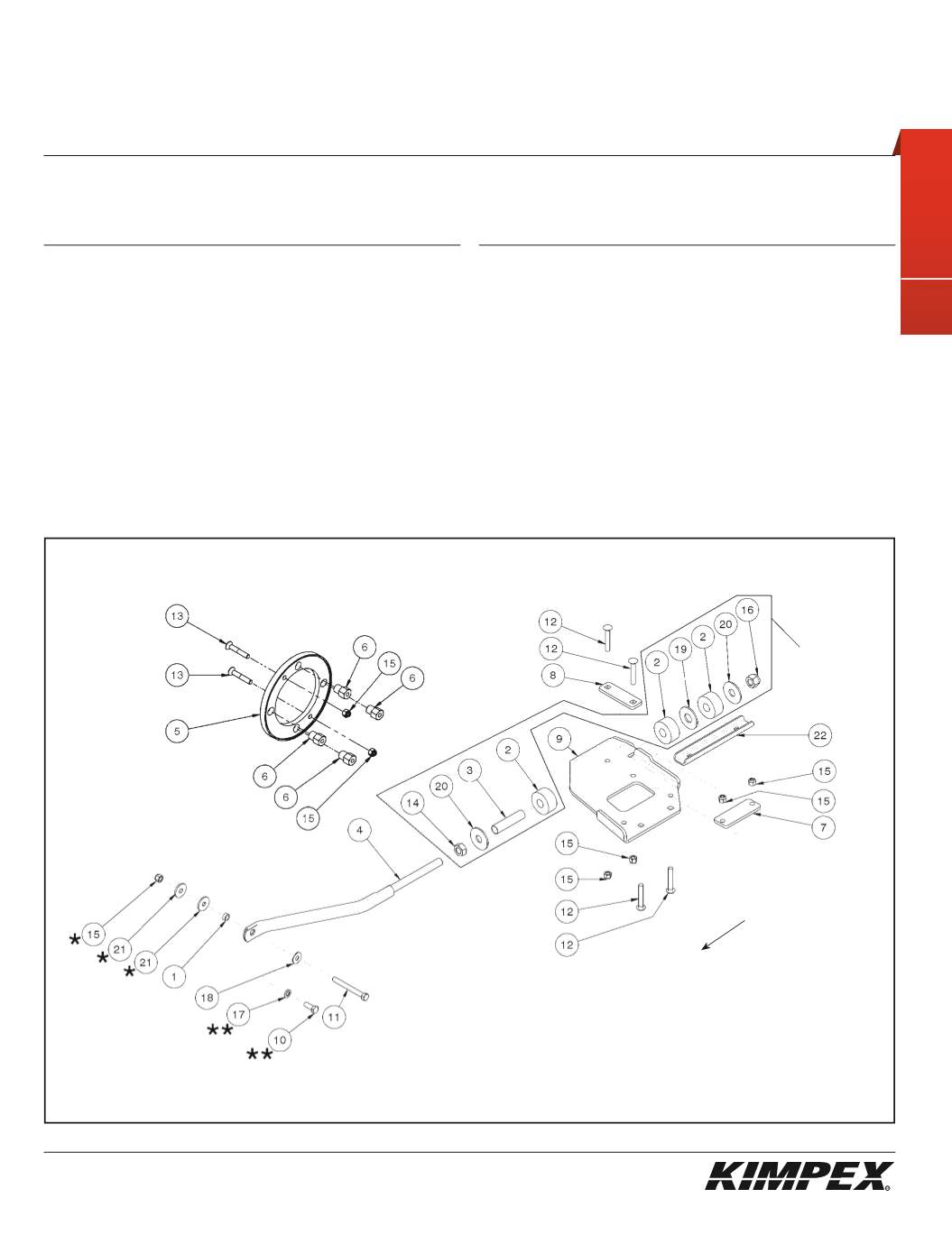

FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
375419
For Commander WIDE TRACK, WTX, and TREX 2.0 Track Kits
MOUNTING INSTRUCTIONS
3
373032
REAR LEFT AND RIGHT A-ARM BRACKET
Ref. Description
Item No.
Qty
1
Tightening spacer
Q2212-10082
2
2
Rubber bushing
2510039-1-30-6000
6
3
Bushing spacer tube
2510039-3-20-2000
2
4
Rear anti-rotation tube
7810304-40-1000
2
5
Main axle adapter
2810153-5000
2
6
M10-1.25 “T” nut
2810287-1-3000
8
7
Large Rear A-arm clamping plate
(round holes)
2510287-3-2000
2
8
Short Rear A-arm clamping plate
(square holes)
2510287-3-3000
2
9
Rear left A-arm bracket
2810287-4-1000
1
Rear right A-arm bracket
2810287-3-1000
1
10
3/8” nc X 1-1/4” hex bolt
S1711-00610-052
2
11
3/8” nc X 4” hex bolt
S1711-00632-052
2
12
3/8” nc X 2-1/4” carriage bolt
S2412-0E036-0A2
8
Ref. Description
Item No.
Qty
13
3/8” nc X 2-1/4” Allen socket
machine screw
S3161-B0D36-000
4
14
5/8” nc nut
S4111-11000-022
2
15
3/8” nc self-locking nut
S4186-10600-022
14
16
5/8” nc self-locking nut
S4186-11000-022
2
17
3/8” dia lock washer
S4511-00600-002
2
18
3/8” dia flat washer
S4612-00600-002
2
19
3/4” I.D. X 2” O.D. X 1/8”
flat washer
S4612-01200-022
2
20
17mm I.D. X 50mm O.D. X 3mm
flat washer
S4612-M1600-01W
4
21
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082
4
22
Rear A-arm clamping plate
2810323-3-2000
2
sketch B
LEFT SIDE VIEW
Rear of
the ATV
*
Commander WIDE TRACK and WTX Models Only.
**
Commander TREX 2.0 Models Only.
