FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
375419
For Commander WIDE TRACK, WTX, and TREX 2.0 Track Kits
MOUNTING INSTRUCTIONS
5
Front of the ATV
FRONT A-ARM BRACKET INSTALLATION
(see sketch D)
WARNING:
Prior to installation, turn off the engine, put
in two-wheel driving mode, and block the wheels.
1)
Raise the front of the ATV off the ground and remove the
wheels.
WARNING:
When the ATV is raised, make sure that it is
properly secured/supported to prevent it fromaccidentally
falling during the installation of the sub-tables. If not
properly secured/supported, serious physical injury could
occur.
2)
Remove the front left CV shield. Do not discard. They will be
reinstalled later.
3)
Insert the
1/2” nc X 2-1/2”
carriage bolt (#
11
) into the hole
intended in the front left A-arm bracket (#
8
).
4)
Install the front left A-arm bracket (#
8
) under the lower front
a-arm so that the two parts fit snugly.
5)
Install the front left A-arm clamping plate (#
6
) above the lower
front a-arm and fasten it to the A-arm bracket (#
8
) using the
(4)
5/16” nc X 2-1/4”
carriage bolts (#
10
) and the
(4) 5/16” nc
self-locking
nuts (#
14
). Tighten the bolts and make sure they fit snugly.
Torque to 20 ft-lbs.
IMPORTANT:
Tighten in a manner not to permanently
deform the assembly.
6)
Repeat
steps 2
to
5
for the opposite side.

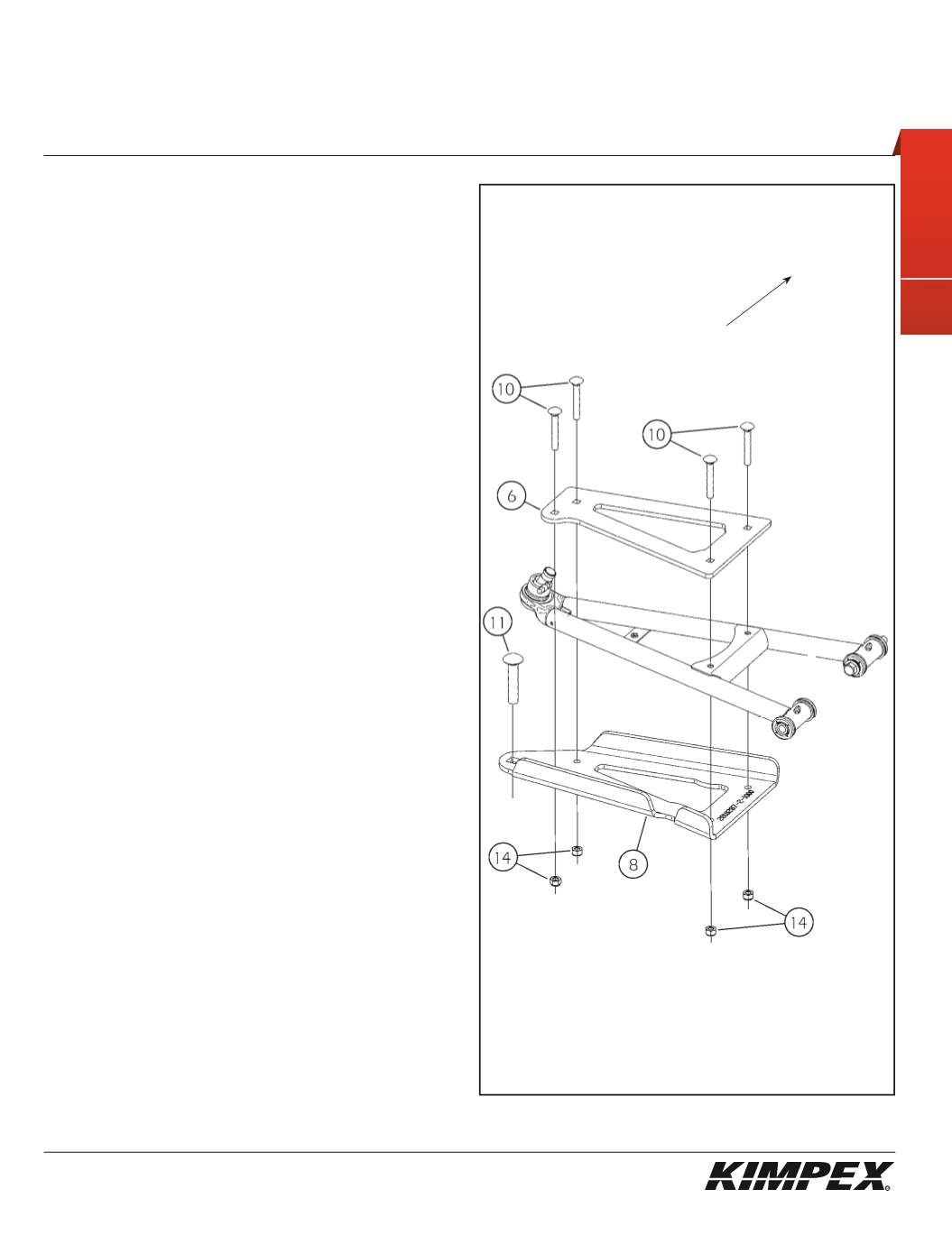

sketch D
LEFT
FRONT VIEW
