ATV
INSTALLATION MANUAL
0.44" / 11.1mm MAIN AXLE ADAPTER SET
KIMPEX N
°
375046
FOR COMMANDER WIDE TRACK, WTX ET TREX TRACK SYSTEM
375047
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810479-EP-111
•
A-2810479-EP-111-EN
2
INSTALLATION
Installation of the main axle adapter
CAUTION
: The installation of the anti-rotation arm must be done before the installation of the track system on the
vehicle.
1) Remove and discard one bolt retaining the sprocket to main axle track system, keep the flat washers. See
figure 2.
WARNING: Pay attention to the orientation given to main axle adapter
01
during installation. The lip of it has to
marry arround the main axis.
2) Position the main axle adapter
01
and set using two (2) Allen socket machine screws
03
, the flat washers
a
removed
in
step 1
and the two (2) nylon nuts
04
. Torque at 20 ft-lbs.
3) Use the four (4) T nuts
02
to install the track system onto the hub of the vehicle. Torque at 25 ft-lbs.
NOTE : Recheck torque of the wheel nuts
03
after one hour of use.
4) Repeat
steps 1
to
3
for the opposite side.
NOTE : The operations described in steps 1 to 4, apply to the rear and the front of the vehicle (both sides) .
NOTE : The operations described in steps 1 to 4 apply, even if you have T nuts metric or imperial.

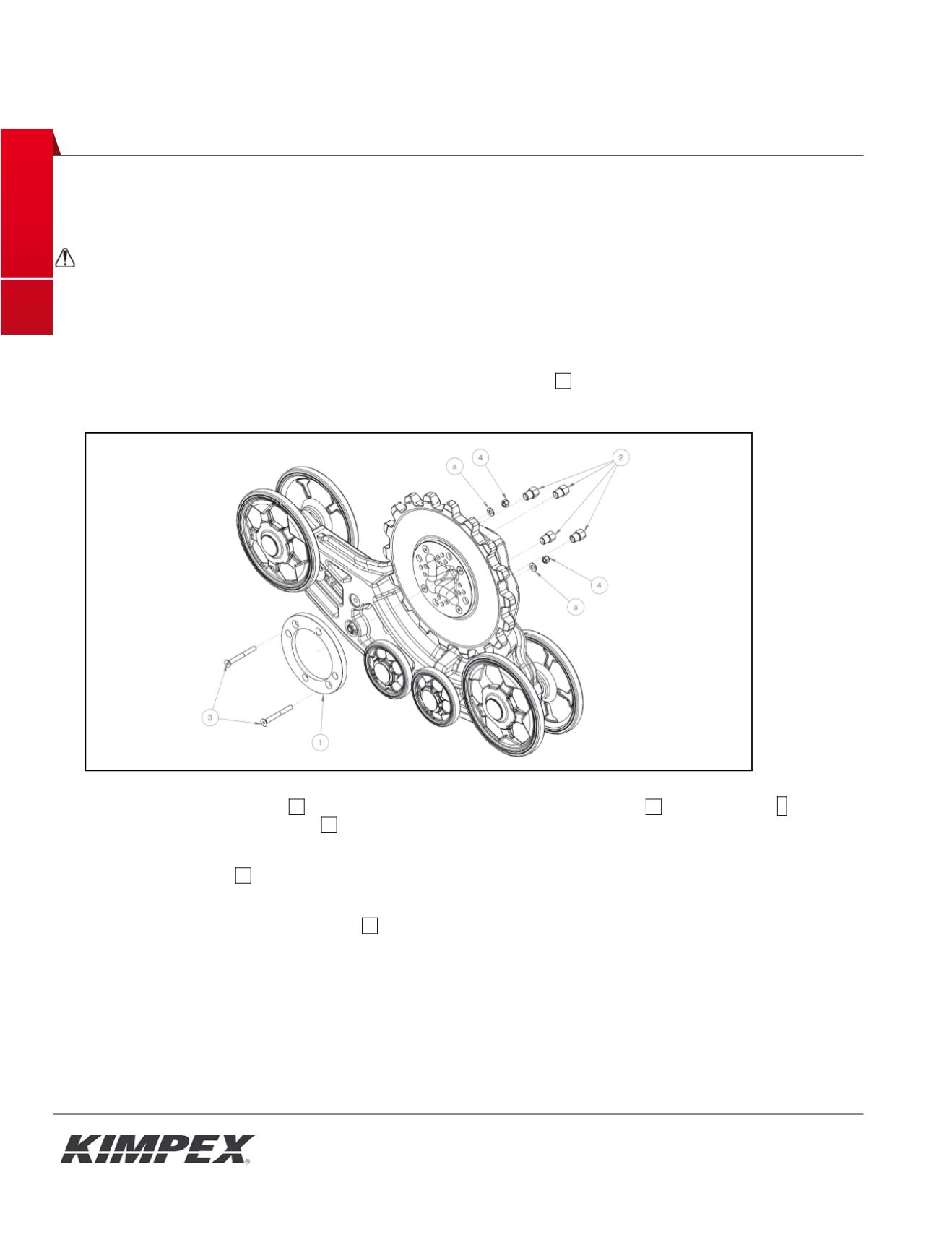

Fig. 2
