2/6
ATV
MANUEL D’INSTALLATION
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
°
375906
FOR COMMANDER TRACK SYSTEM AND OUTLANDER 2012 VEHICLE
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810490
•
A-2810490-EN
2
FRONT A-ARM BRACKETS
MOUNT PLATE
Réf. Description
N
o
d’article
Qté Réf. Description
N
o
d’article
Qté
1
Front-left A-arm bracket
2810405-2-1000
1
1
Mount plate
2810405-3-1000
1
Front-right A-arm bracket
2810405-1-1000
1
2
Mount plate support
2810405-3-2000
2
2
Front clamping plate
2810405-2-2000
1
3
3/8"-16 x 1-1/4" Carriage bolt
S2412-0
E
020-0A2
4
3
Left steering limiter
2810405-2-30000
1
4
3/8"-16 Nylon nut
S4186-10600-022
4
Right steering limiter
2810405-1-3000
1
4
5/16-18 x 1-1/8" U-bolt
S2215-D1835-002
2
5
5/16"-18 x 1-3/4" Carriage bolt
S2412-0D028-0A2
2
6
5/16"-18 Nylon nut
S4186-10500-022
6
7
5/16" Flat washer
S4612-00500-055
2

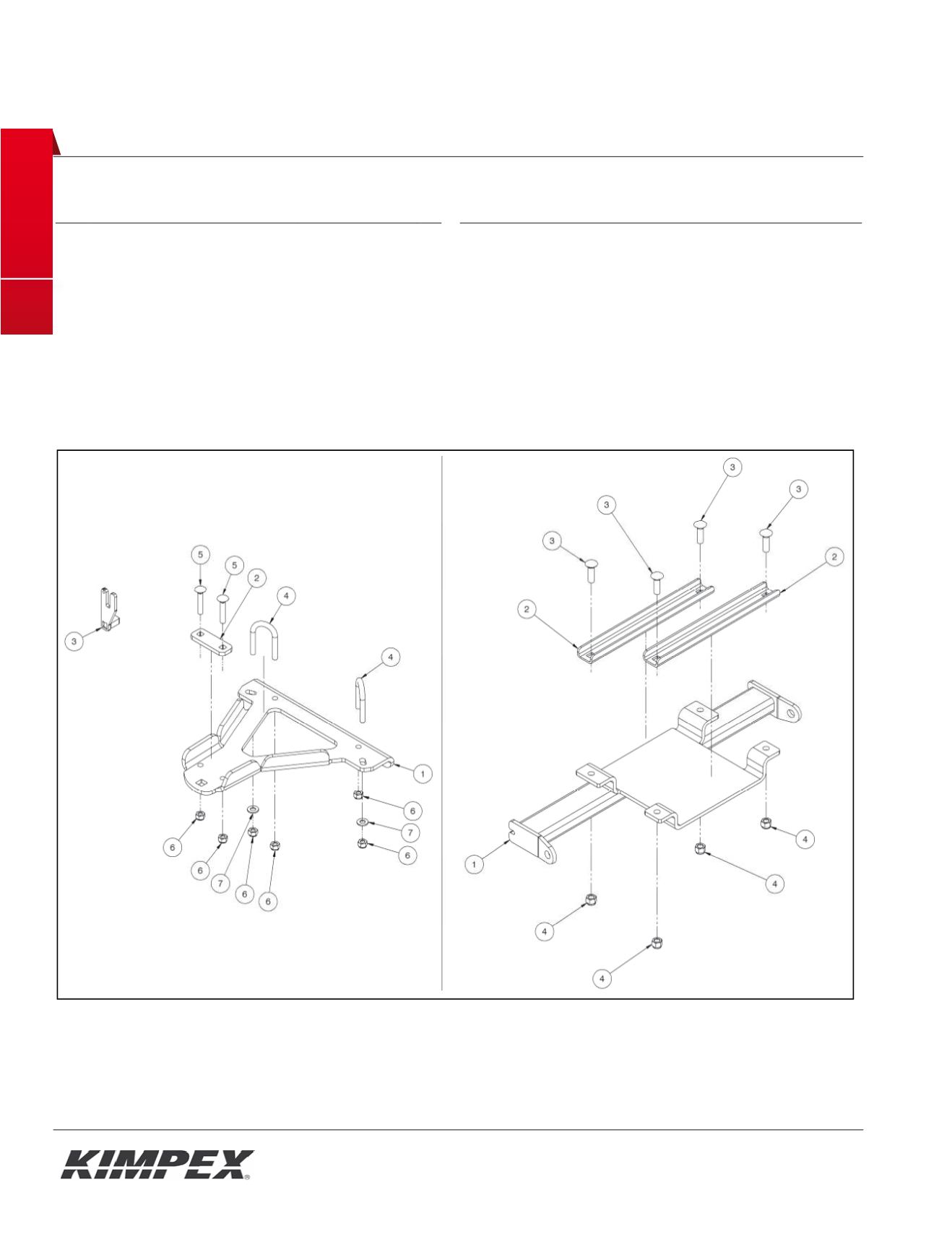

Fig. 1
INSTAL AT ON MANUAL
FR T A RE R M TIN BR CKET KIT
KIMPEX N
°
3 1
FOR COMMANDER TRACK SYSTEM AND SPORTSMAN XP VEHICLE
KIMPEX INC.
/ 535 , rue St-Roch / Drum ondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 10 Walnut Stre t / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810484
•
A-2810484-EN
4
Rear suspension brackets installation
WARNING
1.
The vehicle must be
immobilized
and the
engine turned off
and cooled.
2.
Always wear
safety glasses
during installation, adjustment or repair.
3.
Please read and ensure you
have understood the warnings
and guidelines.
4.
Make ur the vehicle is
safely secured in place
by a system dedicated to this use (jack stands and hoist) and that it is supported or
fixed on locations that are not likely to break, bend or slip. A hydraulic jack is not safe; nor is a log. The vehicle must be not able to move.
The installation requires that the vehicle is in two-wheel drive mode with the gearbox in neutral. After lifting the vehicle
and removing the wheels:
1) Insert the rear suspension bracket
01
into the suspension table of the vehicle, by sliding it in the direction indicated
by the
figure 4A
by
arrows 1 and 2.
2) After making sure that the front support bracket is well positioned under the suspension table tube, fix the rear
suspension bracket
01
using the U-bolt
02
, the flat washer
04
(place the washer in the oblong hole side) and the two
(2) nylon nuts
03
. See
figure 4B
.
3) Tighten all bolts in place.
WARNING
1.
Do not overtorque the bolts
. Some parts may be subject to deformations. If the bolts are too tight, safety aspects could be compromised.
2.
Be careful: an incorrectly positioned Suspension bracket could give some play, which could make driving riskier as well as lead to
breakage to the vehicle, a loss of control and serious injuries.
A
Fig. 4
B
