FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
374510
For Commander TREX UTV Track Kit
MOUNTING INSTRUCTIONS
8
REAR ANTI-ROTATION INSTALLATION
(see sketch I)
1)
Assemble the free extremity of the rear anti-rotation
(#
7
) to the hole made for this purpose in the frame of
the Track Kit using the
3/8” nc X 4-1/2”
hex bolt (#
13
), the
3/8” dia (yellow zinc plated)
flat washer (#
12
), the tightening
spacer (#
11
), and the
3/8” nc
self-locking nut (#
17
).
Apply a tightening torque of 23 ft-lbs.
2)
Repeat
step 1
for the opposite side.
NOTE :
Refer to the Track Kit manual to complete
the installation.

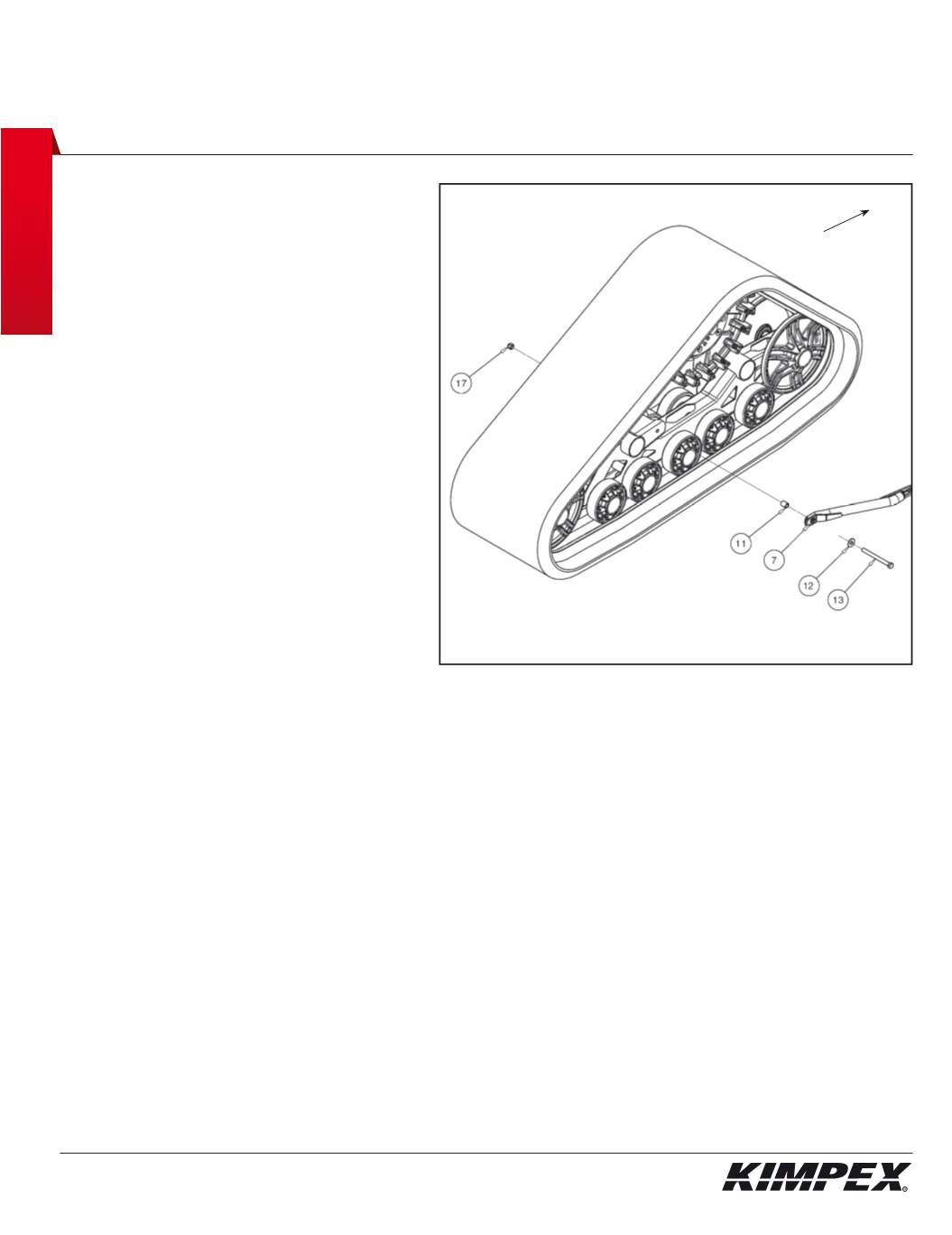

sketch I
LEFT
REAR VIEW
Front of the ATV
