FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
374510
For Commander TREX UTV Track Kit
MOUNTING INSTRUCTIONS
5
FRONT A-ARM BRACKET INSTALLATION
(see sketch D)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode and the transmission in
neutral, and block the wheels.
1)
Raise the front of the vehicle off the ground and remove the
wheels.
WARNING :
When the vehicle is raised, make sure that
it is properly secured/supported to prevent it from
accidentally falling during the installation of the A-arm
brackets. If not properly secured/supported, serious
physical injury could occur.
2)
Remove the front left CV shield. Do not discard. They will be
reinstalled later.
3)
Insert the
1/2” nc X 2-3/4”
carriage bolt (#
14
) into the hole
intended in the front left A-arm bracket (#
8
).
4)
Install the front left A-arm bracket (#
8
) under the lower front
A-arm so that the two parts fit snugly.
5)
Install the front A-arm clamping plate (#
9
) through the lower
front A-arm and fasten it to the A-arm bracket (#
8
) using a
1/2” nc X 2-3/4”
carriage bolt (#
14
), the
1/2” dia (yellow zinc plated)
flat
washer (#
6
), and the
1/2” nc
self-locking nut (#
5
).
Install the
(2) 5/16” nc X 2-3/16”
U-bolts (#
11
) above the lower front
A-arm and fasten it to the A-arm bracket (#
8
) using the
(4)
5/16” dia
flat washers (#
4
) and the
(4) 5/16” nc
self-locking nuts
(#
17
).
Torque the
5/16" nc
bolts to 11 ft-lbs and the
1/2" nc
bolts to 48
ft-lbs.
IMPORTANT :
Tighten in a manner not to permanently
deform the assembly.
6)
Repeat
steps 2
to
5
for the opposite side.

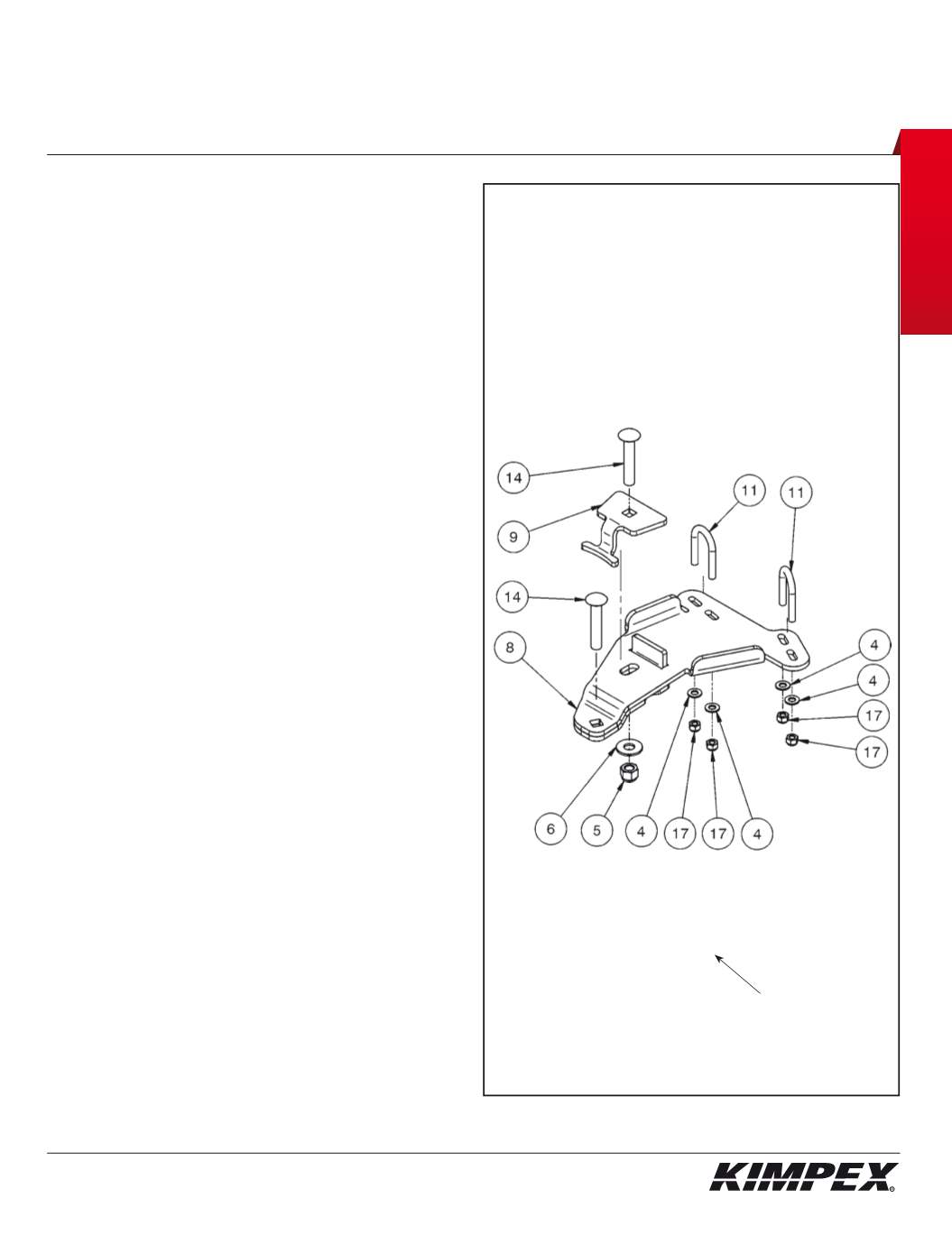

sketch D
LEFT
FRONT VIEW
Front of the ATV
