3/8
ATV
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain, New York / 12919
Lithographié au Canada / Litho’d in Canada
2810408
A-2810408
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
374510
For Commander TREX UTV Track Kit
MOUNTING INSTRUCTIONS
3
REAR LEFT AND RIGHT A-ARM BRACKET
Ref. Description
Item No.
Qty
10
Rear right A-arm bracket
2810408-3-1000
1
Rear left A-arm bracket
2810408-4-1000
1
11
Tightening spacer
Q2212-10093
2
12
3/8” dia flat washer
(yellow zinc plated)
S4612-00600-0S1
2
13
3/8” nc X 4-1/2” hex bolt
S1711-00636-022
2
14
3/8” nc X 2-1/4” carriage bolt
S2412-0E040-0A2
8
15
3/8” dia flat washer
S4612-00600-002
4
16
5/8” nc nut
S4111-11000-052
2
17
3/8” nc self-locking nut
S4186-10600-022
14
18
5/8” nc self-locking nut
S4186-11000-022
2

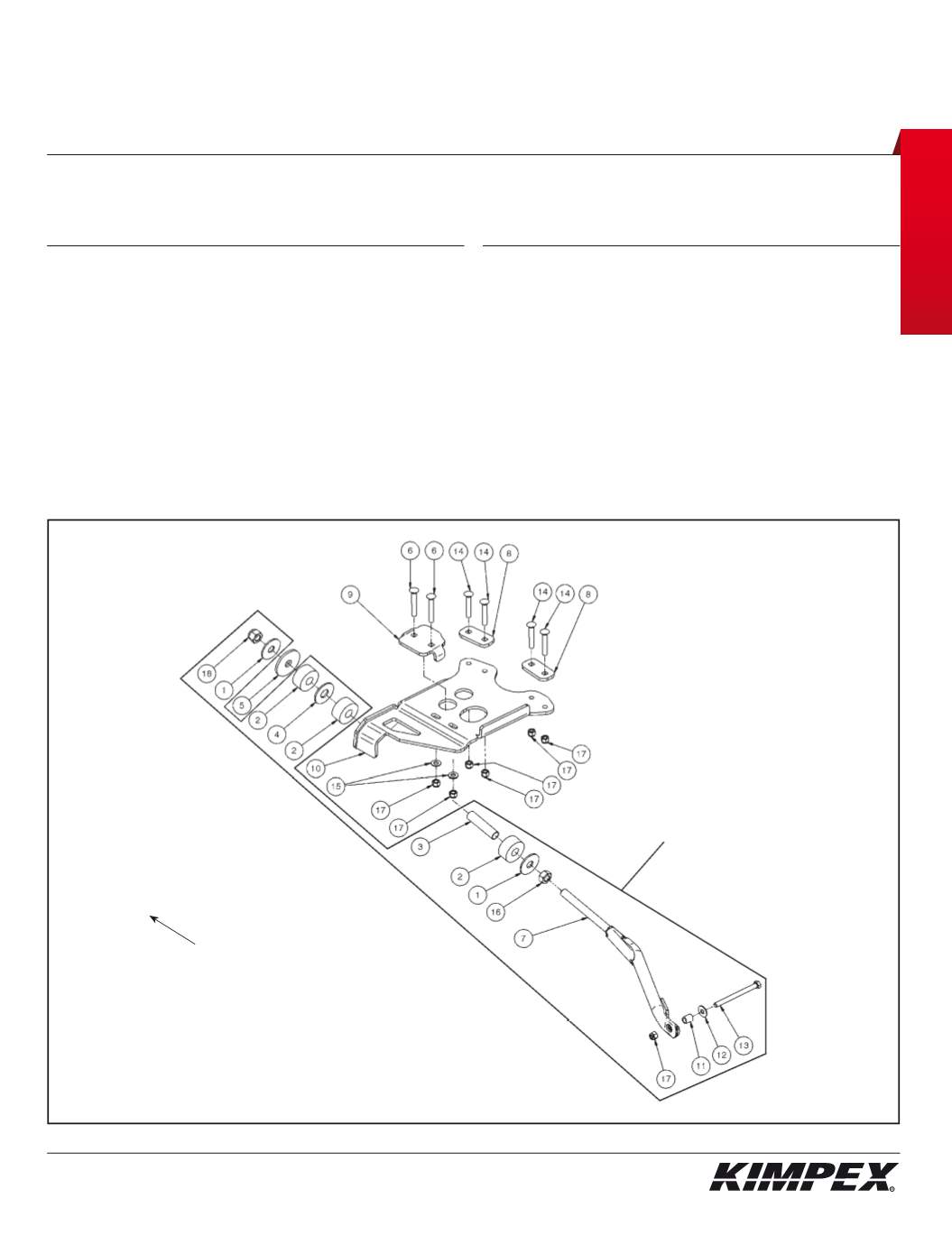

sketch B
LEFT SIDE VIEW
Front of
the ATV
7810182-1
373032
Ref. Description
Item No.
Qty
1
17mm I.D. X 50mm O.D. X 3mm
flat washer
S4612-M1600-01W
4
2
Rubber bushing
2510039-1-30-6000
6
3
Bushing spacer tube
2510039-3-20-2000
2
4
3/4” I.D. X 2” O.D. X 1/8”
flat washer
S4612-01200-022
2
5
Support washer
2810371-3-6000
2
6
3/8” nc X 2-1/2” carriage bolt
S2412-0E040-0A2
4
7
Rear anti-rotation tube
7810304-30-1000
2
8
Rear inner A-arm clamping plate 2810247-3-2000
4
9
Rear right outer A-arm clamping
plate
2810408-3-2000
1
Rear left outer A-arm clamping
plate
2810408-4-2000
1
