KIMPEX INC. / 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA / 100 Walnut Street / Champlain, New York / 12919
Lithographié au Canada / Litho’d in Canada
2810408
A-2810408
FRONT AND REAR A-ARM BRACKET KIT Kimpex # 374510
For Commander TREX UTV Track Kit
MOUNTING INSTRUCTIONS
2
FRONT LEFT AND RIGHT A-ARM BRACKET
Ref. Description Item No. Qty
10 3/8” nc X 4” hex bolt S1711-00632-052 2
11 5/16” nc X 2-3/16” U-bolt S2215-D1835-002 4
12 Neoprene flat washer 7810304-2000 2
13 1/2” nf ball joint S9113-C0500-002 2
14 1/2” nc X 2-3/4” carriage bolt S2412-0G048-0A2 4
15 3/8” dia flat washer
(yellow zinc plated) S4612-00600-0S1 2
16 1/2” nf nut S4116-20800-022 2
17 5/16” nc self-locking nut S4186-10500-022 8
18 3/8” nc self-locking nut S4186-10600-022 2

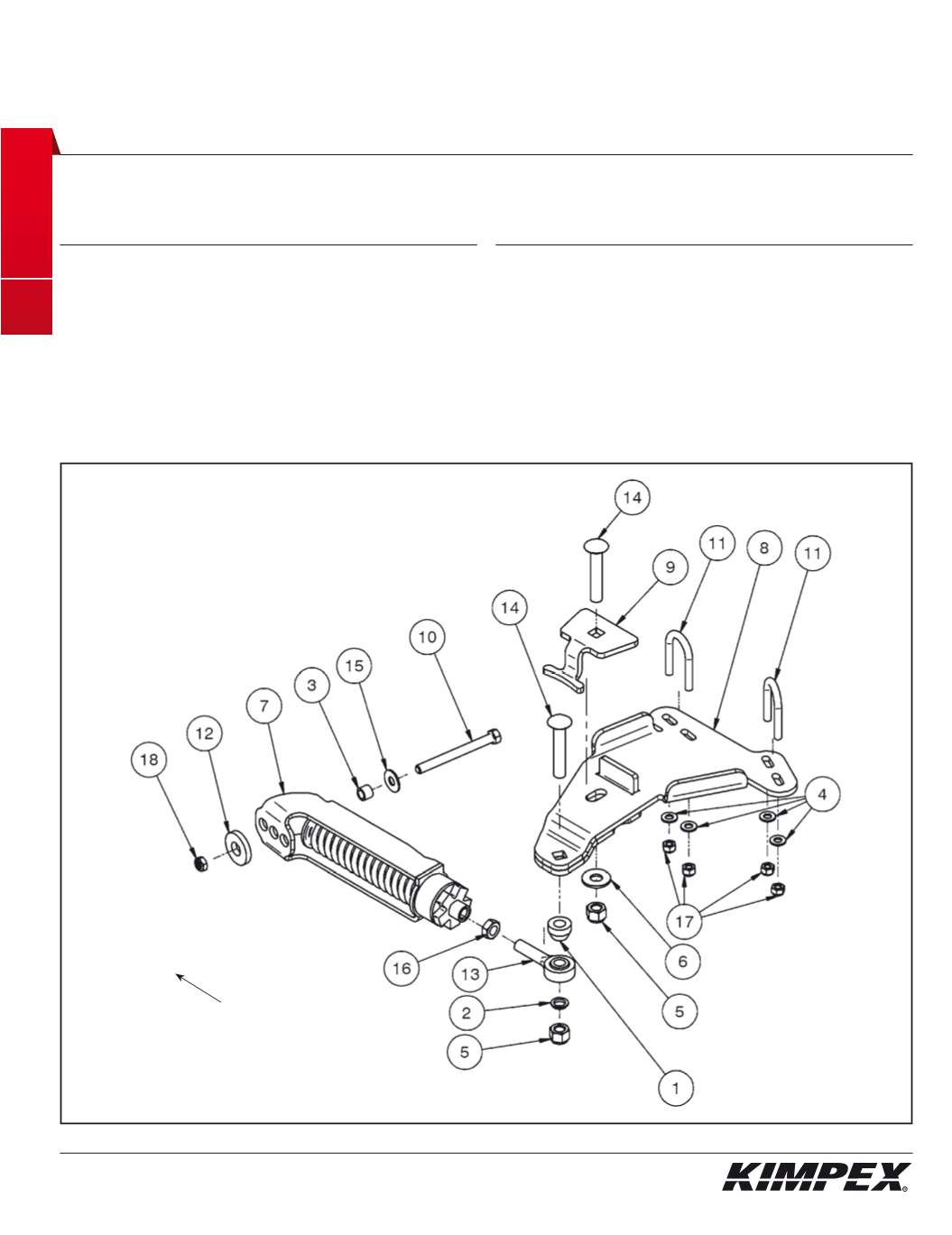

sketch A
LEFT SIDE VIEW
Ref. Description Item No. Qty
1 Large ball joint spacer 2510039-1-20-2000 2
2 Short ball joint spacer 2510039-1-20-4000 2
3 Tightening spacer Q2212-10082 2
4 5/16" dia flat washer S4612-00500-002 8
5 1/2” nc self-locking nut S4186-10800-022 4
6 1/2" dia flat washer S4612-00800-002 2
7 Front anti-rotation assembly 7810304-10A 2
8 Front left A-arm bracket 2810408-2-1000 1
Front right A-arm bracket 2810408-1-1000 1
9 Front A-arm clamping plate 2810408-1-3000 2
Front of
the ATV
