ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373111
FOR " COMMANDER " TRACK KIT / BRP OUTLANDER
REAR SUB-TABLE INSTALLATION
(see sketch E)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode, and block the wheels.
1)
Raise the rear of the ATV off the ground and remove the wheels.
WARNING :
When the ATV is raised, make sure that it is
properly secured/supported to prevent it from
accidentally falling during the installation of the sub-
tables. If not properly secured/supported, serious
physical injury could occur.
2)
Remove the rear left CV shield. Do not discard. They will be
reinstalled later.
3)
Place the rear left sub-table plate (#
5
) below the rear a-arm.
Install the rear tightening plate (#
6
) on the top of the rear a-arm
and fasten using the
(2) 3/8” X 4” nc
hex bolts (#
8
), the
(2) 3/8” X 4-
1/4” nc
hex bolts (#
9
), and the
(4) 3/8” nc
self-locking nuts (#
11
).
4)
Tighten all the bolts. Torque the
3/8” nc
nuts (#
11
) to 20 ft-lbs.
IMPORTANT :
Tighten in a manner not to permanently
deform the assembly.
7)
Repeat
steps 2
to
4
for the opposite side.

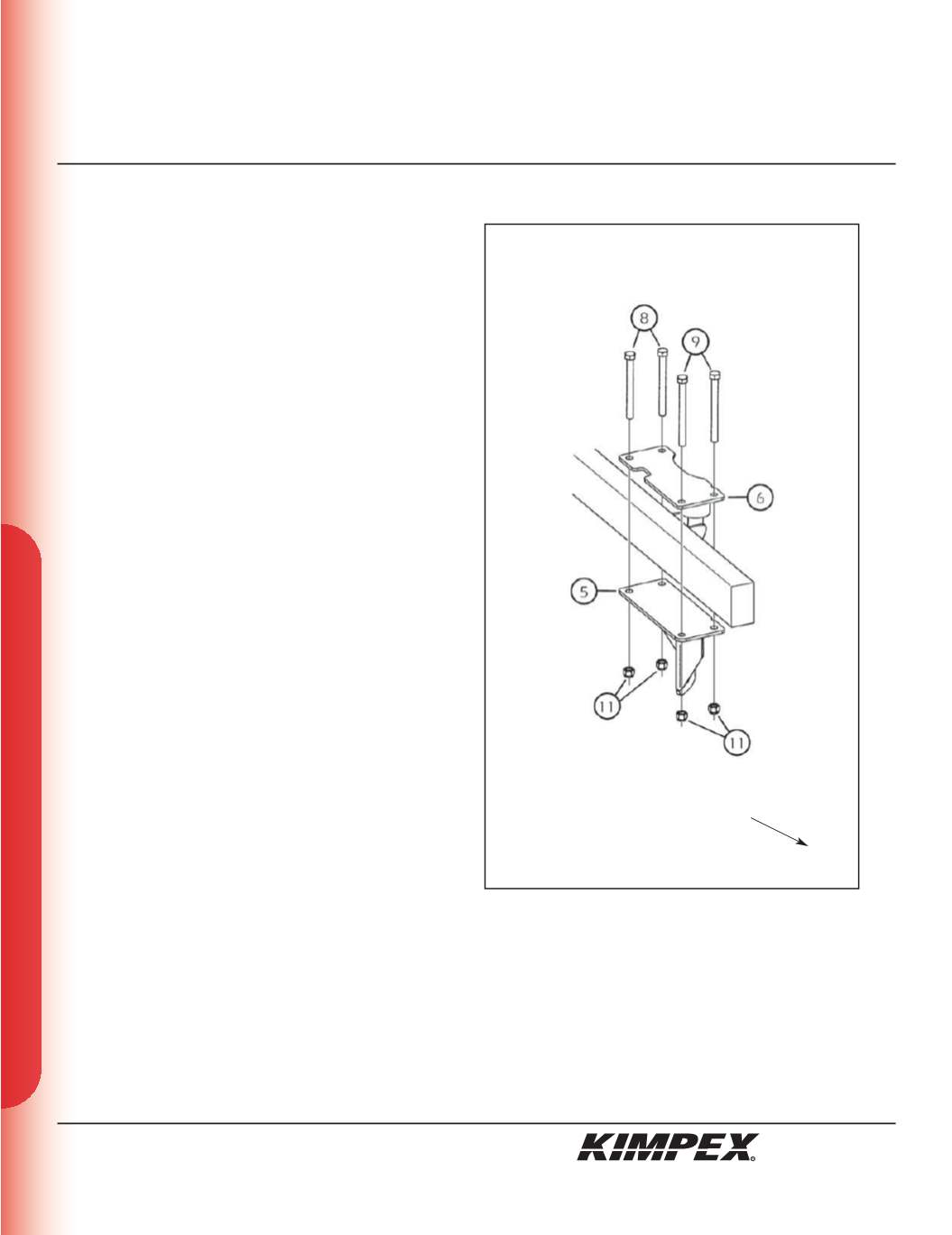

sketch E
LEFT
REAR VIEW
Rear of the ATV
