2810188
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain, New York / 12919
Lithographié au Canada / Litho’d in Canada
A-2810188 (F-00)
6/7
ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373010
FOR " COMMANDER " TRACK KIT / ARCTIC CAT 500, 650
REAR A-ARM BRACKET INSTALLATION
(see sketch E)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode, and block the wheels.
1)
Raise the rear of the ATV off the ground and remove the wheels.
WARNING :
When the ATV is raised, make sure that it is
properly secured/supported to prevent it from
accidentally falling during the installation of the sub-
tables. If not properly secured/supported, serious
physical injury could occur.
2)
Remove the rear left CV shield. Do not discard. They will be
reinstalled later.
3)
Install the rear left A-arm bracket (#
1
) under the lower front A-
arm so that the two parts fit snugly.
4)
Install the rear A-arm clamping plate (#
15
) over the lower rear
A-arm and fasten it to the A-arm bracket (#
1
) using the
(4)
3/8” nc X 2-1/4”
hex bolts (#
2
) and the
(4) 3/8” nc
self-locking nuts
(#
13
).
5)
Tighten all the bolt. Torque the
3/8” nc
self-locking nuts (#
13
) to
20 ft-lbs.
IMPORTANT :
Tighten in a manner not to permanently
deform the assembly.
6)
Repeat
steps 2
to
5
for the opposite side.

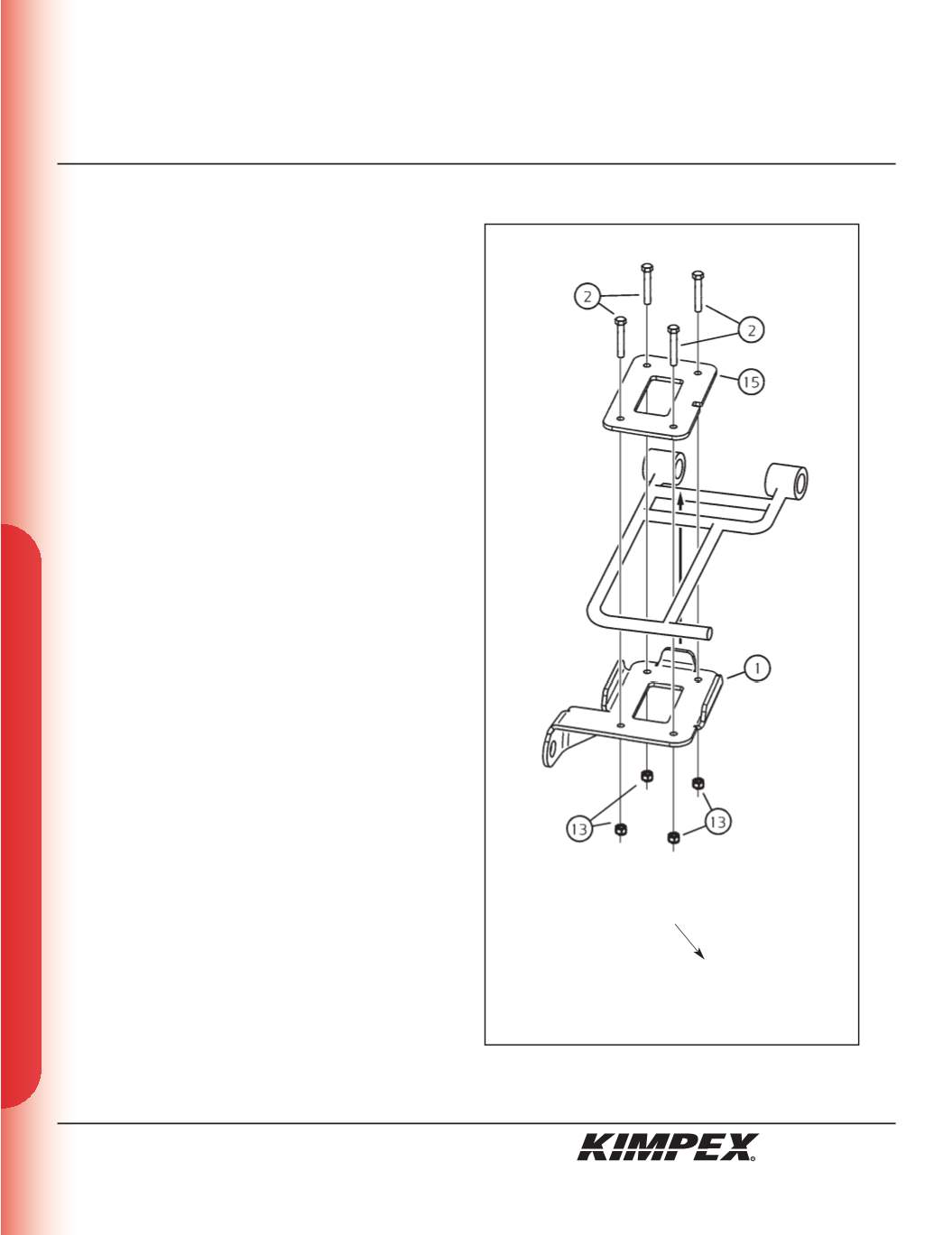

sketch E
LEFT
REAR VIEW
Rear of the ATV
