MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373111
FOR " COMMANDER " TRACK KIT / BRP OUTLANDER
ATV
FRONT LEFT AND RIGHT SUB-TABLE
Ref. Description
Item No.
Qty
1
Front left sub-table plate
2810173-2000
1
Front right sub-table plate
2810173-1000
1
2
3/8” nc X 1-1/4” hex bolt
S1711-00610-052 8
3
Short ball joint spacer
2510039-1-20-4000 2
4
Large ball joint spacer
2510039-1-20-2000 2
5
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082 4
6
3/8” nc X 3-1/2” hex bolt
S1711-00628-052 2
Ref. Description
Item No.
Qty
7
3/8” dia flat washer
S4612-00600-002 2
8
1/2” nc self-locking nut
S4186-10800-022 2
9
1/2” nc X 2-1/2” carriage bolt
S2412-0G040-0A2 2
10
Tightening spacer
2510039-1-30-4000 2
11
3/8” nc self-locking nut
S4186-10600-022 10
12
Front anti-rotation assembly
2810153-10
2
13
Front sub-table clamping plate 2810193-1000
2

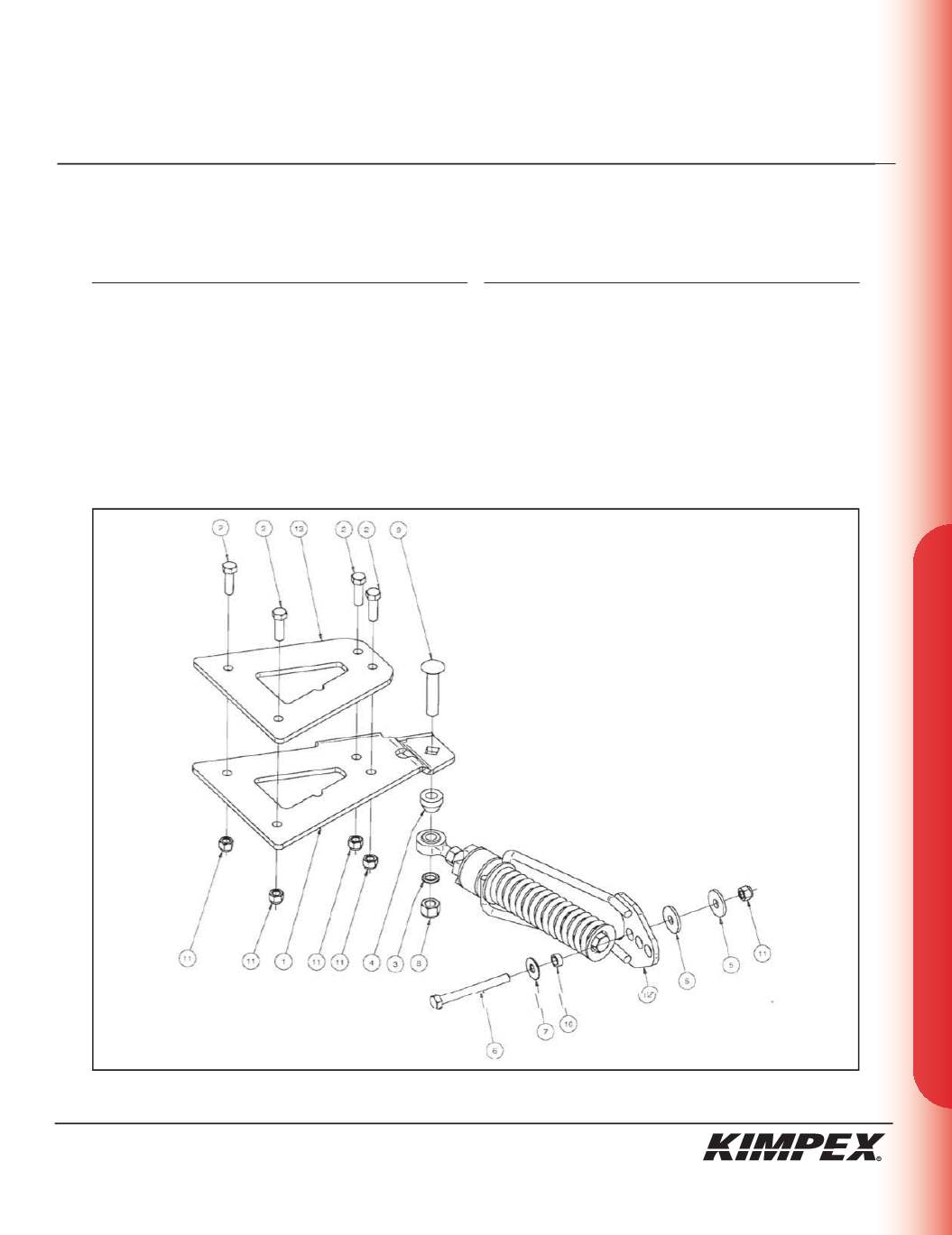

sketch A
