ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373112
FOR " COMMANDER " TRACK KIT / BRP TRAXTER
REAR SYSTEM
Ref. Description
Item No.
Qty
1
Rubber bushing
2510039-1-30-6000 6
2
Bushing spacer tube
2510039-3-20-2000 2
3
Main axle adapter
2810149-9000
2
4
Rear anti-rotation arm support
2810182-3000
2
5
Rear anti-rotation arm
2810182-5000
2
6
Snowplow adapter extension
2810183-3000
1
7
Rear right anti-rotation arm bracket 2810184-3000
1
8
Rear left anti-rotation arm bracket 2810184-4000
1
9
Rear anti-rotation arm
clamping plate
2810184-5000
2
10
M8 X 40mm hex bolt
S1111-08040-0D1 4
11
M10 X 35mm hex bolt
S1111-10035-0D1 8
12
5/16” nc X 1” hex bolt
S1711-00508-022 2
13
3/8” nc X 1” hex bolt
S1711-00608-052 6
14
3/8” nc X 3” hex bolt
S1711-00624-052 2
Ref. Description
Item No.
Qty
15
3/8” nc X 3-1/2” hex bolt
S1711-00628-052 6
16
5/8” nc nut
S4111-11000-052 2
17
M10 wheel nut
S4178-M010M-028 8
18
5/16” nc self-locking nut
S4186-10500-022 2
19
3/8” nc self-locking nut
S4186-10600-022 14
20
5/8” nc self-locking nut
S4186-11000-022 2
21
5/16” dia flat washer
S4612-00500-002 2
22
3/4” I.D. X 2” O.D. X 1/8”
flat washer
S4612-01200-022 2
23
17mm I.D. X 50mm O.D. X 3mm
flat washer
S4612-M1600-01W 4
24
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082 2
25
Snowplow adapter kit
073116
1

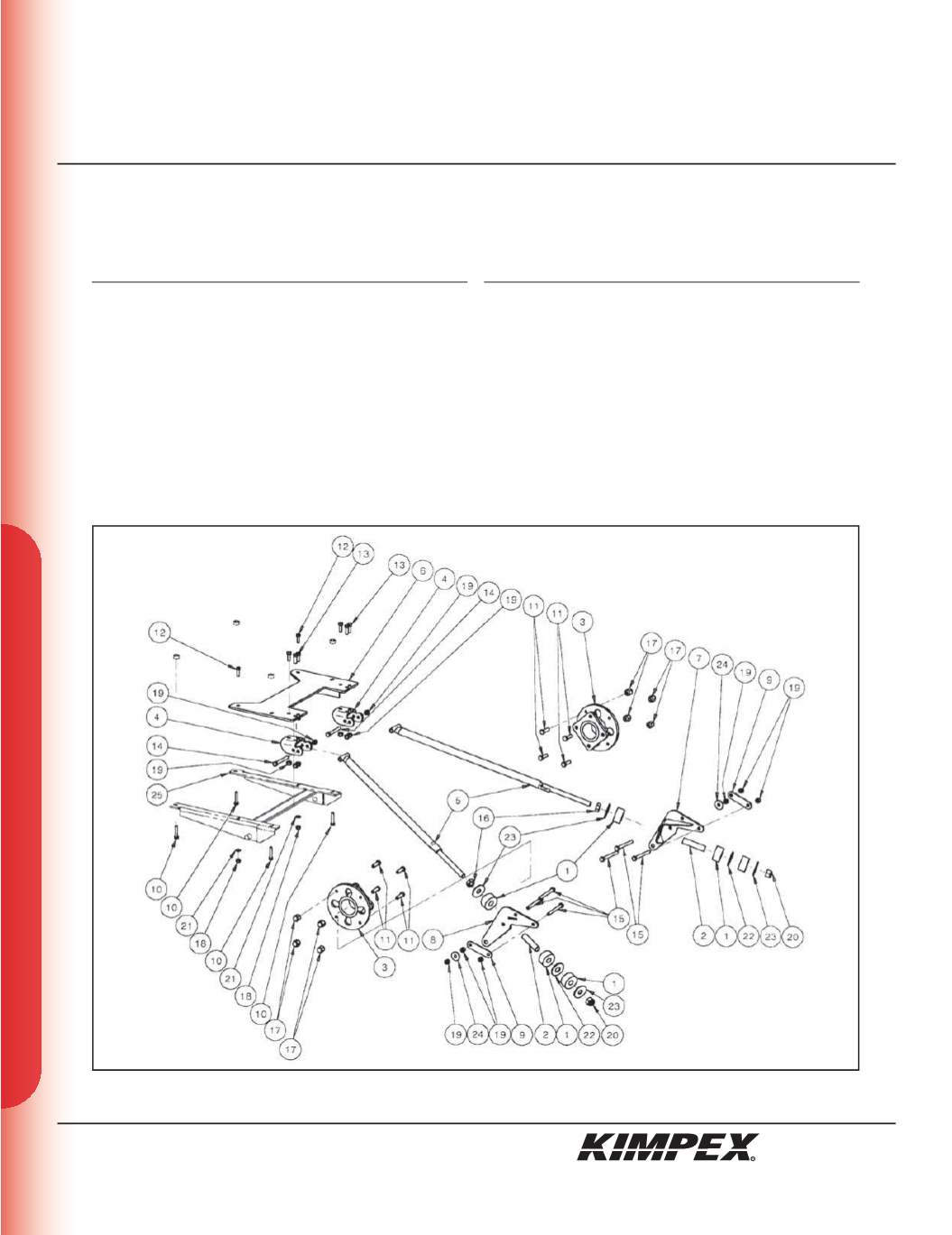

sketch B
