ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373112
FOR " COMMANDER " TRACK KIT / BRP TRAXTER
SNOWPLOW ADAPTER INSTALLATION
(see sketch E)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode, and block the wheels.
WARNING :
When the ATV is raised, make sure that it is
properly secured/supported to prevent it from
accidentally falling during the installation. If not properly
secured/supported, serious physical injury could occur.
1)
Fasten the
(2)
rear anti-rotation arm supports (#
4
) onto the
snowplow adapter extension (#
6
) using
(6) 3/8” nc X 1”
hex bolts
(#
13
) and
(6) 3/8” nc
self-locking nuts (#
19
).
(see sketch F)
2)
Fasten the snowplow adapter extension (#
6
) onto the adapter
(#
25
) using
(2) 5/16” nc X 1”
hex bolts (#
12
),
(2) 5/16” dia
flat washers
(#
21
), and
(2) 5/16” nc
self-locking nuts (#
18
).
(see sketch G)
3)
Use the
(4) M8 X 40mm
hex bolts (#
10
) when you install the
adapter (#
25
) to the ATV.
NOTE :
Refer to the snowplow adapter mounting
instructions (no. 073116) to finish the installation.

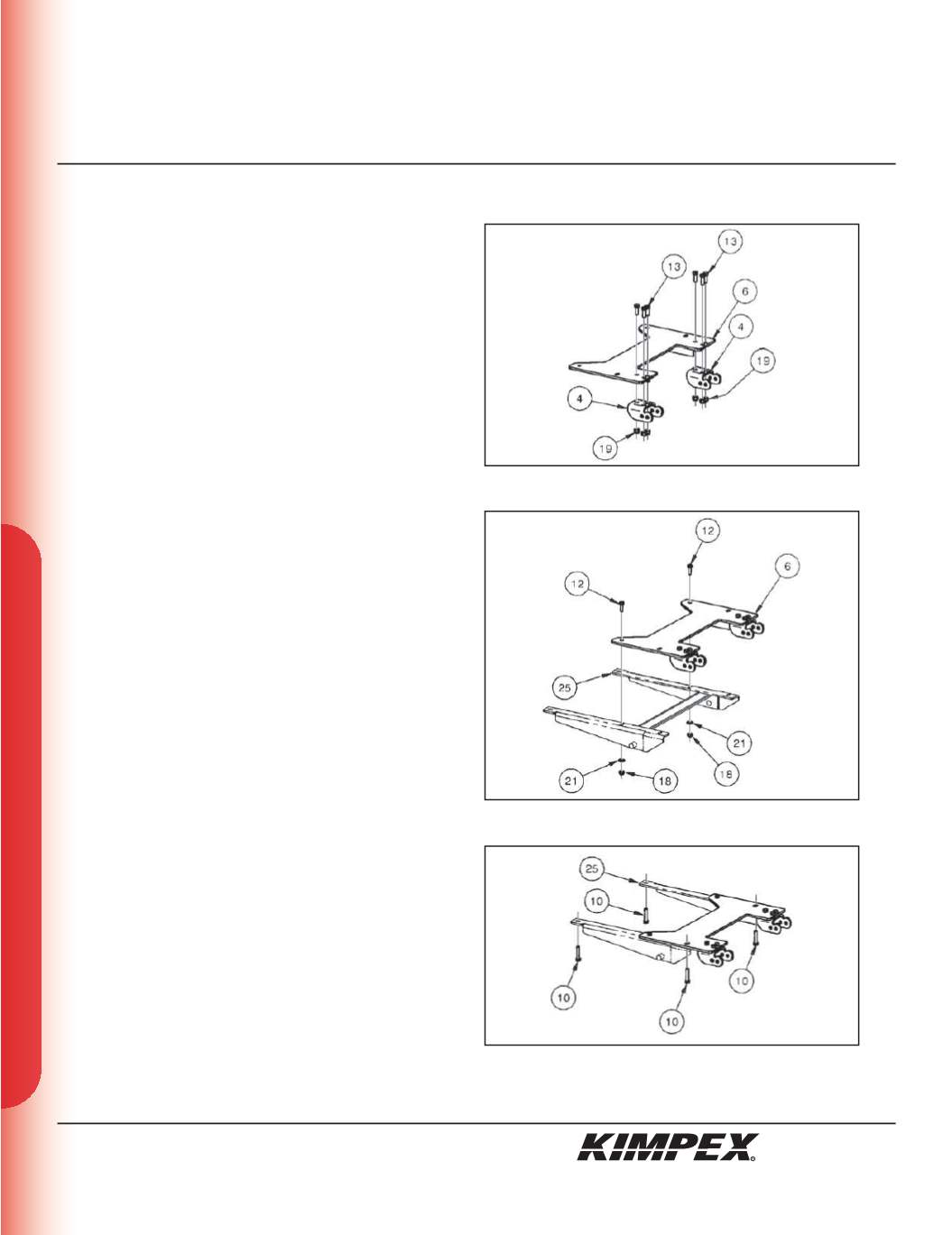

sketch E
