ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373219
FOR " COMMANDER WIDE TRACK " AND " COMMANDER TREK " TRACK KIT / HONDA TRX 350
“COMMANDER TREK” / REAR ANTI-ROTATION ARM
BRACKET INSTALLATION
(see sketch S)
1) RIGHT SIDE :
Assemble the rear right anti-rotation arm bracket
(#
12
) and the rear right spacer (#
11
) to the hole made for this
purpose in the frame of the Track Kit using
(3) 3/8” nc X 1-1/2”
hex
bolts (#
20
) and the
(3) 3/8” dia
lock washers (#
28
).
2) LEFT SIDE :
Assemble the rear left anti-rotation arm bracket
(#
13
) to the hole made for this purpose in the frame of the Track
Kit using
(3) 3/8” nc X 1”
hex bolts (#
19
) and the
(3) 3/8” dia
lock
washers (#
28
).
“COMMANDER TREK” /
MAIN AXLE ADAPTER INSTALLATION
(see sketch T)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode, and block the wheels.
1)
Raise the rear of the ATV off the ground and remove the wheels.
WARNING :
When the ATV is raised, make sure that it is
properly secured/supported to prevent it from
accidentally falling during the installation. If not properly
secured/supported, serious physical injury could occur.
2)
Remove the rear right CV shield. Do not discard. They will be
reinstalled later.
3)
Install the
(4) M10-1.25 X 30mm
hex bolts (#
17
) into the threaded
holes of the main axle adapter (#
3
) as illustrated.
4)
Position and fasten the main axle adapter (#
3
) onto the hub of
the vehicle using the original wheel nuts. Apply the tightening
torque specified in your ATV owner’s manual.
5)
Position and fasten the Track Kit to the main axle adapter (#
3
)
using the
(4) M10-1.25
wheel nuts (#
24
).
Torque to 25 ft-lbs.
NOTE :
Recheck torque of the wheel nuts (#24) after
one hour of use.
6)
Repeat
steps 2
to
5
for the opposite side.

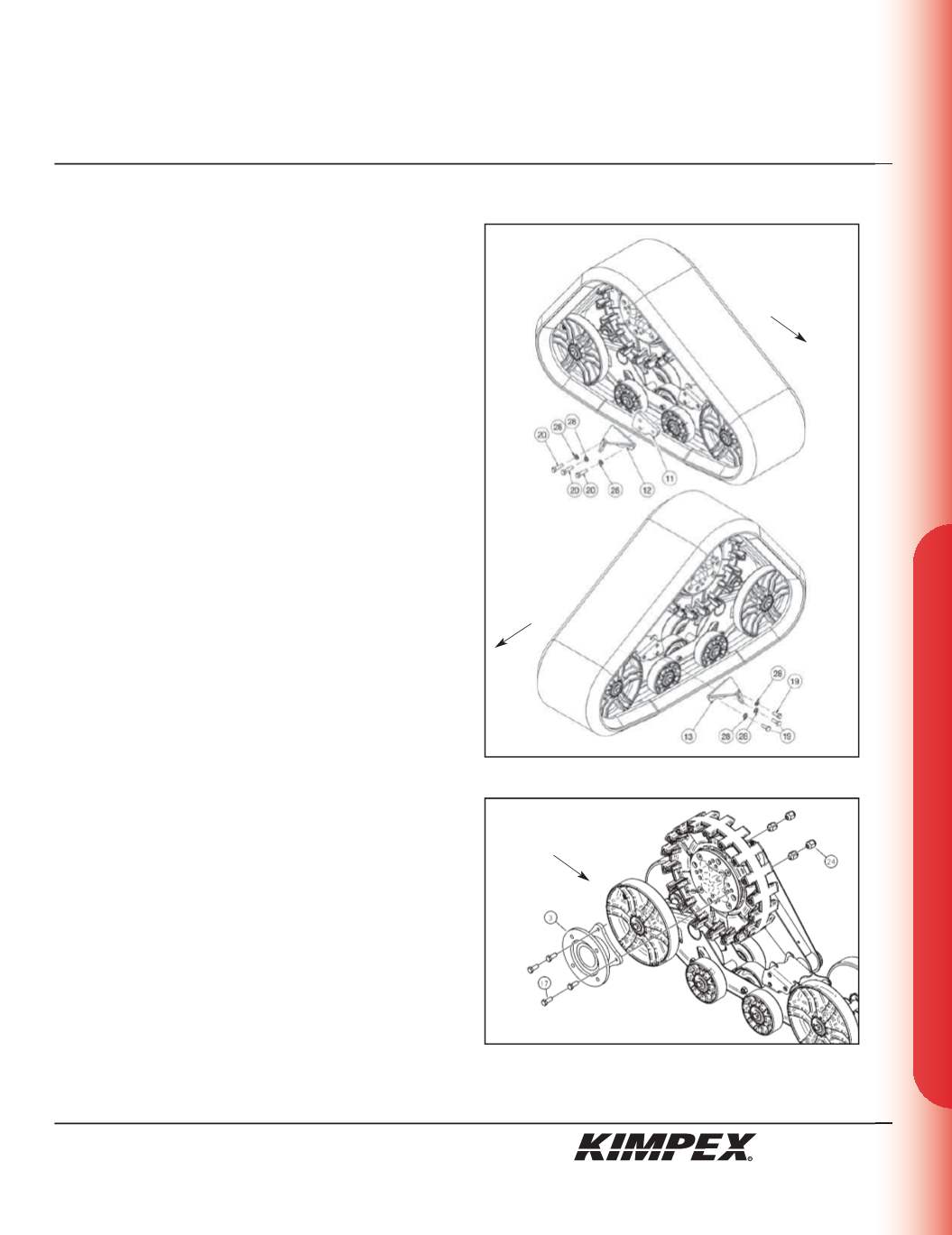

sketch S
sketch T
Rear of
the ATV
RIGHT REAR
VIEW
LEFT REAR
VIEW
RIGHT REAR VIEW
Rear of
the ATV
Rear of
the ATV
