ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373219
FOR " COMMANDER WIDE TRACK " AND " COMMANDER TREK " TRACK KIT / HONDA TRX 350

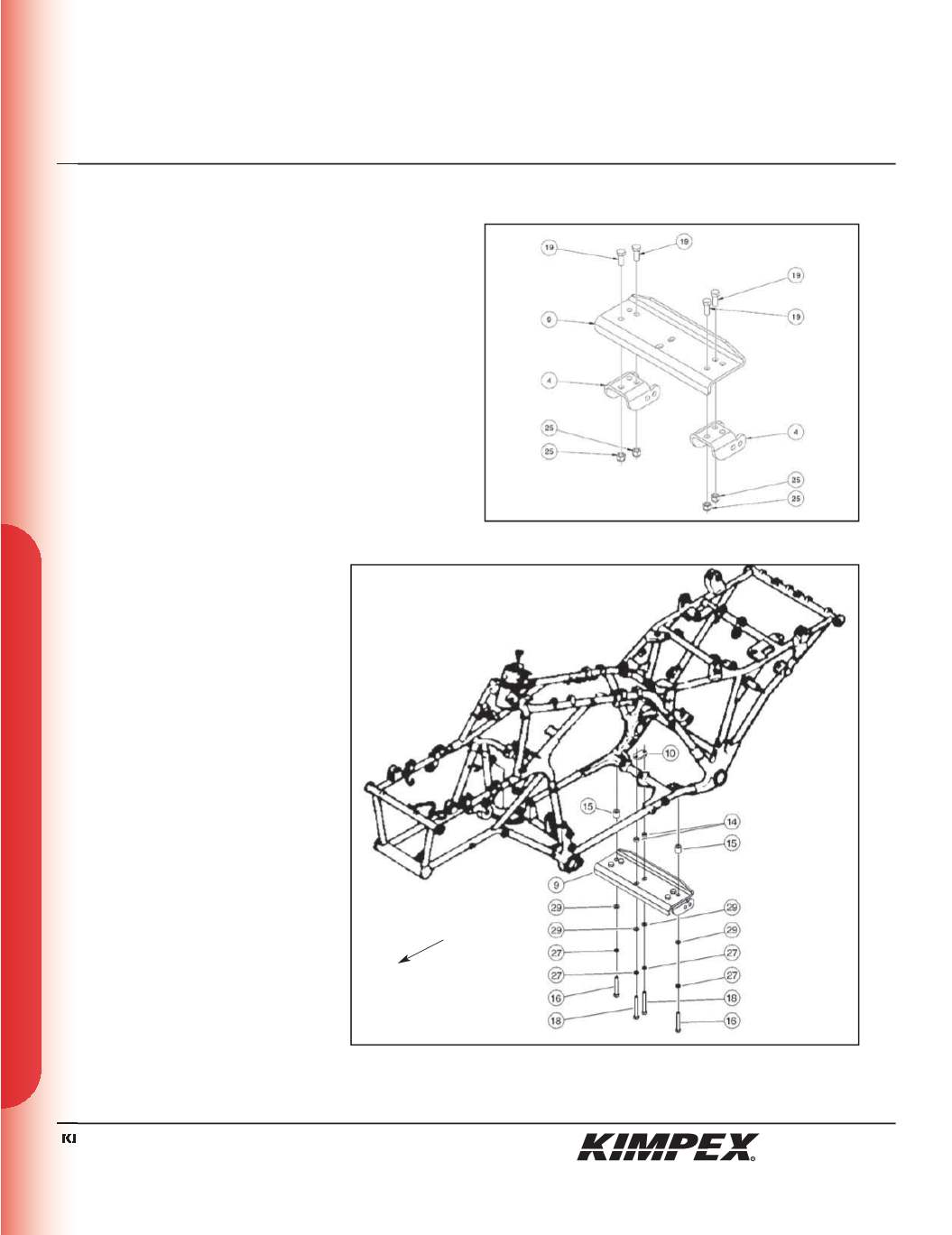

MOUNT PLATE ASSEMBLING
(see sketch K)
1)
Fasten the
(2)
rear anti-rotation arm supports (#
4
) onto the
mount plate (#
9
) using the
(4) 3/8” nc X 1”
hex bolts (#
19
) and the
(4) 3/8” nc
self-locking nuts (#
25
).
MOUNT PLATE INSTALLATION
(see sketch L)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode, and block the wheels.
WARNING :
When the ATV is raised, make sure that it is
properly secured/supported to prevent it from
accidentally falling during the installation. If not properly
secured/supported, serious physical injury could occur.
1)
Position and fasten the middle part of the mount plate assembly
(#
9
) to frame using the
(2) 5/16” nc X 2-3/4”
hex bolts (#
18
),
(2) 5/16” dia
lock washers (#
27
),
(2)
5/16” dia
flat washers (#
29
),
(2) 5/8” O.D. X
.385” I.D. X 1/4”
spacers (#
14
), and the
clamping plate (#
10
) (screw the first
threads only).
2)
Fasten both ends of the mount plate
assembly (#
9
) to frame using the
(2)
M8-1.25 X 60mm
hex bolts (#
16
),
(2)
5/16” dia
lock washers (#
27
),
(2) 5/16” dia
flat washers (#
29
), and the
(2) 3/4” O.D. X
3/8” I.D. X 3/4”
spacers (#
15
).
Tighten all bolts.
t
TO FINISH THE REAR INSTALLATION
OF “COMMANDER WIDE TRACK”
MODELS, SEE PAGES 10 AND 11.
t
TO FINISH THE REAR INSTALLATION
OF “COMMANDER TREK” MODELS,
SEE PAGES 12 AND 13.
sketch K
sketch L
Front of the ATV
LEFT
SIDE VIEW
