KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain, New York / 12919
Lithographié au Canada / Litho’d in Canada
A-2810246
2/12
ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373219
FOR " COMMANDER WIDE TRACK " AND " COMMANDER TREK " TRACK KIT / HONDA TRX 350
REAR SYSTEM
Ref. Description
Item No.
Qty
1
Rubber bushing
2510039-1-30-6000 6
2
Bushing spacer tube
2510039-3-20-2000 2
3
Main axle adapter
2810149-9000
2
4
Rear anti-rotation arm support
2810182-3000
2
5
Rear right anti-rotation arm bracket
(Wide Track)
2810184-3000
1
6
Rear left anti-rotation arm bracket
(Wide Track)
2810184-4000
1
7
Rear anti-rotation arm clamping plate 2810184-5000
2
8
Rear anti-rotation arm
2810184-9000
2
9
Mount plate
2810246-2000
1
10
Clamping plate
2810246-3000
1
11
Rear right spacer
2810246-4000
1
12
Rear right anti-rotation arm bracket
(Trek)
2810255-2000
1
13
Rear left anti-rotation arm bracket
(Trek)
2810255-3000
1
14
5/8” O.D. X .385” I.D. X 1/4”
spacer
Q2212-10021
2
15
3/4” O.D. X 3/8” I.D. X 3/4”
spacer
Q2212-10052
2
Ref. Description
Item No.
Qty
16
M8-1.25 X 60mm hex bolt
S1111-08060-0D1 2
17
M10-1.25 X 30mm hex bolt
S1211-10030-0D1 8
18
5/16” nc X 2-3/4” hex bolt
S1711-00522-052 2
19
3/8” nc X 1” hex bolt
S1711-00608-052 10
20
3/8” nc X 1-1/2” hex bolt
S1711-00612-052 3
21
3/8” nc X 3” hex bolt
S1711-00624-052 2
22
3/8” nc X 3-1/2” hex bolt
S1711-00628-052 6
23
5/8” nc nut
S4111-11000-052 2
24
M10-1.25 wheel nut
S4178-M010M-028 8
25
3/8” nc self-locking nut
S4186-10600-022 12
26
5/8” nc self-locking nut
S4186-11000-022 2
27
5/16” dia lock washer
S4511-00500-002 4
28
3/8” dia lock washer
S4511-00600-002 6
29
5/16” dia flat washer
S4612-00500-002 4
30
3/4” I.D. X 2” O.D. X 1/8”
flat washer
S4612-01200-022 2
31
17mm I.D. X 50mm O.D. X 3mm
flat washer
S4612-M1600-01W 4
32
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082 2

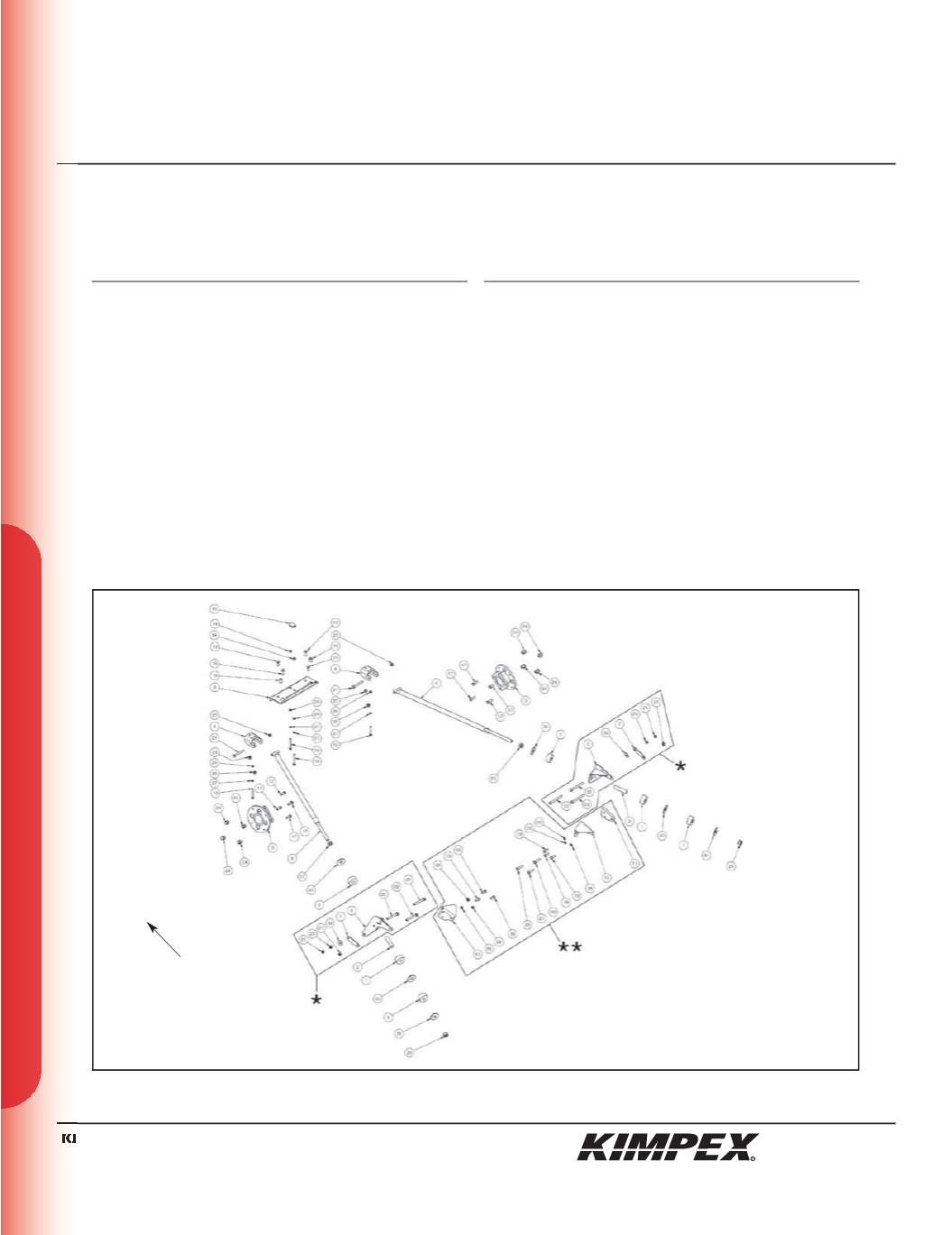

sketch B
Front of
the ATV
*
“Commander Wide Track” Models Only.
**
“Commander Trek” Models Only.
