ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373219
FOR " COMMANDER WIDE TRACK " AND " COMMANDER TREK " TRACK KIT / HONDA TRX 350
“COMMANDER WIDE TRACK” /
FRONT ANTI-ROTATION BRACKET INSTALLATION
(see sketch E)
1)
Unscrew the self-locking nut (#
A
) from the 1/2” nc X 4-1/2” bolt
(#
B
) retaining the wheel closer to the adjustment slide. Keep the
self-locking nut (#
A
) and one of two flat washers (#
C
).
(see sketch F)
2)
Insert a
3/8” nc X 1-1/4”
carriage bolt (#
13
) into the hole made for
this purpose in the front antirotation bracket (#
5
) as illustrated.
3)
Fasten the upper part of the front antirotation bracket (#
5
) onto
the frame of the Track Kit using a
3/8” nc X 3-1/2”
hex bolt (#
10
) and
a
3/8” nc
self-locking nut (#
15
).
Fasten the lower part of the front antirotation bracket (#
5
) onto
the frame of the Track Kit using a
1/2” nc X 5-1/4”
hex bolt (#
12
),
the original flat washer (#
C
) and self-locking nut (#
A
) removed
in
step 1
.
4)
Repeat
steps 1
to
3
for the opposite side.
“COMMANDER WIDE TRACK” /
FRONT ANTI-ROTATION INSTALLATION
(see sketch G)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode, and block the wheels.
WARNING :
When the ATV is raised, make sure that it is
properly secured/supported to prevent it from
accidentally falling during the installation. If not properly
secured/supported, serious physical injury could occur.
1)
Fasten the front anti-rotation assembly (#
4
) onto the front anti-
rotation bracket (#
5
) using the
3/8” nc X 1-1/4”
carriage bolt (#
13
),
the tightening spacer (#
3
), the
3/8” dia
flat washer (#
16
), and the
3/8” nc
self-locking nut (#
15
).
NOTE :
Refer to the Track Kit manual for the correct
adjustment.
2)
Repeat
step 1
for the opposite side.

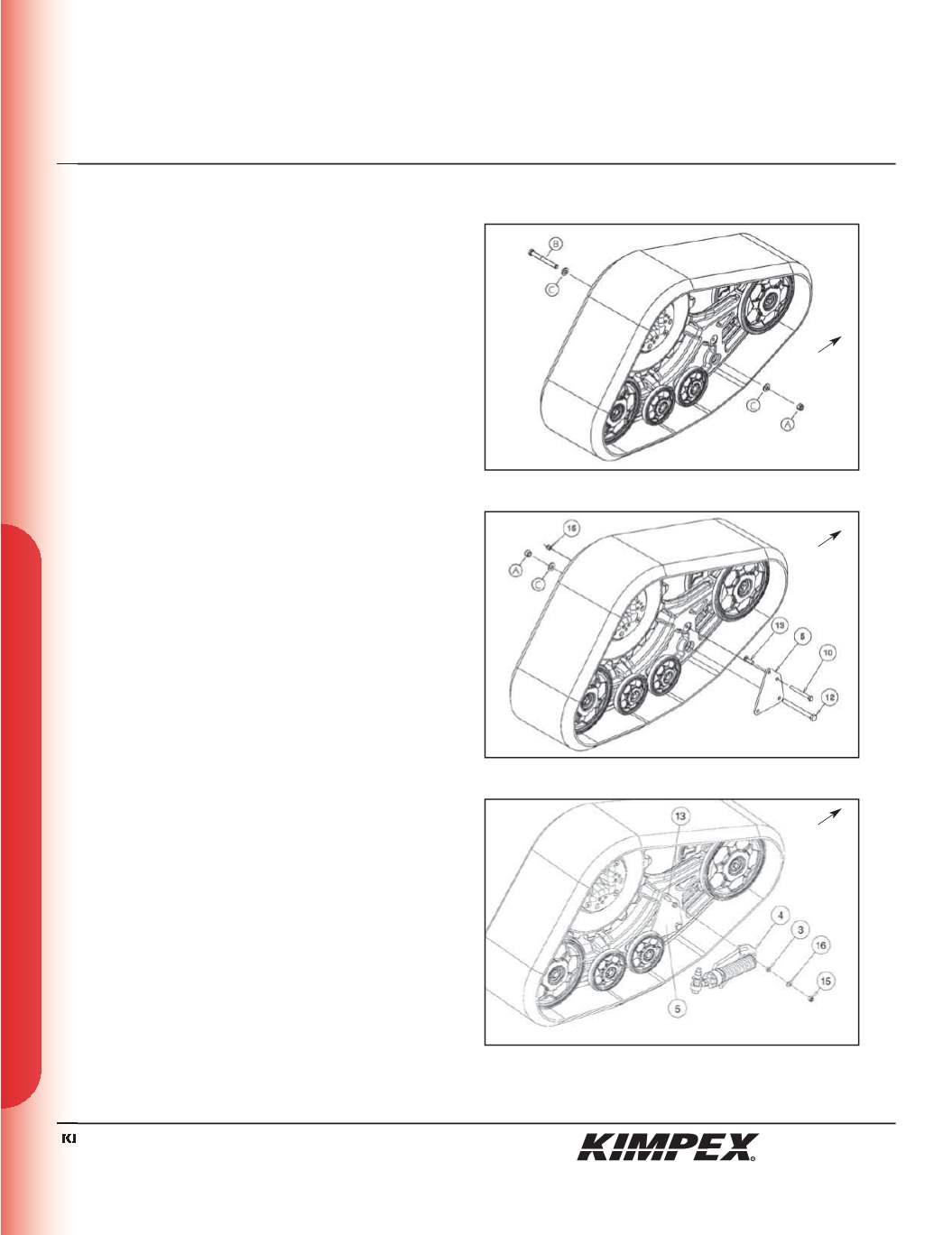

sketch E
sketch G
sketch F
LEFT FRONT VIEW
LEFT FRONT VIEW
Front of
the ATV
Front of
the ATV
LEFT FRONT VIEW
Front of
the ATV
