ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373219
FOR " COMMANDER WIDE TRACK " AND " COMMANDER TREK " TRACK KIT / HONDA TRX 350
FRONT LEFT AND RIGHT A-ARM BRACKET
Ref. Description
Item No.
Qty
1
Large ball joint spacer
2510039-1-20-2000 2
2
Short ball joint spacer
2510039-1-20-4000 2
3
Tightening spacer
2510039-1-30-4000 2
4
Front anti-rotation assembly
2810203-50
2
5
Front anti-rotation bracket
2810246-1000
2
6
Lower knuckle pivot
2810246-5000
2
7
Spacer
2810246-6000
2
8
242 Loctite Threadlocker .5ML
LUB-016
1
9
M10-1.5 X 90mm hex bolt
S1111-10090-0D1 2
Ref. Description
Item No.
Qty
10
3/8” nc X 3-1/2” hex bolt
S1711-00628-052 2
11
1/2” nc X 2” hex bolt
S1711-00816-052 2
12
1/2” nc X 5-1/4” hex bolt
S1711-00842-052 2
13
3/8” nc X 1-1/4” carriage bolt
S2412-0E020-0A2
2
14
1/2” nf nut
S4111-20800-022 2
15
3/8” nc self-locking nut
S4186-10600-022 4
16
3/8” dia flat washer
S4612-00600-002 2
17
1/2” nf ball joint
S9113-C0500-002 2

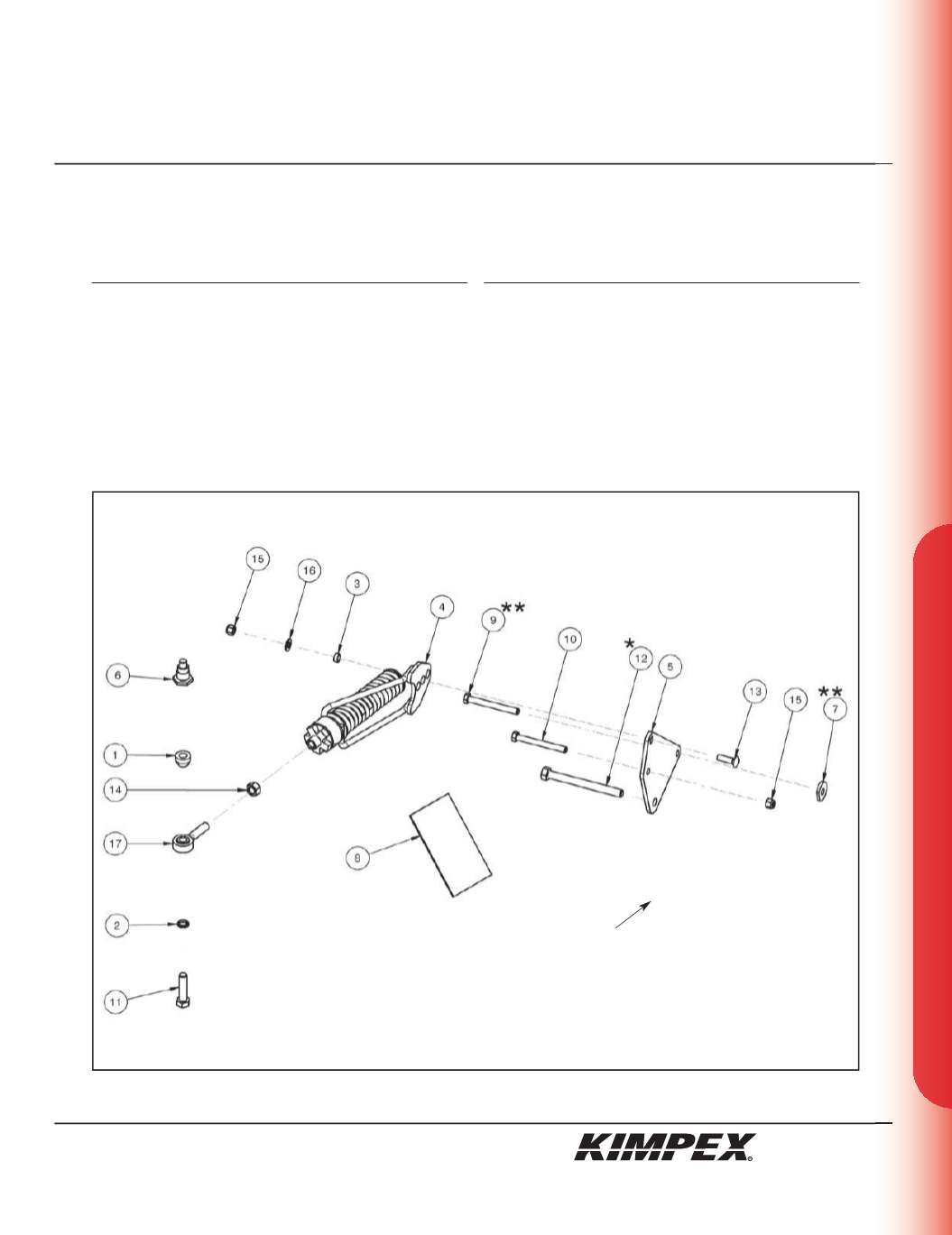

sketch A
Front of
the ATV
*
“Commander Wide Track” Models Only.
**
“Commander Trek” Models Only.
RIGHT SIDE VIEW
