ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373219
FOR " COMMANDER WIDE TRACK " AND " COMMANDER TREK " TRACK KIT / HONDA TRX 350
FRONT ANTI-ROTATION INSTALLATION
(see sketch D)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode, and block the wheels.
1)
Raise the front of the ATV off the ground and remove the
wheels.
WARNING :
When the ATV is raised, make sure that it is
properly secured/supported to prevent it from
accidentally falling during the installation of the A-arm
brackets. If not properly secured/supported, serious
physical injury could occur.
2)
Remove the original lower knuckle pivot (
A
) from the joint (
B
).
3)
Install the lower knuckle pivot (#
6
) below the joint (
B
).
4)
Assemble the ball joint (#
17
) and the
1/2” nf
nut (#
14
) to the
front anti-rotation assembly (#
4
).
NOTE :
Pay special attention to the orientation given to
spacers (#1 and #2) during installation.
5)
Install the short ball joint spacer (#
2
) with the narrow part facing
up onto the
1/2” nc X 2”
hex bolt (#
11
)
.
6)
Install the ball joint of the anti-rotation assembly (#
17
) onto the
bolt (#
11
), above the short ball joint spacer (#
2
). Install the large
ball joint spacer (#
1
) with the narrow part facing down.
7)
Apply the Loctite on the threads of the
1/2” nc X 2”
hex bolt (#
11
)
and tighten onto the lower knuckle pivot (#
6
).
Torque to 55 ft-lbs.
WARNING :
If the bolts are not sufficiently tightened,
there is a risk of them becoming loose, of parts detaching
and risk of loss of control over the vehicle, as well as risk
of personal injury.
8)
Rotate the anti-rotation assembly (#
4
) towards the center of the
ATV to prevent it from interfering with the installation of the
Track Kit.
9)
Repeat
steps 2
to
8
for the opposite side.
IMPORTANT :
Make sure to use the correct mounting
hole on the anti-rotation (#4) when you assemble to the
Track Kit (see sketch D).
t
TO FINISH THE FRONT INSTALLATION OF “COMMANDER
WIDE TRACK” MODELS, SEE PAGE 7.
t
TO FINISH THE FRONT INSTALLATION OF “COMMANDER
TREK” MODELS, SEE PAGE 8.

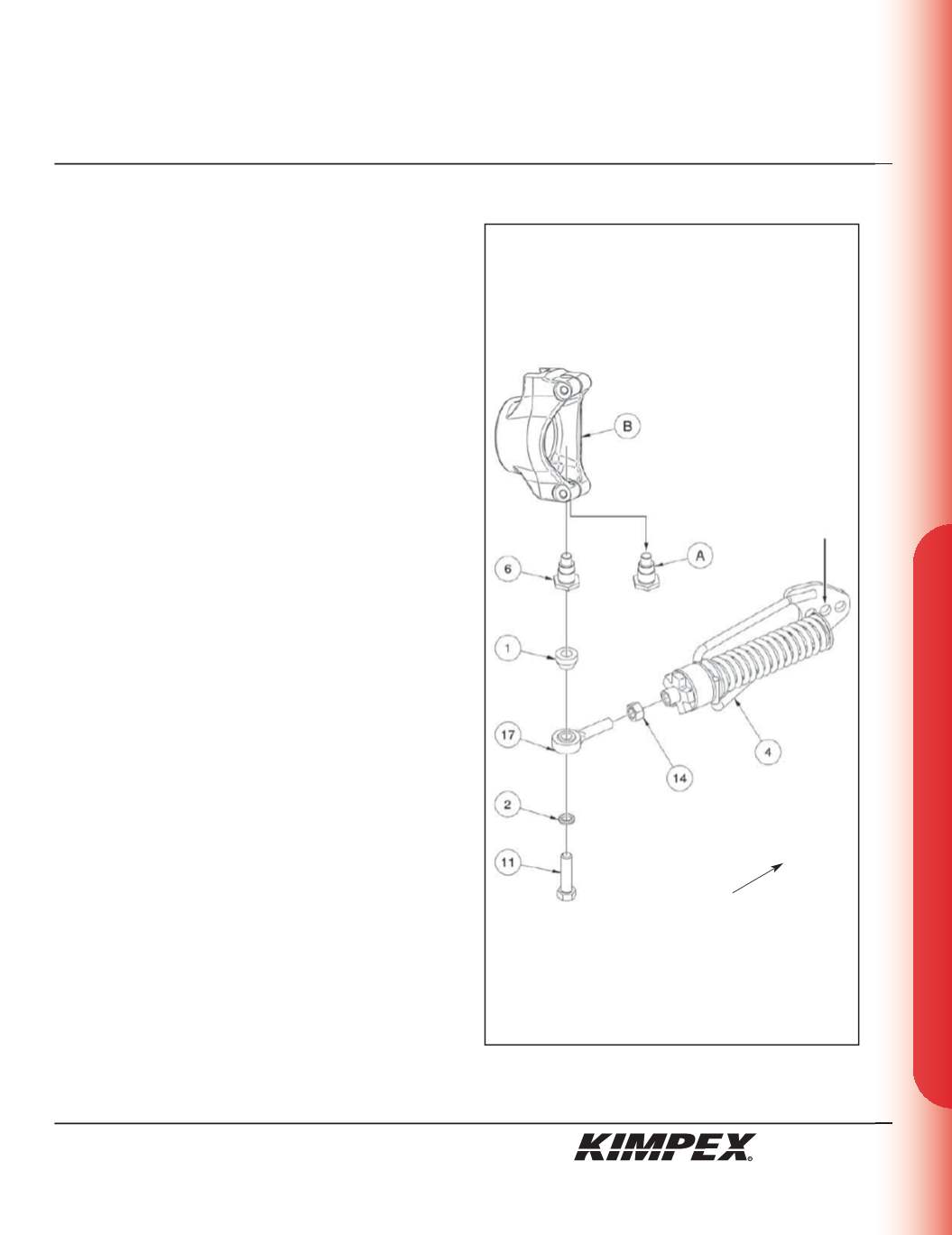

sketch D
LEFT
FRONT VIEW
Front of the ATV
MOUNTING
HOLE
