Installation of the rear suspension brackets
WARNING
1.
The vehicle must be
immobilized
and the
engine turned off
and cooled.
2.
Always wear
safety glasses
during installation, adjustment or repair.
3.
Please read and ensure you
have understood the warnings
and guidelines.
4.
Make sure the vehicle is
safely secured in place
by a system dedicated to this use (jack stands and hoist) and that it is supported or
fixed on locations that are not likely to break, bend or slip. A hydraulic jack is not safe; nor is a log. The vehicle must be not able to move.
The installation requires that the vehicle is in two-wheel drive mode with the gearbox in neutral. After lifting the vehicle
and removing the wheels:
1) On the vehicle, unbolt the original bolt
BB
and remove the original bolt
AA
of the suspension bracket. Keep them for
later reinstallation. See
figure 4.
2) Position the rear suspension bracket in place and fix it using the M10-1.5 x 140 mm bolt
02
and the M10-1.5 nylon
nut
05
.
3) Place M8 U-bolt
03
and fix it in place using an M8 flat washer
06
(place the washer on the oblong side) and the two
(2) M8-1.25 nylon nut
04
.

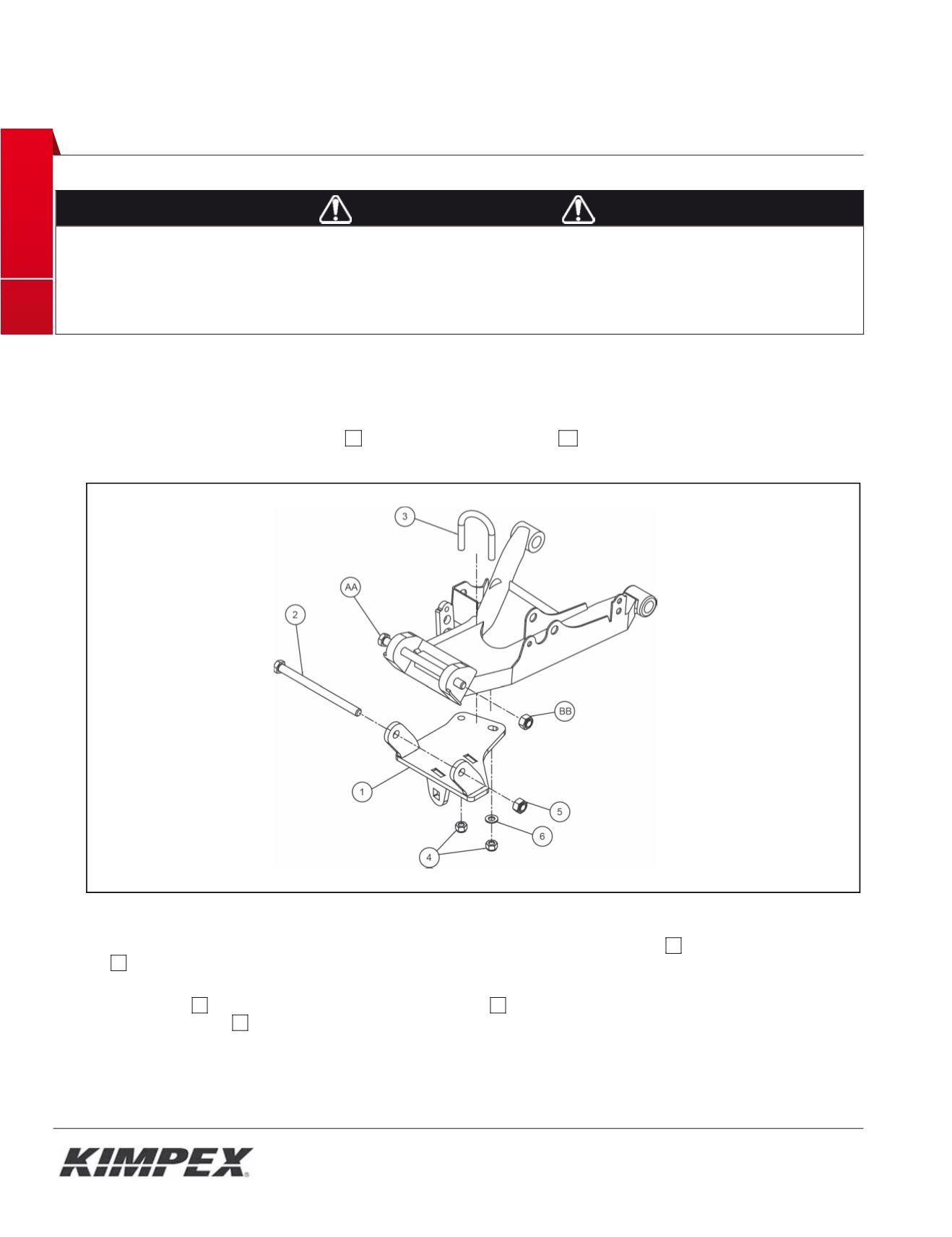

Fig. 4
