MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373216
FOR " COMMANDER " TRACK KIT / HONDA RUBICON
MAIN AXLE ADAPTER INSTALLATION
(see sketch H)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode, and block the wheels.
1)
Raise the rear of the ATV off the ground and remove the wheels.
WARNING :
When the ATV is raised, make sure that it is
properly secured/supported to prevent it from
accidentally falling during the installation. If not properly
secured/supported, serious physical injury could occur.
2)
Install the
(4) M10 X 30mm
hex bolts (#
9
) into the threaded holes
of the main axle adapter (#
3
) as illustrated.
3)
Position and fasten the main axle adapter (#
3
) onto the hub of
the vehicle using the original wheel nuts. Apply the tightening
torque specified in your ATV owner’s manual.
4)
Position and fasten the Track Kit to the main axle adapter (#
3
)
using the
(4) M10
wheel nuts (#
14
).
Torque to 25 ft-lbs.
NOTE :
Recheck torque of the wheel nuts (#14) after
one hour of use.
5)
Repeat
steps 2
to
4
for the opposite side.
REAR ANTI-ROTATION INSTALLATION
(see sketch I)
1)
Screw the
5/8” nc
nut (#
13
) onto the threaded part of the anti-
rotation arm (#
4
).
2)
Install the
17mm I.D. X 50mm O.D. X 3mm
flat washer (#
18
) and the
bushing spacer tube (#
2
) onto the threaded part of the anti-
rotation arm (#
4
).
3)
Install the rubber bushing (#
1
) over the bushing spacer tube
(#
2
).
4)
Slide the anti-rotation arm assembly into the hole of the rear
right anti-rotation arm bracket (#
6
).

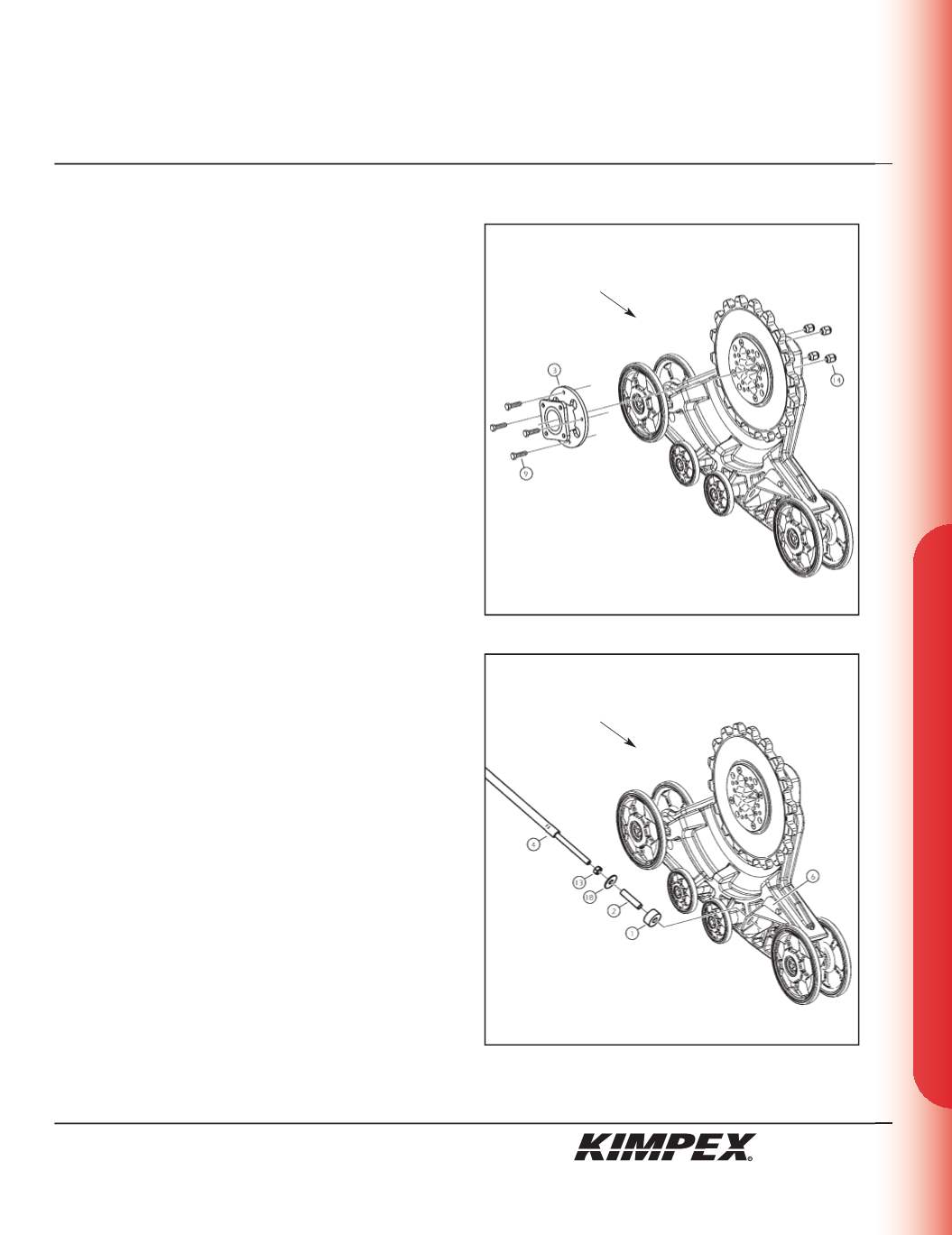

sketch H
RIGHT
REAR VIEW
Rear of
the ATV
sketch I
RIGHT
REAR VIEW
Rear of
the ATV
