ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373216
FOR " COMMANDER " TRACK KIT / HONDA RUBICON
REAR SYSTEM
Ref. Description
Item No.
Qty
1
Rubber bushing
2510039-1-30-6000 6
2
Bushing spacer tube
2510039-3-20-2000 2
3
Main axle adapter
2810149-9000
2
4
Rear anti-rotation arm
2810179-5000
2
5
Rear anti-rotation arm support
2810182-3000
2
6
Rear right anti-rotation arm bracket 2810184-3000
1
7
Rear left anti-rotation arm bracket 2810184-4000
1
8
Rear anti-rotation arm
clamping plate
2810184-5000
2
9
M10 X 30mm hex bolt
S1111-10030-0D1 8
10
3/8” nc X 1” hex bolt
S1711-00608-052 6
11
3/8” nc X 3” hex bolt
S1711-00624-052 2
Ref. Description
Item No.
Qty
12
3/8” nc X 3-1/2” hex bolt
S1711-00628-052 6
13
5/8” nc nut
S4111-11000-052 2
14
M10 wheel nut
S4178-M010M-028 8
15
3/8” nc self-locking nut
S4186-10600-022 14
16
5/8” nc self-locking nut
S4186-11000-022 2
17
3/4” I.D. X 2” O.D. X 1/8”
flat washer
S4612-01200-022 2
18
17mm I.D. X 50mm O.D. X 3mm
flat washer
S4612-M1600-01W 4
19
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082 2
20
Snowplow adapter kit
073239
1

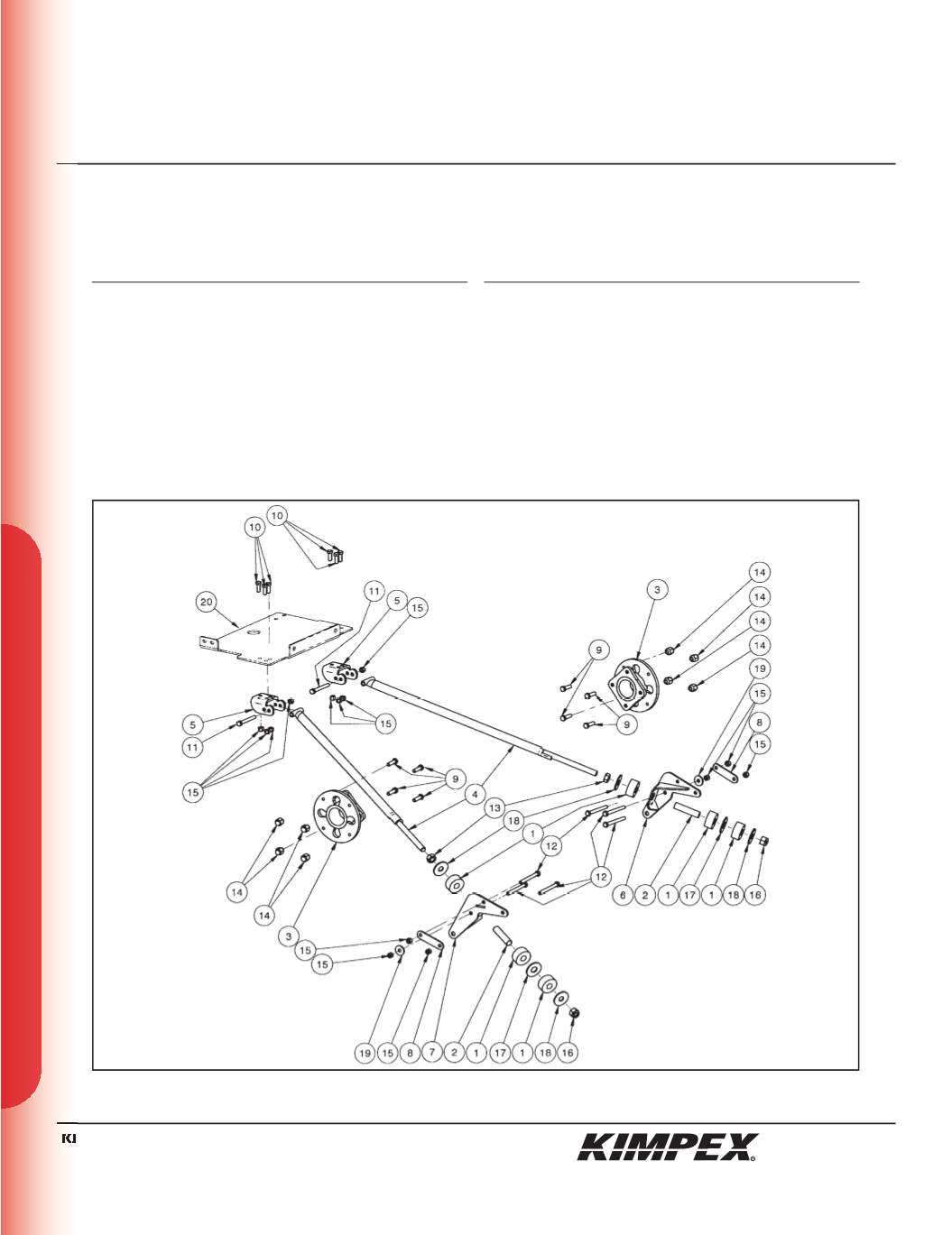

sketch B
