Commander TREX Installation of the rear anti-rotation arm onto the mount plate
1) Faster the other end of the rear anti-rotation arm
04
onto mount plate, already installed, using the hex bolt
06
, one
(1) flat washer
09
, the tightening spacer
05
, the neoprene flat washer
03
, the other flat washer
09
and the nut
08
. See
Figure 5
IMPORTANT:
The neoprene flat washer
03
must be installed between the anti-rotation arm
04
and the mount plate.
2) Repeat
step 1
for the opposite side

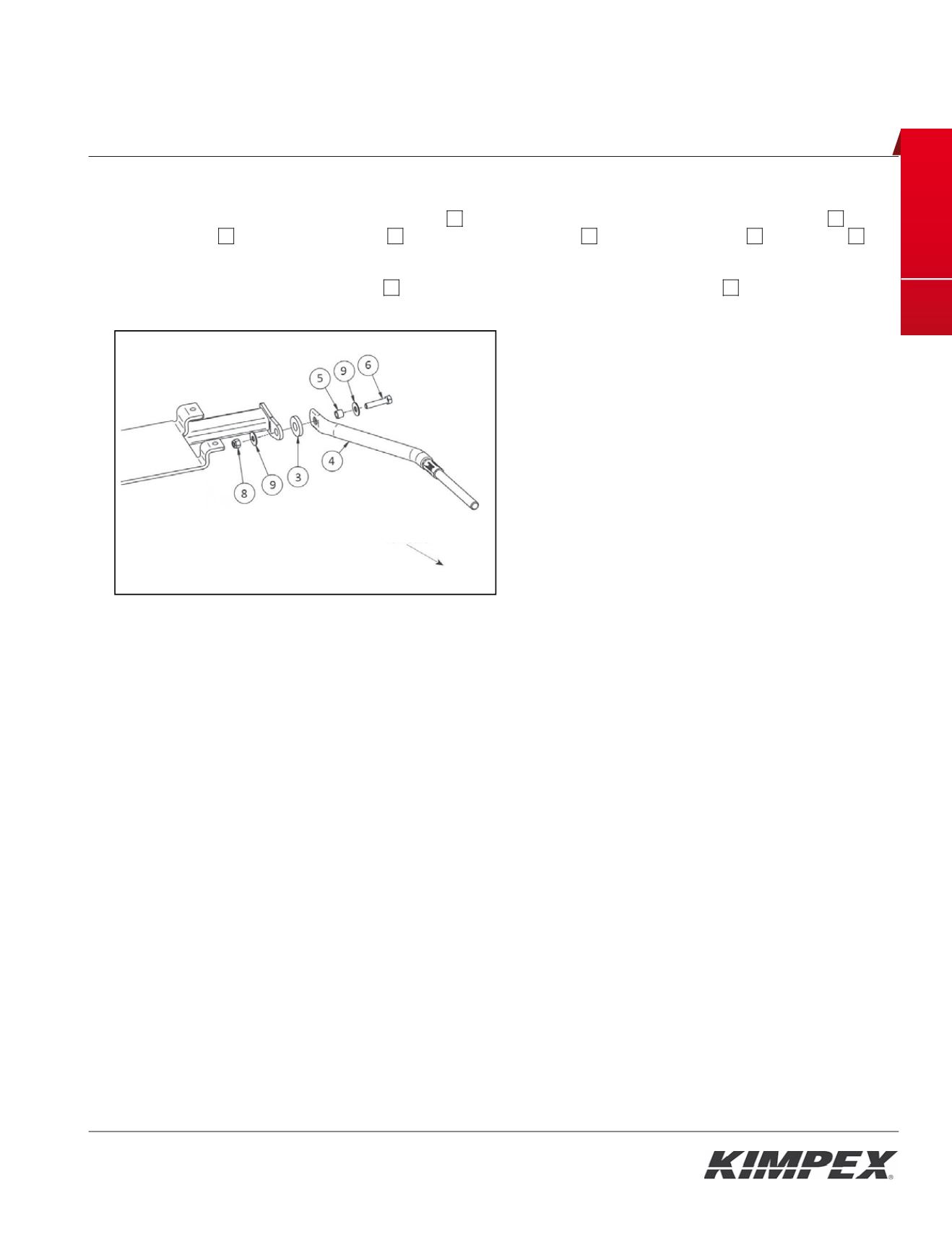

Fig. 5
Rear of
The ATV
