3/7
ATV
INSTALLATION MANUAL
ANTI-ROTATION ARMS KIT
KIMPEX N
°
375931
FOR COMMANDER WTX TRACK KIT. BRP OUTLANDER
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810490-30
•
A-2810490-30-EN
•
Lithographié au Canada / Litho’d in Canada
3
REAR ANTI-ROTATION ARM
(2810490-30)
Réf. Description
N
o
d’article
Qté Réf. Description
N
o
d’article
Qté
1
Rear-right anti-rot. arm bracket
2810405-3-3000
1
9
3/8" flat washer yellow ZP
S4612-00600-0S1
2
Rear-left anti-rot. arm bracket
2810405-4-1000
1
10
3/8" fender washer
S4614-00600-082
1
2
Rear hardware set
7810182-1
1
A
5/8"-11 Cl. 5 hex. nut
S4111-11000-052
1
3
Neoprene flat washer
7810304-2000
1
B
50mm DE x 17mm DI x 3mm
Flat washer
S4612-M1600-01W
2
4
Rear anti-rotation tube welded
7810304-40-1000
1
C
Steel slider sleeve
2510039-3-20-2000
1
5
9/16" DE x 0.3965" DI x 0.44"
Tightening spacer
Q2212-10082
1
D
Rubber bushing
2510039-1-30-6000
3
6
3/8"-16 x 1-3/4" hex. bolt
S1711-00614-022
1
E
51mm DE x 19mm DI x 3mm
Flat washer
S4612-01200-022
1
7
3/8"-16 x 3-3/4" hex bolt
S1711-00630-052
1
F
5/8"-11 Nylon nut
S4186-11000-022
1
8
3/8"-16 Nylon nut
S4186-10600-022
2

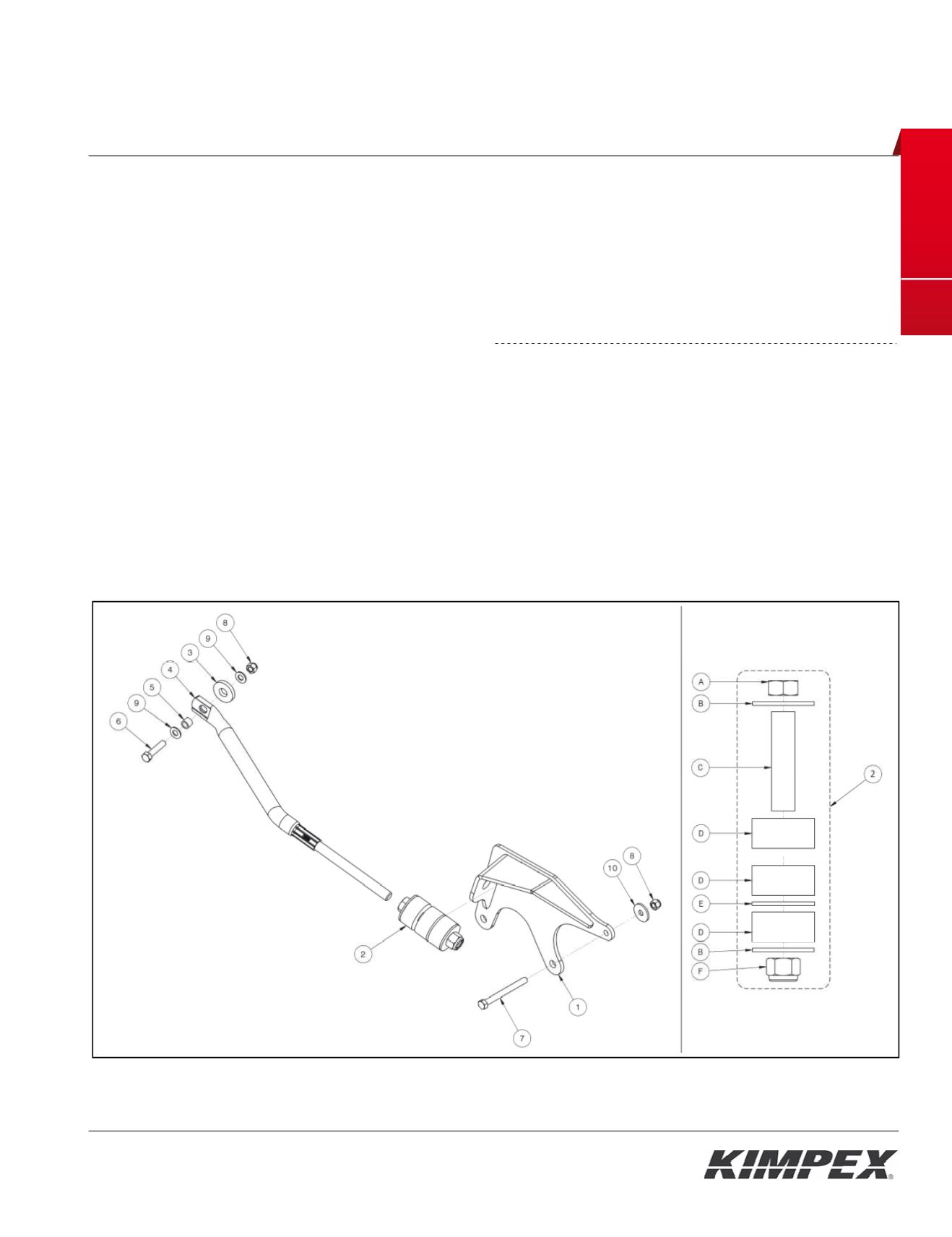

Fig. 2
