INSTALLATION MANUAL
ANTI-ROTATION ARMS KIT
KIMPEX N
°
375931
FOR COMMANDER WTX TRACK KIT. BRP OUTLANDER
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810490-30
•
A-2810490-30-EN
6
Rear anti-rotation arm installation
ATTENTION
: Installation of the anti-rotation arm must be done before the installation of the track system on the
vehicle.
1) Screw the nut
A
onto the threaded part of the anti-rotation arm
04
.
2) Install the flat washer
B
and the steel slider sleeve
C
onto the threaded part of the anti-rotation arm
04
.
3) Install the rubber bushing
D
over the steel slider sleeve C
4) Slide the anti-rotation arm assembly into the hole of the rear right anti-rotation arm bracket (See
figure 4A
).
5) Install the rubber bushing
D
, the flat washer
E
and the other rubber bushing
D
over the steel slider sleeve
C.
(See
figure 4B
).
6) Install the other flat washer
B
onto the threaded part of the ant-rotation arm
04
7) Screw the nylon nut
F
onto the threaded part of the anti-rotation arm
04
8) Repeat
steps 1
to
7
for the opposite side.

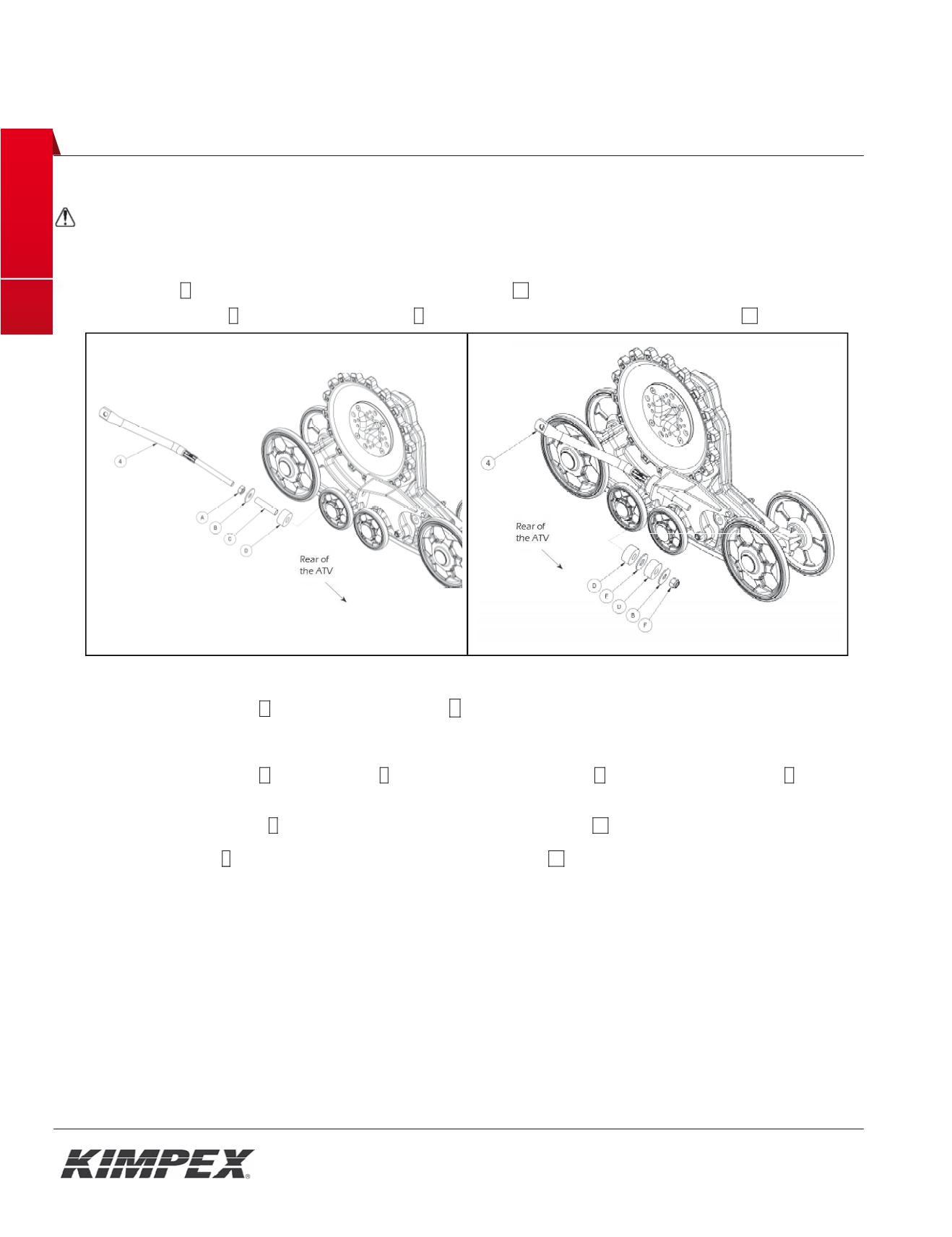

A
Fig. 4
B
