ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 374021
For "Commander Wide Track" and " Commander trek HD" Track kit
Arctic Cat Prowler 1000
REAR A-ARM BRACKET INSTALLATION
(see sketch H)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode and the transmission in
neutral, and block the wheels.
1)
Raise the rear of the vehicle off the ground and remove the
wheels.
WARNING :
When the vehicle is raised, make sure that
it is properly secured/supported to prevent it from
accidentally falling during the installation of the A-arm
brackets. If not properly secured/supported, serious
physical injury could occur.
2)
Remove the rear left CV shield. Do not discard. They will be
reinstalled later.
3)
Install the
3/8” nc X 1-1/4”
carriage bolt (#
10
) onto the rear A-arm
clamping plate (#
5
). Position the rear A-arm clamping plate (#
5
)
and the carriage bolt (#
10
) between the two reinforcements of
the rear lower A-arm.
4)
Place the rear left A-arm bracket (#
6
) below the rear lower A-arm
so that the two parts fit snugly and fasten it using
(2) 3/8” nc X
2-1/2”
carriage bolts (#
11
), a flat washer (#
3
), and
(2) 3/8” nc
self-
locking nuts (#
14
).
5)
Install a
3/8” nc
self-locking nut (#
14
) onto the
3/8” nc X 1-1/4”
carriage bolt (#
10
) installed in
step 3
. Torque to 20 ft-lbs.
IMPORTANT :
Tighten in a manner not to permanently
deform the assembly.
6)
Repeat
steps 2
to
5
for the opposite side.

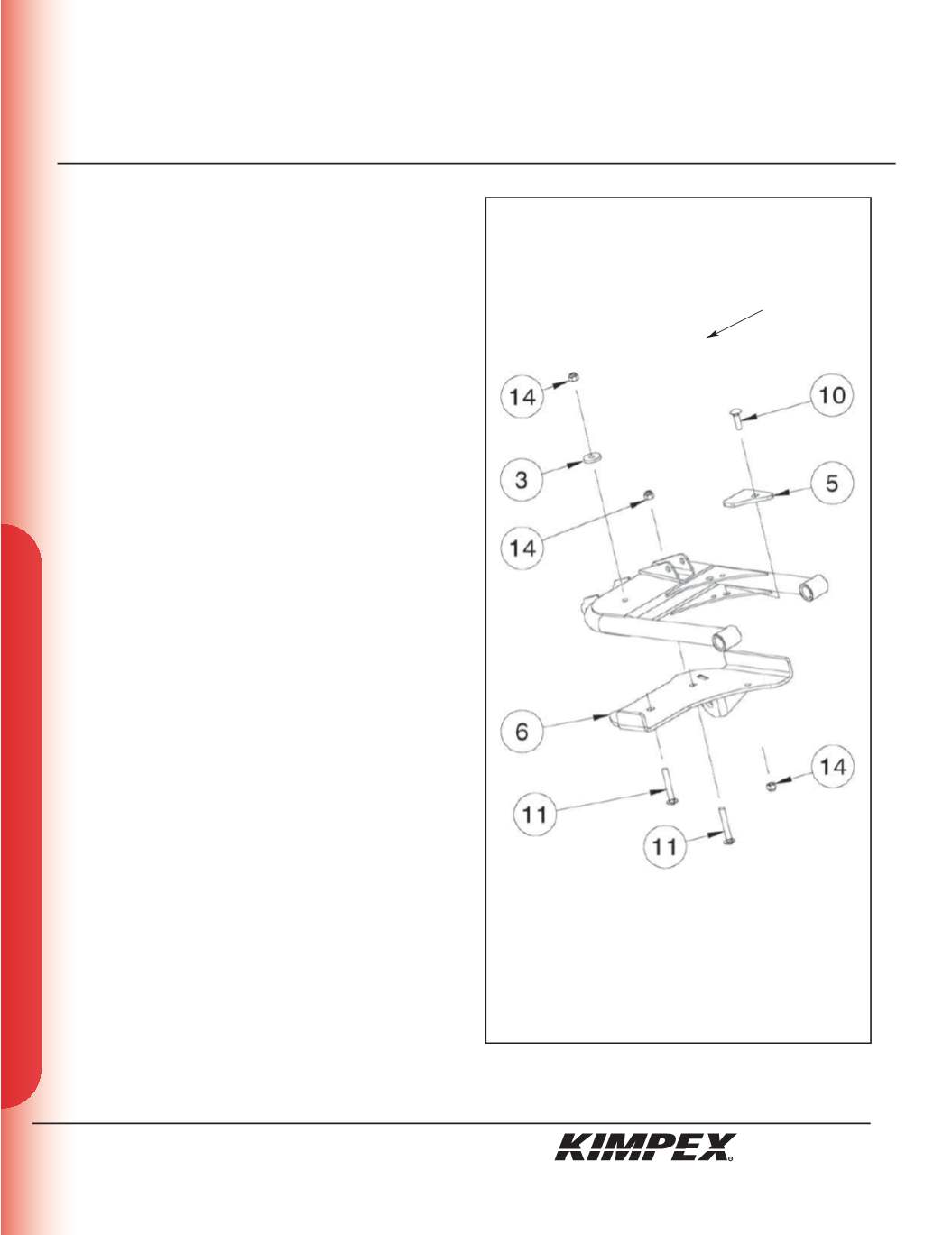

sketch H
LEFT
REAR VIEW
Rear of the ATV
