ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 374021
For "Commander Wide Track" and " Commander trek HD" Track kit
Arctic Cat Prowler 1000
FRONT A-ARM BRACKET INSTALLATION
(see sketch E)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode and the transmission in
neutral, and block the wheels.
1)
Raise the front of the vehicle off the ground and remove the
wheels.
WARNING :
When the vehicle is raised, make sure that
it is properly secured/supported to prevent it from
accidentally falling during the installation of the A-arm
brackets. If not properly secured/supported, serious
physical injury could occur.
2)
Remove the front left CV shield. Do not discard. They will be
reinstalled later.
3)
Insert the
1/2” nc X 3”
carriage bolt (#
15
) into the hole intended
in the front left A-arm bracket (#
9
).
4)
Install the front left A-arm bracket (#
9
) under the lower front
A-arm so that the two parts fit snugly.
5)
Install the front A-arm clamping plate (#
8
) above the lower front
A-arm and fasten it to the A-arm bracket (#
9
) using the
(4)
3/8” nc X 2”
carriage bolts (#
14
), the
(4) 3/8” dia
flat washers (#
22
),
and the
(4) 3/8” nc
self-locking nuts (#
19
).
Torque to 20 ft-lbs.
IMPORTANT :
Tighten in a manner not to permanently
deform the assembly.
6)
Repeat
steps 2
to
5
for the opposite side.

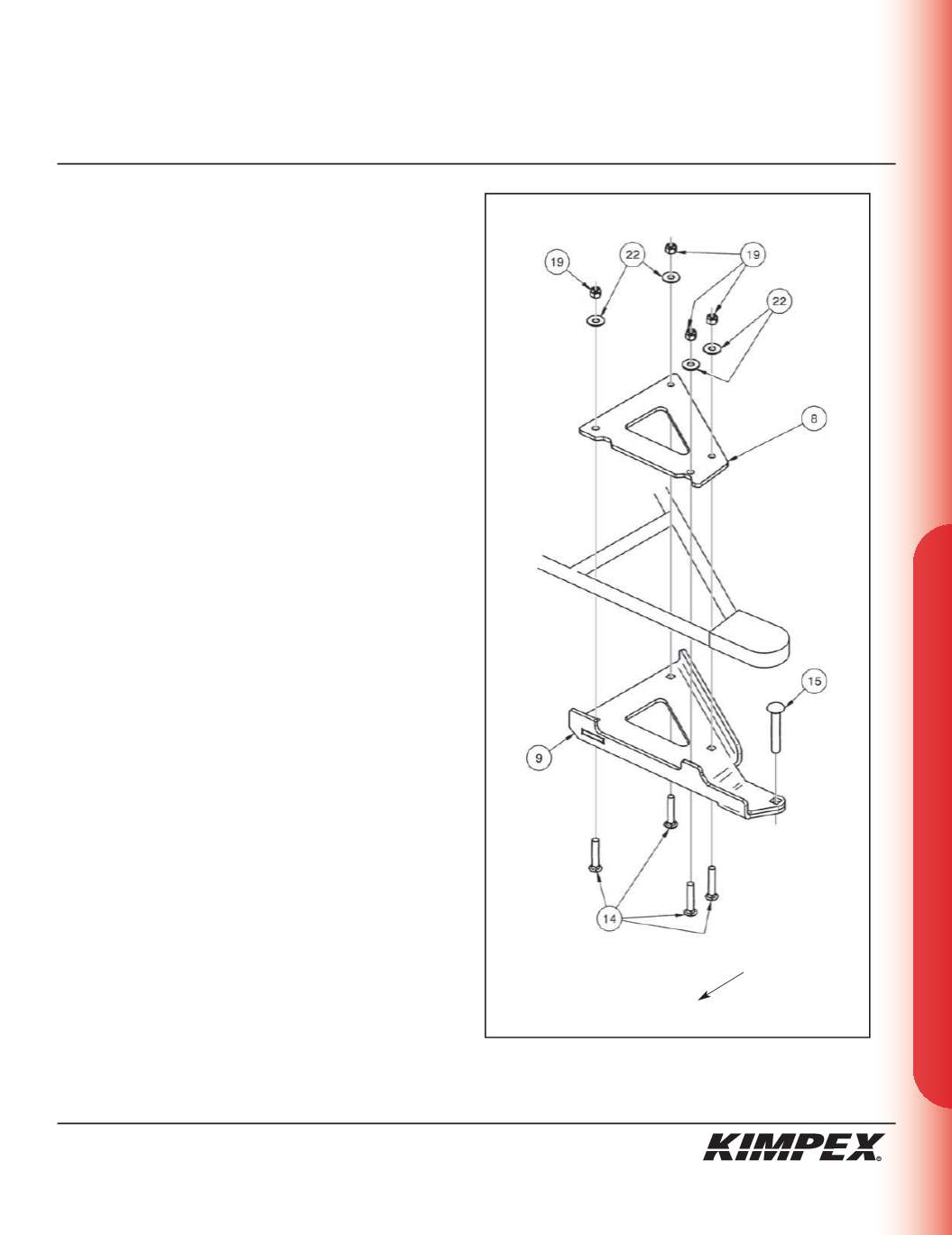

sketch E
LEFT
FRONT VIEW
Front of the ATV
