ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 374020
For "Commander Wide Track" and " Commander trek HD" Track kit
Arctic Cat Prowler
Rear of the ATV
REAR A-ARM BRACKET INSTALLATION
(see sketch H)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode and the transmission in
neutral, and block the wheels.
1)
Raise the rear of the vehicle off the ground and remove the
wheels.
WARNING :
When the vehicle is raised, make sure that
it is properly secured/supported to prevent it from
accidentally falling during the installation of the A-arm
brackets. If not properly secured/supported, serious
physical injury could occur.
2)
Remove the rear left CV shield. Do not discard. They will be
reinstalled later.
3)
Place the rear left A-arm bracket (#
6
) below the rear lower A-arm
so that the two parts fit snugly.
4)
Install the rear A-arm clamping plate (#
5
) above the lower front
A-arm and fasten it to the A-arm bracket (#
6
) using the
(4)
3/8” nc X 2-1/4”
carriage bolts (#
9
), the
(4) 3/8” dia
flat washers (#
14
),
and the
(4) 3/8” nc
self-locking nuts (#
12
). Torque to 20 ft-lbs.
IMPORTANT :
Tighten in a manner not to permanently
deform the assembly.
5)
Repeat
steps 2
to
4
for the opposite side.

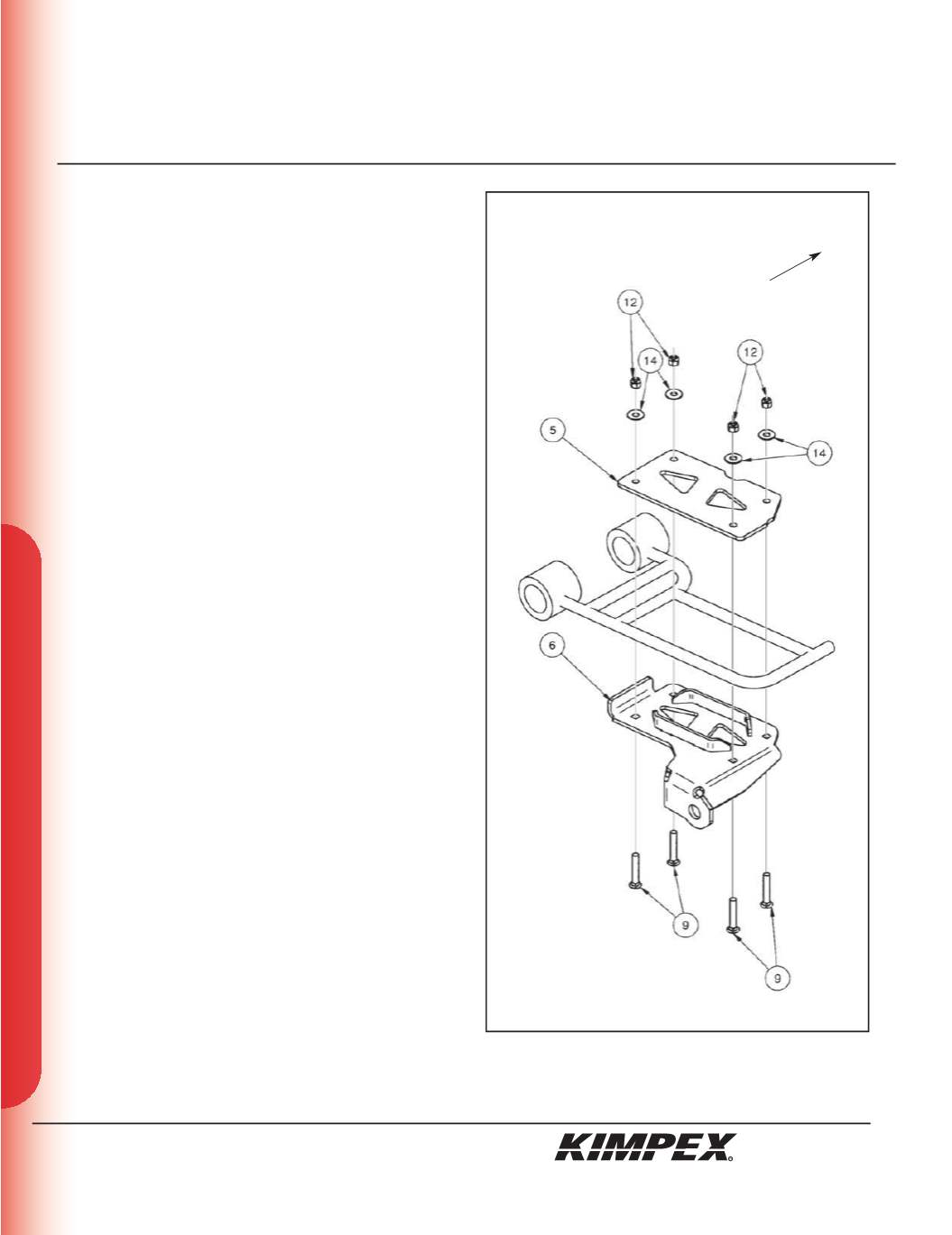

sketch H
LEFT
REAR VIEW
